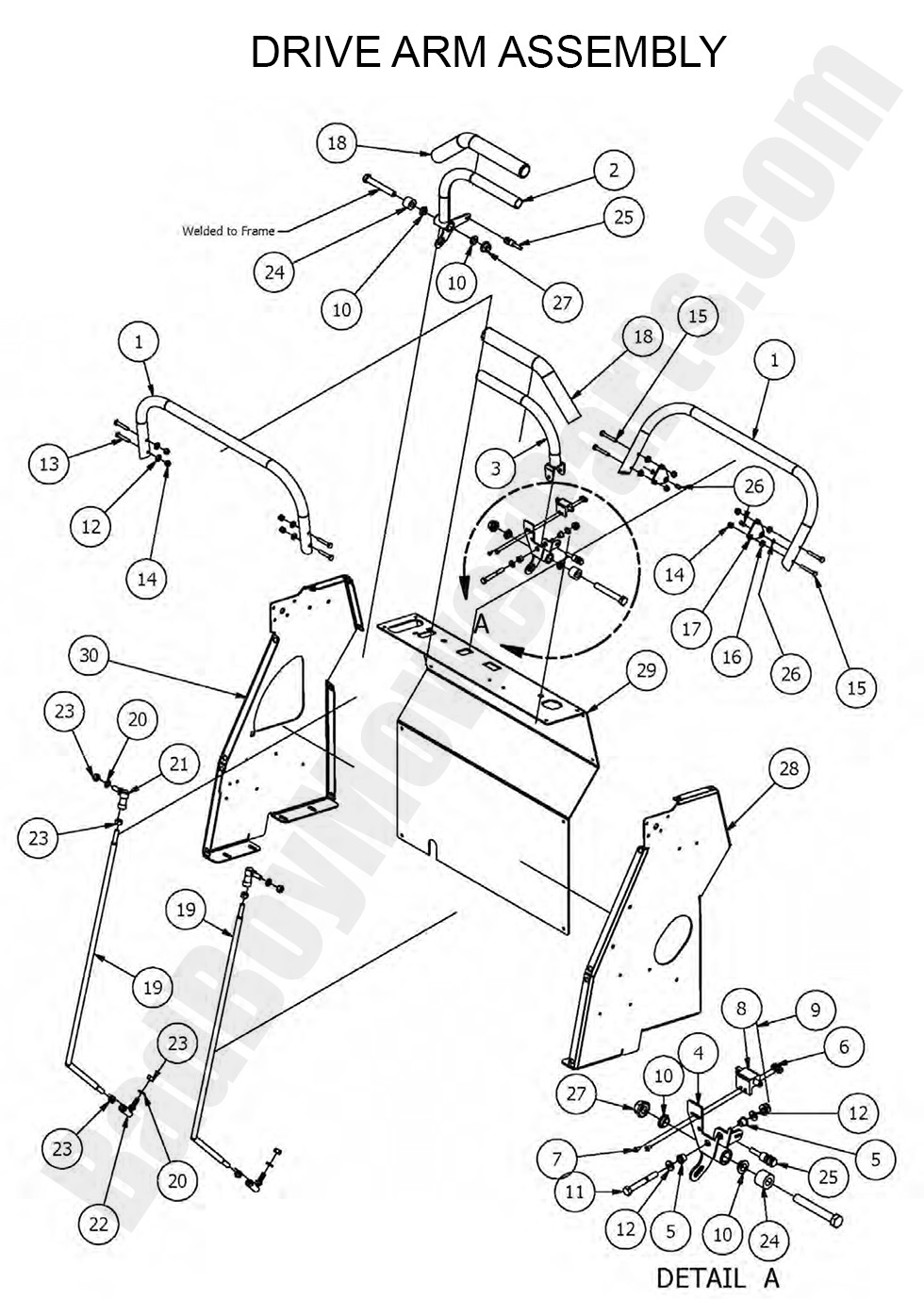

2017 Stand-On - Drive Arm Assembly

2017 Stand-On - Drive Arm Assembly

The 2017 Stand-On Drive Arm Assembly is essential for precise control and smooth maneuverability while mowing. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including hydraulic drive arms, bushings, pivot brackets, and steering linkages to ensure responsive handling. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct drive arm components for seamless installation. Routine maintenance prevents misalignment, enhances steering response, and extends mower lifespan. We also offer Bad Boy Parts Online, making it simple to order replacement parts when needed. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Stand-On Drive Arm Assembly is now more budget-friendly. Order today to ensure smooth handling and reliable performance for your stand-on mower.

Bad Boy Mower Parts Lookup

2017 Stand-On - Drive Arm Assembly
  Position Number SKU Product Title Price
2 031-7130-17 031-7130-17 - 2017 Left Steering Handle Assembly
$42.75

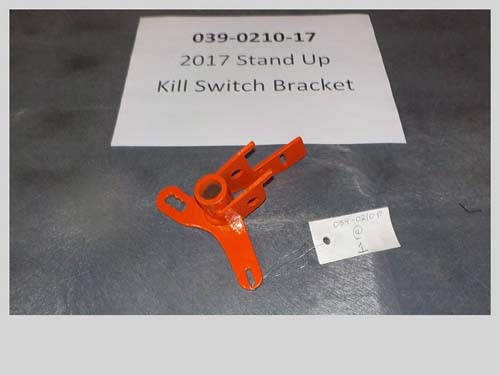

4 039-0210-17 039-0210-17 - 2017 Stand Up Kill Switch Bracket Assembly for Steering Handle
$42.75
5 032-5002-00 032-5002-00 - Stand On Flange Bushing-Steering Arms-SF-1014-6
$2.99
6 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
7 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
8 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
9 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
11 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
12 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
13 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 Hex Bolt
$2.99
14 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
15 018-0018-00 018-0018-00 - 1/4-20x1 3/4" Hex Bolt
$2.99
16 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
17 039-0203-17 039-0203-17 - 2017 Neutral Safety Tab Stand On Model
$5.49
18 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
19 035-1000-00 035-1000-00 - 2012-2017 Stand-On Push Rod
$28.32
20 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
21 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
22 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
23 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
24 025-0012-00 025-0012-00 - Steering Arm Spacer-Stand On
$7.28
25 086-0015-00 086-0015-00 - Safety Switch Harness
$70.27
26 077-1000-00 077-1000-00 - Magnet-Steering Arm
$14.97
27 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
