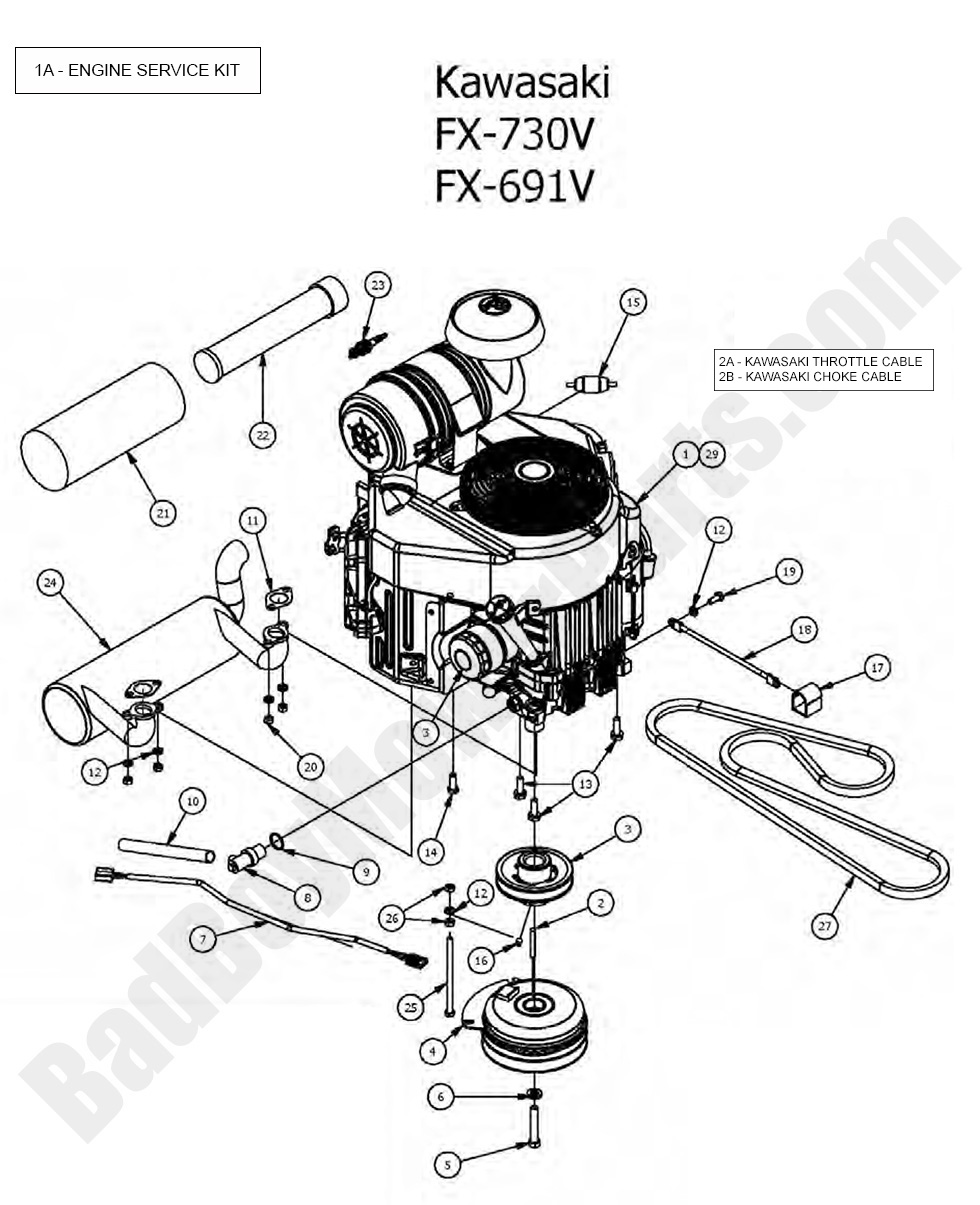

2017 Stand-On - Engine - Kawasaki FX691/FX730

2017 Stand-On - Engine - Kawasaki FX691/FX730

The 2017 Stand-On Engine - Kawasaki FX691/FX730 provides top-tier power and efficiency for demanding mowing tasks. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including fuel injectors, air filters, cooling fans, oil filters, and ignition coils to maintain peak engine performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability and reliability. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct Kawasaki FX691/FX730 engine components for easy installation. Routine engine maintenance helps prevent overheating, enhances fuel economy, and extends operational longevity. We also provide Bad Boy Parts Online, making it simple to find and order necessary engine components. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Stand-On Engine - Kawasaki FX691/FX730 is now more affordable. Order today to keep your mower’s engine running efficiently with maximum power.

Bad Boy Mower Parts Lookup

2017 Stand-On - Engine - Kawasaki FX691/FX730
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
1 015-0730-00 015-0730-00 - FX730 Kawasaki Engine
$2599.00
2A 055-8021-00 055-8021-00 - 52" Throttle Cable (See Models Used On - Engine Diagrams For More Details)
$45.29
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
3A 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
4 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
5 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
6 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
7 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
8 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$42.58
9 015-5403-00 015-5403-00 - O Ring for Oil Drain - Kawasaki
$7.28
10 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
11 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
12 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
13 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
14 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
15 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
16 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
17 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
18 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
19 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
20 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
21 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
22 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
23 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
24 015-0066-00 015-0066-00 - Stand On Exhaust
$145.95
25 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
26 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
27 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
29 015-0691-00 015-0691-00 - FX691 Kawasaki Compact Outlaw
$2599.00
