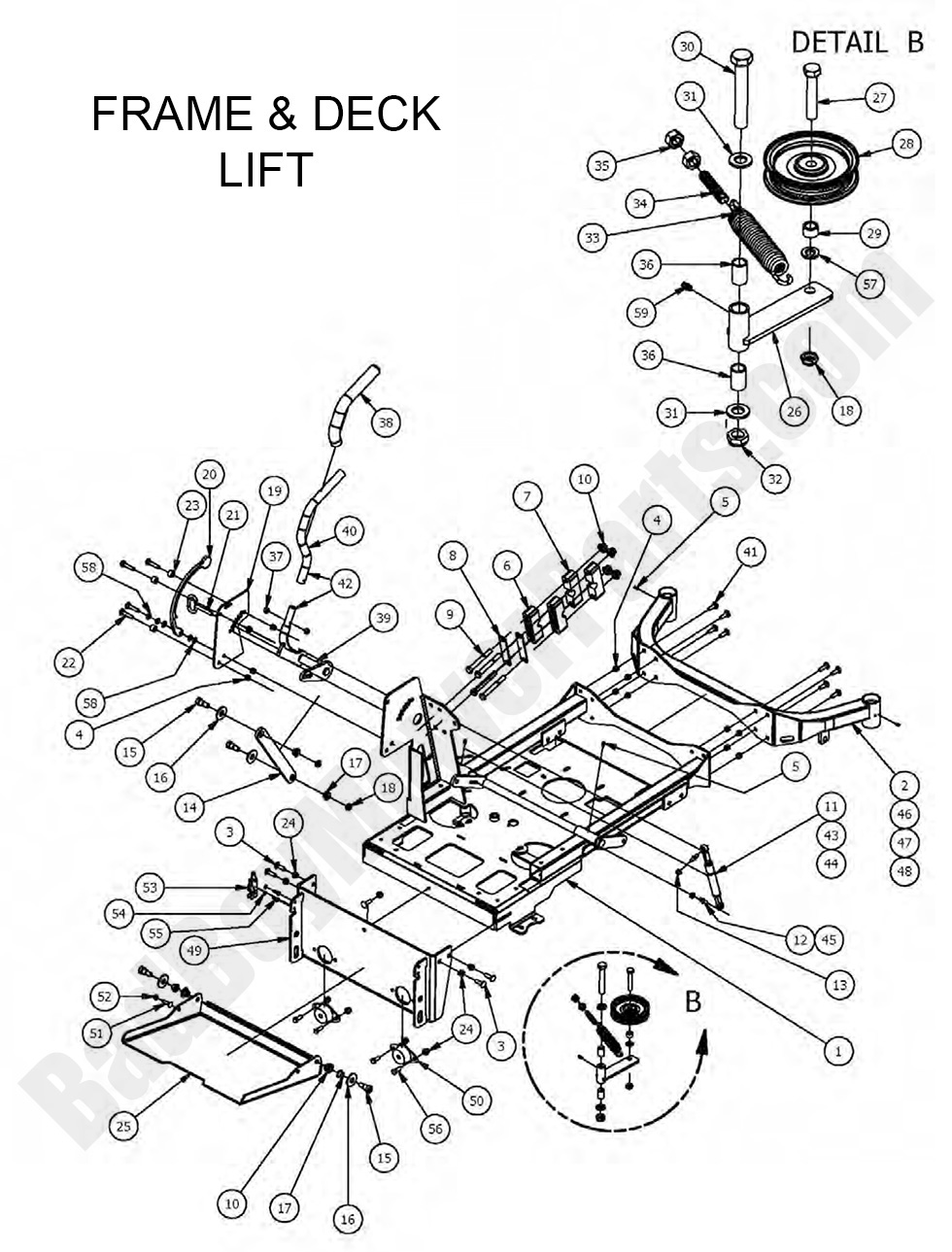

2017 Stand-On - Frame & Deck Lift

2017 Stand-On - Frame & Deck Lift

The 2017 Stand-On Frame & Deck Lift provides the structural integrity and height adjustment necessary for precision mowing. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including reinforced frame components, lift arms, hydraulic deck height adjusters, and mounting brackets to ensure durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for longevity. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct frame and deck lift components for hassle-free installation. Routine maintenance prevents structural wear, improves deck stability, and enhances cutting performance. We also stock Bad Boy Parts Online, making it easy to order necessary replacement parts. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Stand-On Frame & Deck Lift is now more budget-friendly. Order today to keep your mower’s frame and deck lift system operating at peak efficiency.

Bad Boy Mower Parts Lookup

2017 Stand-On - Frame & Deck Lift
  Position Number SKU Product Title Price
1 070-5220-17 070-5220-17 - 2017 Stand-On Frame
$1149.99
2 070-9048-00 070-9048-00 - 48" Stand On Front End
$129.99
3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
4 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
7 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
8A 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
8 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
9 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
10 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
11 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
12 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
13 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
14 028-5000-00 028-5000-00 - Stand On Flat Linkage Bar
$12.83
15 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
16 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
17 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
18 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
19 026-5050-00 026-5050-00 - Stand On Adj Plate Bolt on Plate (See Models Used On For Details)
$16.04
20 031-0090-00 031-0090-00 - 2015-2017 Stand On Deck Lever Lock
$12.83
21 040-4075-00 040-4075-00 - Pin and Lanyard for Stand-On
$12.48
22 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
23 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
24 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
26 039-5949-00 039-5949-00 - Stand On Pump Idler Bracket
$37.47
27 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
28 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
29 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
30 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
31 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
32 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
33 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
34 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
35 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
36 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
37 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
38 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
41 018-5045-00 018-5045-00 - 3/8-16 X 1-1/8 Carriage Bolt
$2.99
43 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
44 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
45 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
46 070-9054-00 070-9054-00 - 54" Stand On Front End 2015 Assembly
$129.99
47 070-9061-00 070-9061-00 - 61" Stand On Front End 2015 Assembly
$129.99
48 070-9036-00 070-9036-00 - 36" Stand On Front End
$129.99
50 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
51 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
52 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
53 052-1000-00 052-1000-00 - Latch-Stand On
$32.09
54 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
55 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
56 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
57 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
58 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
59 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
