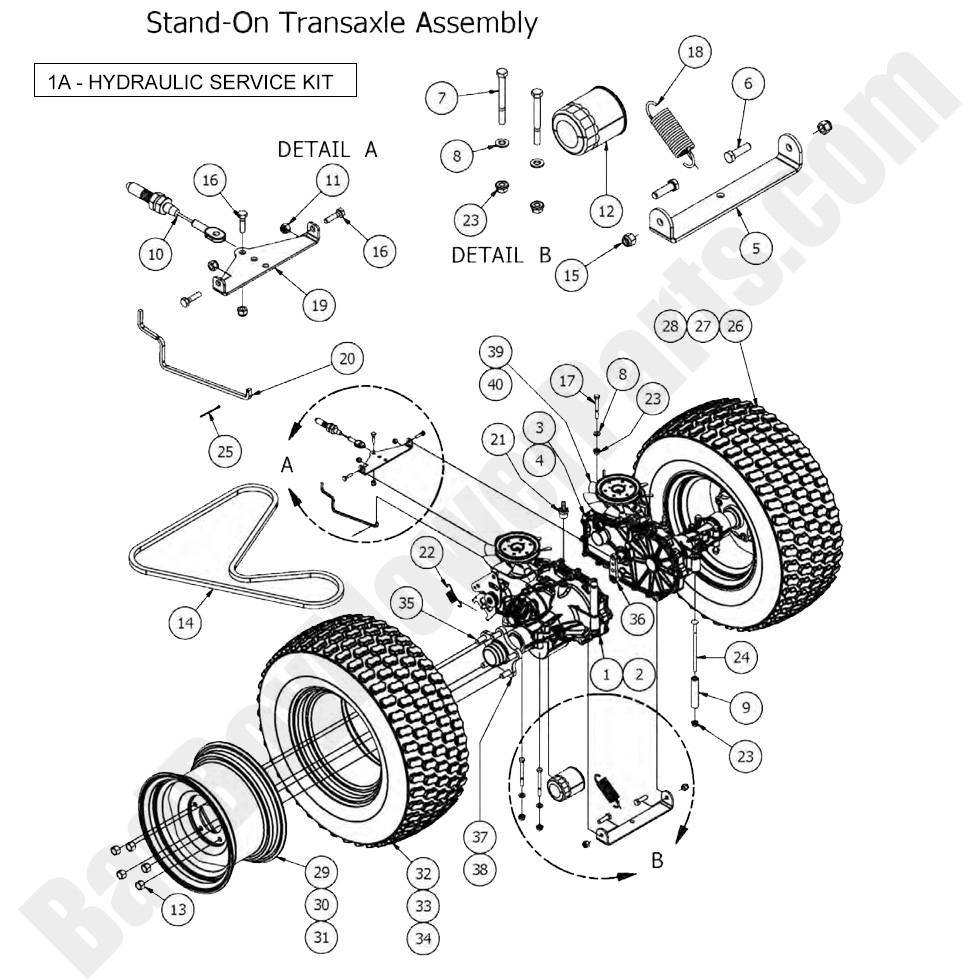

2017 Stand-On - Transaxle Assembly

2017 Stand-On - Transaxle Assembly

The 2017 Stand-On Transaxle Assembly is responsible for delivering power to the wheels, ensuring smooth acceleration and maneuverability. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including hydro pumps, wheel motors, transaxle housings, and seals to maintain peak performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct transaxle components for seamless installation. Routine transaxle maintenance prevents power loss, enhances smooth movement, and extends the life of critical drivetrain components. We also stock Bad Boy Parts Online, making ordering replacement transaxle parts simple and efficient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Stand-On Transaxle Assembly is now more budget-friendly. Order today to ensure smooth power transfer and long-lasting mower performance.

Bad Boy Mower Parts Lookup

2017 Stand-On - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99
2 050-2081-00 050-2081-00 - Left ZT Transaxle ZL-KCEE-3BKC-1RXX (obsolete)
use part #050-2096-01
$729.99
3 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-02
$819.99
4 050-2080-00 050-2080-00 - Right ZT Transaxle ZL-GCEE-3BKV-1RXX - Obsolete - USE PART #050-2095-01 (obsolete)
use part #050-2095-01
$729.99
5 028-4802-00 028-4802-00 - Crossover Bar 2016-2017 (See Models Used On For Detail) (obsolete)
use part #028-4801-00
$28.10
6 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
7 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
8 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
9 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
10 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
11 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
12 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
13 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
14 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
15 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
16 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
17 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
18 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
19 039-0212-00 039-0212-00 - Brake Bracket (See Models Used On For Details)
$25.54
20 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28
21 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
22 034-1050-00 034-1050-00 - Transaxle Spring for Stand On (See Models Used On For Details)
$7.28
23 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
25 040-2025-00 040-2025-00 - Cotter Pin-Brake Bar on MZ
$2.99
26 022-5460-00 022-5460-00 - 23 x 10.50 -12 Assembly w/Negative Offset Wheel 54"CZT (One Tire & Rim Assy)
$248.99
27 022-3000-00 022-3000-00 - 23x8.50-12 Tire Assembly (obsolete)
use part #022-3010-00
$247.99
28 022-8020-00 022-8020-00 - 21x7-10 Assy-36" Stand-On
$158.99
29 022-7061-00 022-7061-00 - 12x8.5 Orange Wheel - Solid (One Rim Only)
$182.99
30 022-3026-00 022-3026-00 - 12x7 Wheel-23 x 8.50 - 12 Tire
$74.89
31 022-8022-00 022-8022-00 - 10" Wheel Only-36" Stand On & Walk Behind
$73.83
32 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$182.99
33 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$236.99
34 022-8021-00 022-8021-00 - 21x7-10 Tire Only-36" Stand On
$159.99
35 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
36 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
37 050-2077-00 050-2077-00 - 5 Bolt Hub Kit (See Models Used On For Details)
$102.71
38 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
39 050-2072-00 050-2072-00 - Fan/Pulley Kit
$63.96
40 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
