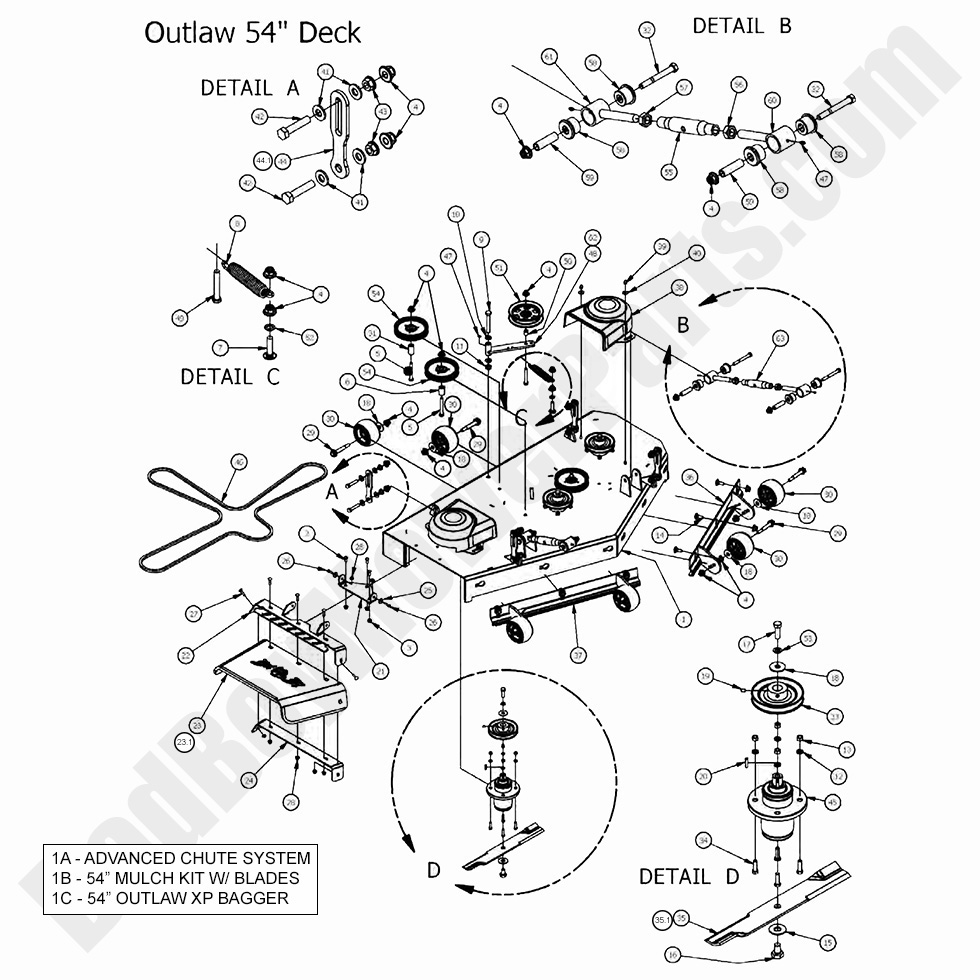

2017 Outlaw XP - 54" Deck Assembly

2017 Outlaw XP - 54" Deck Assembly

The 2017 Outlaw XP 54" Deck Assembly is designed for superior cutting precision and durability. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including deck spindles, cutting blades, tensioner belts, and pulley systems to ensure smooth mowing performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for longevity. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct deck components for easy installation. Regular deck maintenance ensures even cutting, prevents excessive wear, and extends the life of cutting components. We also stock Bad Boy Parts Online, making it quick and simple to order essential deck parts. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Outlaw XP 54" Deck Assembly is now more budget-friendly. Order today to keep your mower deck performing at its best, delivering precise, clean cuts with long-lasting reliability.

Bad Boy Mower Parts Lookup

2017 Outlaw XP - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6007-00 088-6007-00 - Advanced Chute System for 2010-2018 54" Outlaw Models
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 060-5550-00 060-5550-00 - 2015-2018 54" Outlaw DeckShell/Hangs with Brackets
$1099.99
2 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
6 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
7 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
8 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
15 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
20 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
21 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
22 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
23.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
23 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
24 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
25 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
26 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
27 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
28 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
29 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
30A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
30 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
31 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
32 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
33 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
34 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
35.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
35 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
36 060-5520-00 060-5520-00 - Adjustable Deck Front Left (See Models Used On For Details)
$85.99
37 060-5530-00 060-5530-00 - Adjustable Deck Front Right (See Models Used On For Details)
$85.99
38 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
39 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
40 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
41 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
42 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
43 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
44.1 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
44 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
45 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
46 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
47 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
48 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
49 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
50 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
51 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
52 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
53 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
54 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
55 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
56 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
57 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
58 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
59 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
60 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
61 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
62 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
63 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
