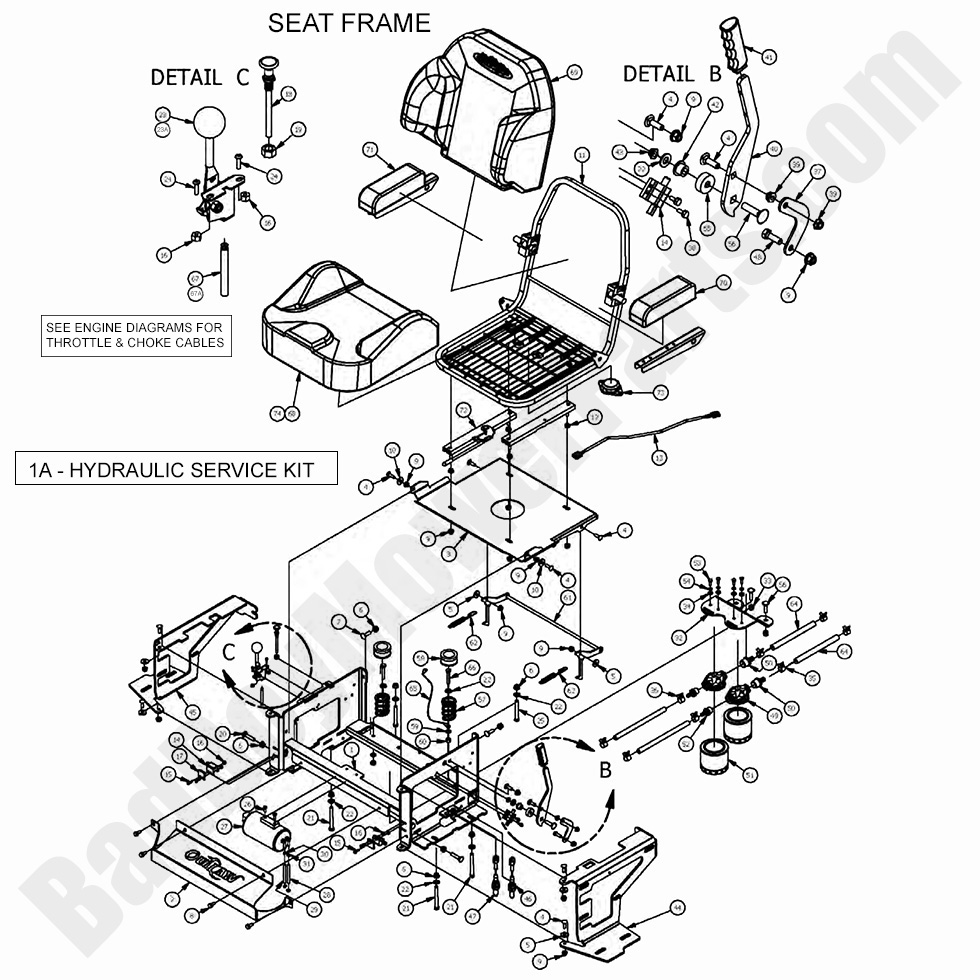

2017 Outlaw XP - Seat Frame

2017 Outlaw XP - Seat Frame

The 2017 Outlaw XP Seat Frame provides structural support and stability for the operator, ensuring a comfortable and secure mowing experience. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including reinforced seat frames, mounting brackets, shock absorbers, and seat cushions for maximum durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for long-lasting comfort and reliability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct seat frame components for hassle-free installation. Routine seat frame maintenance enhances operator comfort, prevents shifting, and extends the lifespan of the mower’s seating system. We also stock Bad Boy Parts Online, making ordering replacement parts fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Outlaw XP Seat Frame is now more budget-friendly. Order today to improve mowing comfort and enhance long-term stability.

Bad Boy Mower Parts Lookup

2017 Outlaw XP - Seat Frame
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 080-5116-17 080-5116-17 - 2017 Outlaw Seat Bracket
$399.99
2 014-2100-00 014-2100-00 - Outlaw Cooler Cover
$21.39
3 026-2016-00 026-2016-00 -Outlaw Seat Plate (See Models Used On For Details)
$99.32
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
6 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
9 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
11 071-5060-00 071-5060-00 - 2011-2018 Outlaw Models & 2019-2020 Rebel Seat
$699.99
12 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
13 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
14 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
15 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
16 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
17 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
19 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
20 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
21 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
22 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
23A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
23 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
24 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
25 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
26 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
27 067-0020-00 067-0020-00 - Carbon Canister
$62.40
28 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
29 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
30 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
31 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
33 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
34 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
35 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
36 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
37 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72
38 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
39 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
40 069-1000-00 069-1000-00 - Brake Handle Cam Lever
$7.28
41 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
42 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
43 013-0009-00 013-0009-00 - 3/8-16 Hex Flange Top Lock Nut
$2.99
44 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
45 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
46 064-9001-00 064-9001-00 - 2015-2018 XP Brake Cable-57.5"
$51.47
47 064-9000-00 064-9000-00 - 2015-2018 Outlaw XP Brake Cable-33"
$51.47
48 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
49 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
50 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
51 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
52 024-5342-00 024-5342-00 - Fitting 1/2 x 3/8 Barb 206-108
$7.95
53 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
54 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
55 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
56 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
57 034-8045-00 034-8045-00 - Seat Spring
$20.49
58 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
59 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
60 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
61 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
62 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
64 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
65 064-8081-00 064-8081-00 - Seat Cable
$15.60
66 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
68 071-5063-00 071-5063-00 - Seat Cover for 071-5060-00 for the 2016 - 2018 Outlaw, Outlaw/XP, 2019-2021 Rebel
$134.99
69 071-5064-00 071-5064-00 - Back Cover for 071-5060-00 Used on 2016- 2018 Outlaw, Outlaw/XP, 2019 - 2021 Rebel
$160.49
70 071-5062-00 071-5062-00 - Pair of Arm Pads for the 071-5060-00 2015 Outlaw Seat
$79.58
71 071-5061-00 071-5061-00 - Pair of Armrest for the 071-5060-00 2016 - 2018 Outlaw, Outlaw/XP, 2019-2021 Rebel
$119.99
72 071-5015-00 071-5015-00 - Seat Rails
$93.69
73 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
74 071-2013-00 071-2013-00 - Seat Belt for All Models w/Hardware
$119.36
