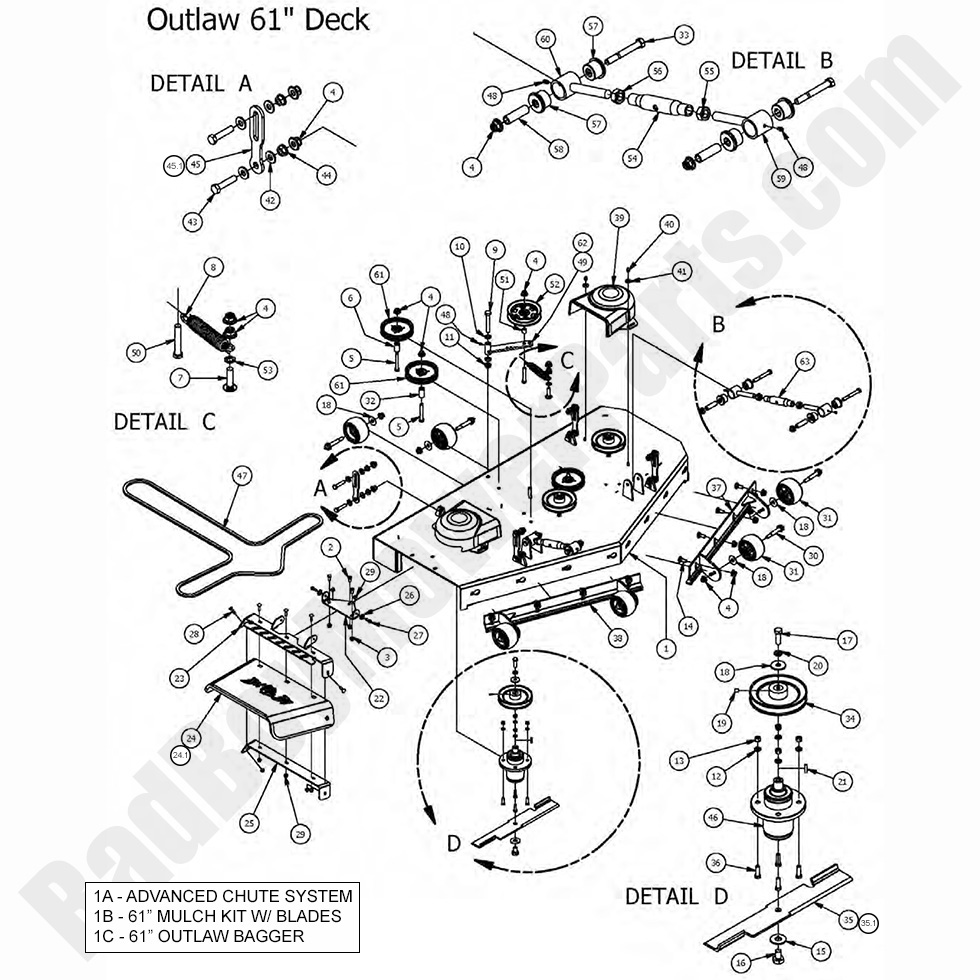

2017 Outlaw & Outlaw Extreme - 61" Deck Assembly

2017 Outlaw & Outlaw Extreme - 61" Deck Assembly

The 2017 Outlaw & Outlaw Extreme 61" Deck Assembly is designed for large-scale mowing with enhanced cutting efficiency. At BadBoyMowerParts.com, we supply top-quality Bad Boy Mower Parts, including reinforced deck spindles, heavy-duty blades, deck pulleys, and tensioner belts to ensure seamless operation. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct deck assembly parts for simple installation. Routine deck maintenance helps maintain even cutting, extends blade life, and enhances mower efficiency. We also offer Bad Boy Parts Online, making it easy to order necessary components for your deck. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Outlaw & Outlaw Extreme 61" Deck Assembly is now more cost-effective. Order today to ensure smooth, high-performance mowing results with superior durability.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0261-50 210-0261-50 - 2017-2018 61" Mulch Kit w/Blades (obsolete)
use part #210-0361-00
$318.45
1 060-6150-00 060-6150-00 - 2015-2018 Outlaw/XP and Diesel/Compact Diesel (28hp/1100CC) 61" Deck Shell
$1199.99
2 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
6 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
7 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
8 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
15 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
22 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
24.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
24 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
25 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
26 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
27 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
28 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
29 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
30 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
31A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
31 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
32 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
33 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
34 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
35.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
35 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
36 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
37 060-6220-00 060-6220-00 - 61 Adjustable Deck Front (Left Gate) (See Models Used On For Detail)
$103.99
38 060-6210-00 060-6210-00 - 61 Adjustable Deck Front (Right Gate) (See Models Used On For Detail)
$103.99
39 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
40 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
41 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
42 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
43 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
44 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
45.1 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
45 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
46 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
47 041-0178-00 041-0178-00 - B178 Deck Belt For 61" Decks (See Models Used On For Details)
$96.29
48 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
49 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
50 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
51 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
52 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
53 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
54 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
55 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
56 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
57 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
58 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
59 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
60 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
61 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
62 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
63 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
