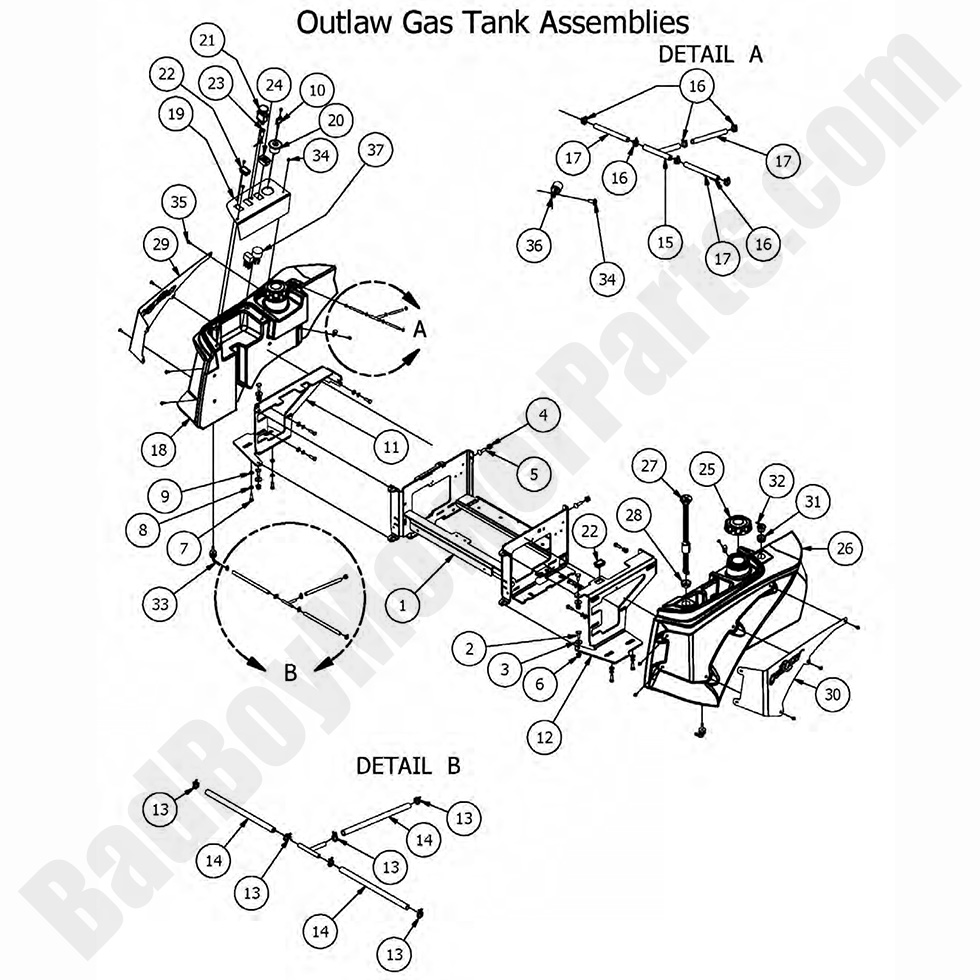

2017 Outlaw & Outlaw Extreme - Console & Fuel Tanks

2017 Outlaw & Outlaw Extreme - Console & Fuel Tanks

The 2017 Outlaw & Outlaw Extreme Console & Fuel Tanks provide essential functionality and fuel storage, ensuring smooth mower operation. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including fuel tanks, fuel caps, gas lines, and control panel accessories for superior fuel management. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for reliability. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct fuel system components for easy installation. Routine maintenance prevents leaks, ensures proper fuel delivery, and optimizes engine efficiency. We also offer Bad Boy Parts Online, making ordering replacement parts fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Outlaw & Outlaw Extreme Console & Fuel Tanks is now more cost-effective. Order today to ensure your fuel system remains in perfect working condition for efficient mowing.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme - Console & Fuel Tanks
  Position Number SKU Product Title Price
1 080-5116-00 080-5116-00 - 2016 Outlaw Seat Bracket
$399.99
2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
3 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 042-9000-00 042-9000-00 - Ignition Key
$4.06
11 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
12 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
13 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
14 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
15 073-8068-00 073-8068-00 - Fuel Line T
$9.70
16 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
17 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
18 067-1180-50 067-1180-50 - 2015-2018 Outlaw/XP Right Fuel Tank
$259.99
19 079-3360-00 079-3360-00 - 2015-2018 Outlaw/XP Control Panel
$28.39
20 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
21 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
22 018-1040-00 018-1040-00 - Light Plug
$2.99
23 089-1000-00 089-1000-00 - Oil Light
$12.63
24 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
25 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
26 067-1190-50 067-1190-50 - 2015-2018 Outlaw/XP Left Fuel Tank
$329.99
27 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
28 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
29 079-3280-00 079-3280-00 - 2015-2018 Outlaw/XP Right Tank Panel (Metal)
$26.74
30 079-3281-00 079-3281-00 - 2015-2018 Outlaw/XP Left Tank Panel (Metal)
$26.74
32 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
33 067-6055-00 067-6055-00 - Fuel Tank Hose Nipple (See Models Used On For Detail)
$26.48
34 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
35 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
36 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
37 086-2050-00 086-2050-00 - Wiring Harness 23hp-27hp Briggs and Stratton, 2011-2018 Outlaw
$363.44
