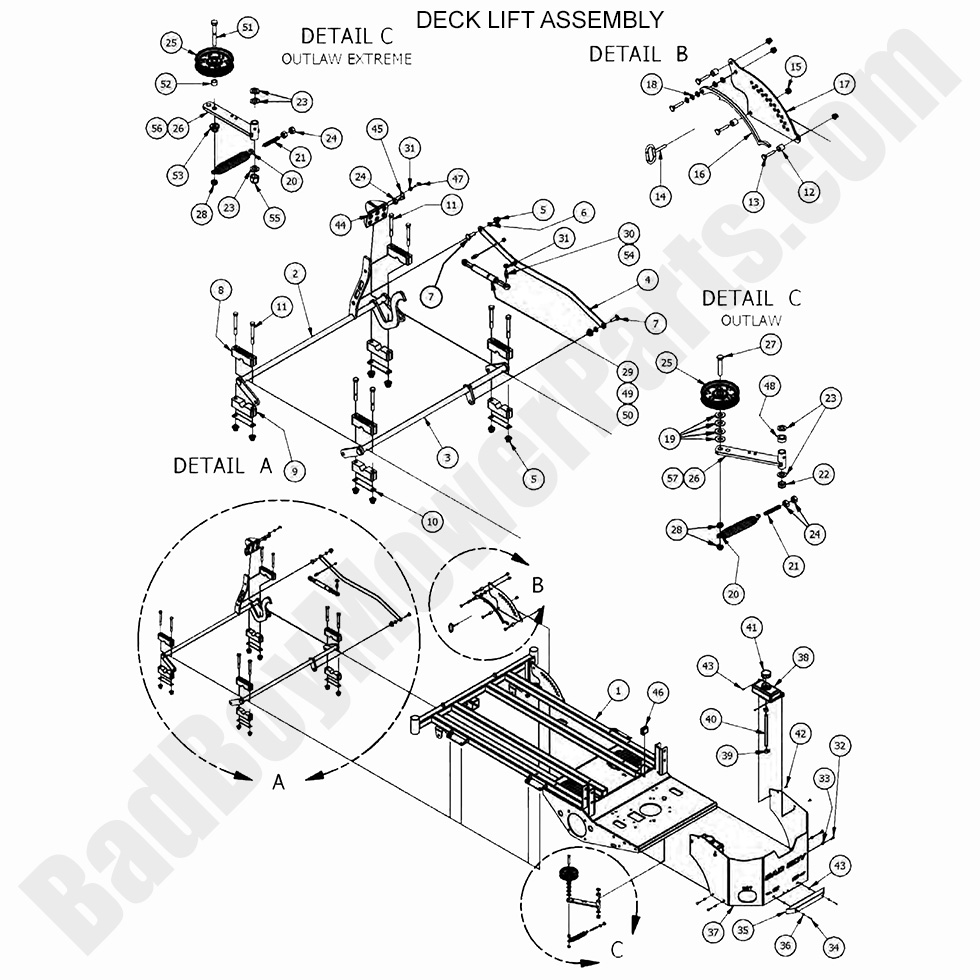

2017 Outlaw & Outlaw Extreme - Deck Lift Assembly

2017 Outlaw & Outlaw Extreme - Deck Lift Assembly

The 2017 Outlaw & Outlaw Extreme Deck Lift Assembly allows for smooth height adjustments, ensuring precision mowing. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including lift arms, hydraulic actuators, brackets, and mounting hardware to keep your deck operating efficiently. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for durability and precision. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct deck lift components for seamless installation. Routine maintenance prevents misalignment, enhances cutting precision, and extends the mower’s lifespan. We also stock Bad Boy Parts Online, making ordering replacement components quick and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Outlaw & Outlaw Extreme Deck Lift Assembly is now more cost-effective. Order today to keep your mower performing optimally with precise deck adjustments.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme - Deck Lift Assembly
  Position Number SKU Product Title Price
1 070-5370-17 070-5370-17 - 2017-2018 Outlaw/Outlaw Extreme Frame
$1299.99
2 028-6030-00 028-6030-00 - Actuator Bar (Front) (See Models Used On For Detail)
$189.99
3 028-6040-00 028-6040-00 - Actuator Bar (Rear) (See Models Used On For Detail)
$175.99
4 028-6050-00 028-6050-00 - Outlaw Deck Linkage Rod
$28.39
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 032-3000-00 032-3000-00 - Actuator Bar Bushing
$2.99
7 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
8 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
9 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
10A 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
10 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
11 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
12 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
13 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
14 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
15 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
16 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
17 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
18 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
19 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
20 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
21 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
22 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
23 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
24 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
25 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
26 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
27 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
28 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
29 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
30 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
31 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
33 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
34 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
35 029-7037-00 029-7037-00 - 14" Bumper
$42.79
36 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
37 026-2190-00 026-2190-00 - Outlaw/XP Rear Cover 36 Hp Vanguard (See Models Used On For Details)
$209.99
38 067-8085-00 067-8085-00 - Expansion Tank for Outlaw (See Models Used On For Details)
$31.22
39 072-8074-00 072-8074-00 - 5/8" Wire Clamp - Outlaw & Rebel
$4.81
40 051-9000-00 051-9000-00 - 5/8 Braided Hose Priced per Foot
$4.81
41 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
42 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
43 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
44 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
45 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
46 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
47 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
48 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
50 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
51 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
52 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
54 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
55 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
56 039-6945-03 039-6945-03 - Pump Idler Assembly
$53.45
57 039-6945-04 039-6945-04 - Pump Idler Assy-Base Outlaw
$53.45
