2017 Outlaw & Outlaw Extreme - Engine - Vanguard 810

2017 Outlaw & Outlaw Extreme - Engine - Vanguard 810

The 2017 Outlaw & Outlaw Extreme Engine - Vanguard 810 is built for high performance and fuel efficiency, making it a reliable choice for demanding mowing tasks. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including oil filters, air filters, cooling fans, fuel lines, and ignition components to ensure peak engine performance. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements built for durability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct Vanguard 810 engine components for simple installation. Routine maintenance prevents wear, enhances fuel efficiency, and ensures the longevity of your engine. We also stock Bad Boy Parts Online, making it simple to order essential parts. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Outlaw & Outlaw Extreme Engine - Vanguard 810 is now more cost-effective. Order today to ensure long-term reliability and efficiency.

Bad Boy Mower Parts Lookup

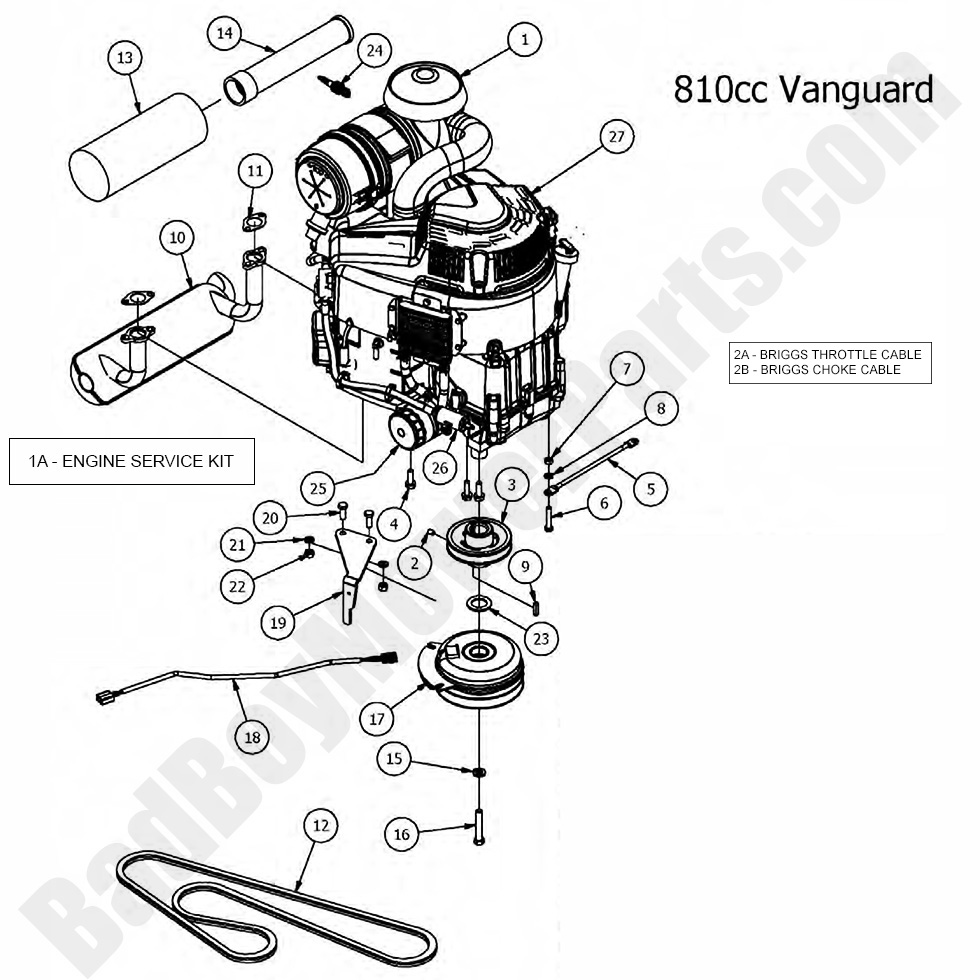

2017 Outlaw & Outlaw Extreme - Engine - Vanguard 810
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1 088-1065-00 088-1065-00 - 23hp Vanguard Rain Cap
$108.99
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
4 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
5 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
6 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
10 015-0027-00 015-0027-00 - Exhaust Briggs 26/27/30hp
$204.99
11 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
12 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
13 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
14 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
15 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
16 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
18 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
19 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
20 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
22 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
23 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
24 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
25 063-8018-00 063-8018-00 - Oil Filter
$21.39
26 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
27 015-0810-00 015-0810-00 - 810cc Vanguard Engine 26hp
$1999.99
27 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
