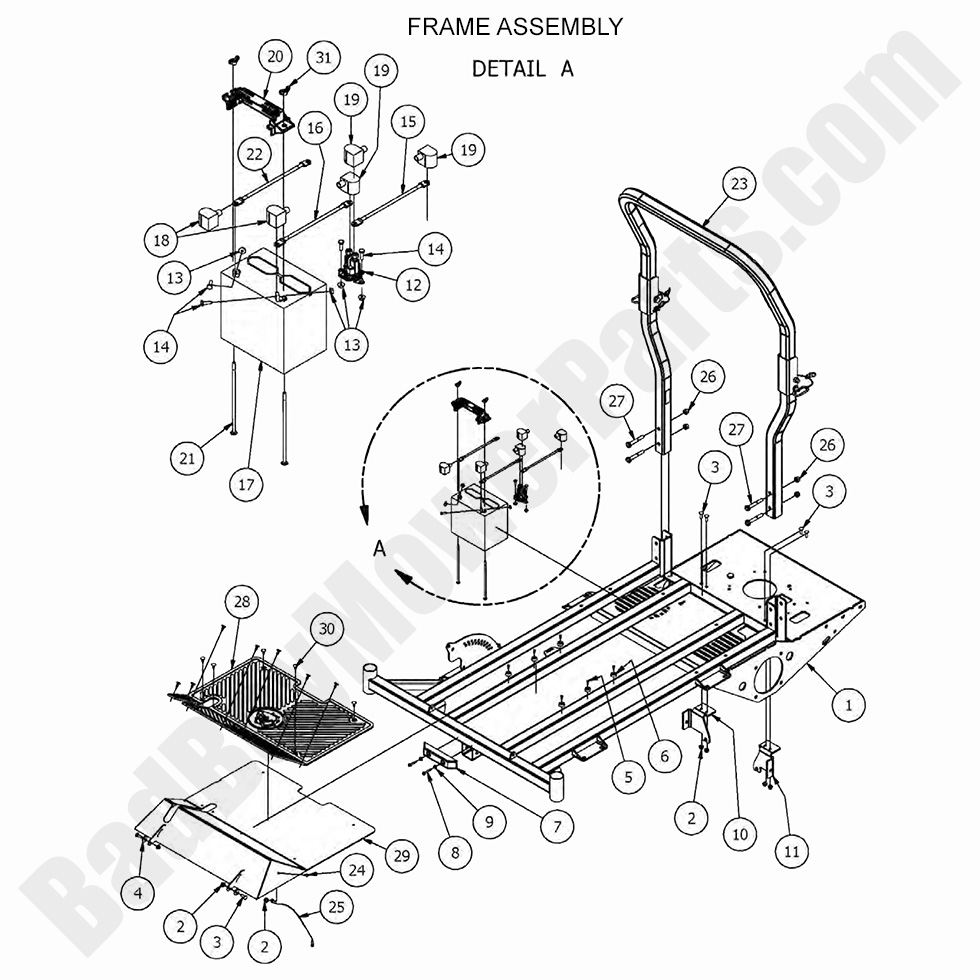

2017 Outlaw & Outlaw Extreme - Frame

2017 Outlaw & Outlaw Extreme - Frame

The 2017 Outlaw & Outlaw Extreme Frame provides the structural integrity that ensures long-lasting durability and stability for your mower. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including reinforced frame supports, chassis components, and mounting hardware designed for maximum strength. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for longevity. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct frame components for seamless installation. Routine maintenance of the frame assembly prevents structural wear, enhances mower stability, and ensures consistent performance. We also stock Bad Boy Parts Online, making it quick and convenient to order essential components. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Outlaw & Outlaw Extreme Frame is now more affordable. Order today to ensure your mower stays sturdy and reliable for years to come.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme - Frame
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5370-17 070-5370-17 - 2017-2018 Outlaw/Outlaw Extreme Frame
$1299.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
5 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
6 029-4010-00 029-4010-00 - Button Bumper
$2.99
7 029-7038-00 029-7038-00 - 8 Bumper
$28.32
8 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
9 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
10 039-2113-00 039-2113-00 - Outlaw Brake Cable Mount Bracket (Right)
$16.04
11 039-2110-00 039-2110-00 - Outlaw Brake Cable Mounting Bracket (left)
$16.04
12 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
13 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
14 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
15 086-0003-00 086-0003-00 - Alternator to Starter Cable
$7.79
16 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
18 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
19 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
20 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
21 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
22 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
23 089-0002-00 089-0002-00 - 2x2 Folding ROPS, Fits 2011 Pup & Lightning, 2010-2018 Outlaw & Outlaw XP
$796.75
24 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
25 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
26 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
27 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
28 081-2050-00 081-2050-00 - 2016-2018 Outlaw/Outlaw XP Floor Mat
$47.03
29 079-3130-00 079-3130-00 - Outlaw Floor Panel
$119.99
30 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
