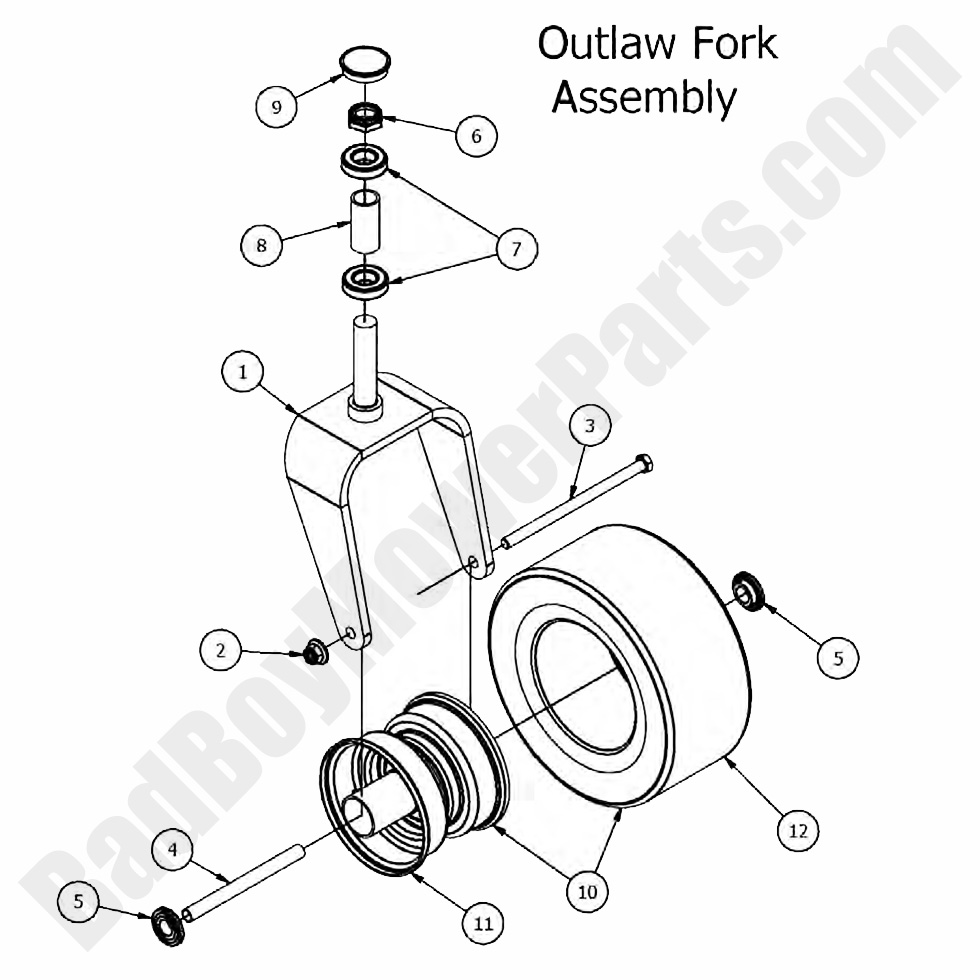

2017 Outlaw & Outlaw Extreme - Front Fork Assembly

2017 Outlaw & Outlaw Extreme - Front Fork Assembly

The 2017 Outlaw & Outlaw Extreme Front Fork Assembly is crucial for ensuring smooth maneuverability and absorbing shocks on uneven terrain. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including caster wheels, pivot arms, bushings, and front fork brackets to maintain smooth steering. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for strength and reliability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct front fork components for easy installation. Routine maintenance prevents excessive vibrations, improves steering control, and enhances mower stability. We also provide Bad Boy Parts Online, making ordering necessary components quick and simple. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Outlaw & Outlaw Extreme Front Fork Assembly is now more budget-friendly. Order today to ensure smooth handling and improved operator control.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme - Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
4 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
5 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
6 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
7 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
8 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
9 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
10 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$112.99
11 022-3090-00 022-3090-00 - Black Front Rim Only (See Models Used For Detail) (obsolete)
use part #022-3085-00
$112.99
12 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
