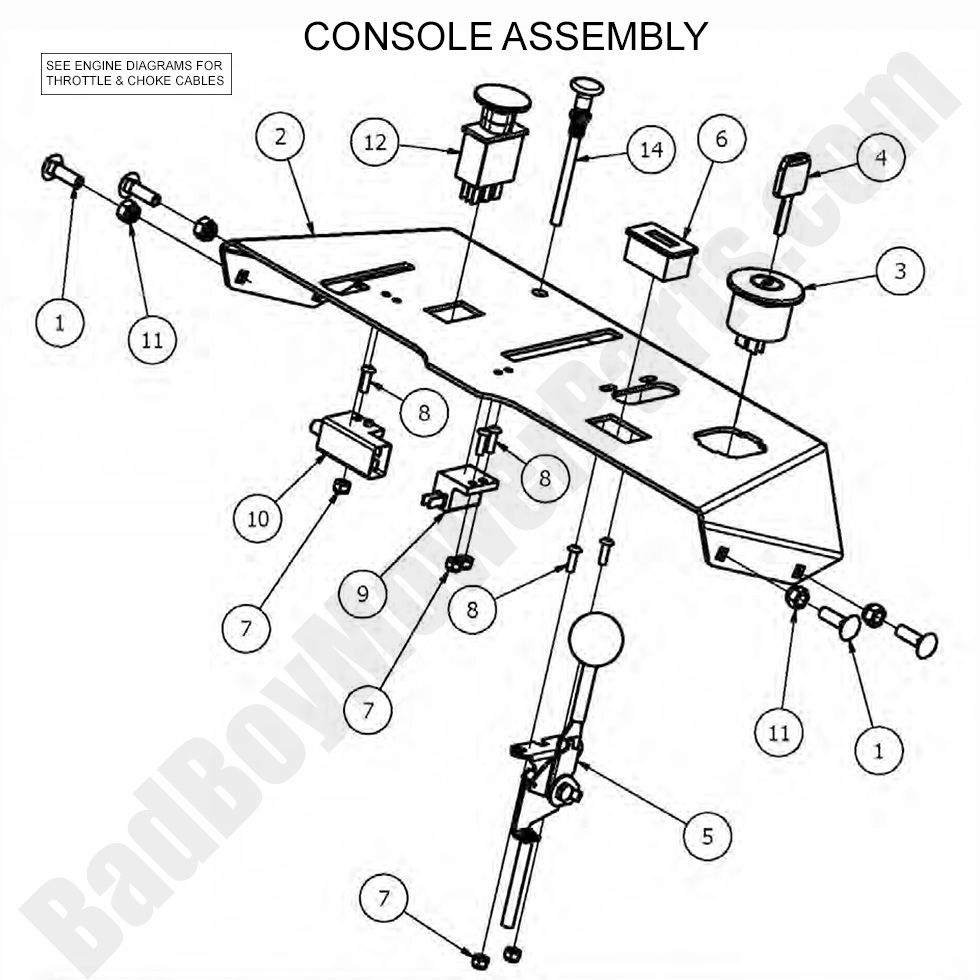

Click Image to Change Diagram
The 2017 Walk Behind Console Assembly provides essential mower controls for smooth operation and precision handling. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including throttle cables, ignition switches, PTO controls, and wiring harnesses to maintain seamless performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for durability and reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct console assembly components for hassle-free installation. Routine maintenance prevents electrical failures, enhances control responsiveness, and ensures smooth mower operation. We also stock Bad Boy Parts Online, making ordering replacement console parts quick and simple. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Walk Behind Console Assembly is now more budget-friendly. Order today to ensure your mower’s controls remain in top working condition for maximum efficiency.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 018-8065-00 | 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc |
$2.99
|
||
3 | 077-0003-00 | 077-0003-00 - 2017-2021 Walk Behind-Key Switch |
$32.78
|
||
4 | 042-9000-00 | 042-9000-00 - Ignition Key |
$4.06
|
||
6 | 083-4013-00 | 083-4013-00 - Tachometer-N211-0100-1003 |
$74.89
|
||
7 | 013-5019-00 | 013-5019-00 - 10-24 Nylon Insert Locknut Zinc |
$2.99
|
||
8 | 018-5200-00 | 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS |
$2.99
|
||
9 | 077-5300-00 | 077-5300-00 - Deck Stop Switch |
$9.89
|
||
10 | 077-0001-00 | 077-0001-00 - 2017-2025 Walk Behind-Safety Switch Brake |
$23.41
|
||
11 | 013-8047-00 | 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc |
$2.99
|
||
12 | 056-8058-00 | 056-8058-00 - PTO Engager-Switch for Blades |
$34.29
|
