The 2017 Walk Behind Front Fork Assembly ensures smooth steering, balance, and maneuverability for precise mowing performance. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including caster wheels, fork brackets, bushings, and suspension springs for long-lasting durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for efficiency and strength. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct front fork assembly components for hassle-free installation. Routine maintenance prevents excessive vibration, enhances steering control, and extends mower longevity. We also stock Bad Boy Parts Online, making it convenient to find and order essential parts. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Walk Behind Front Fork Assembly is now more affordable. Order today to ensure smooth handling and precise steering in all mowing conditions.
![]() |

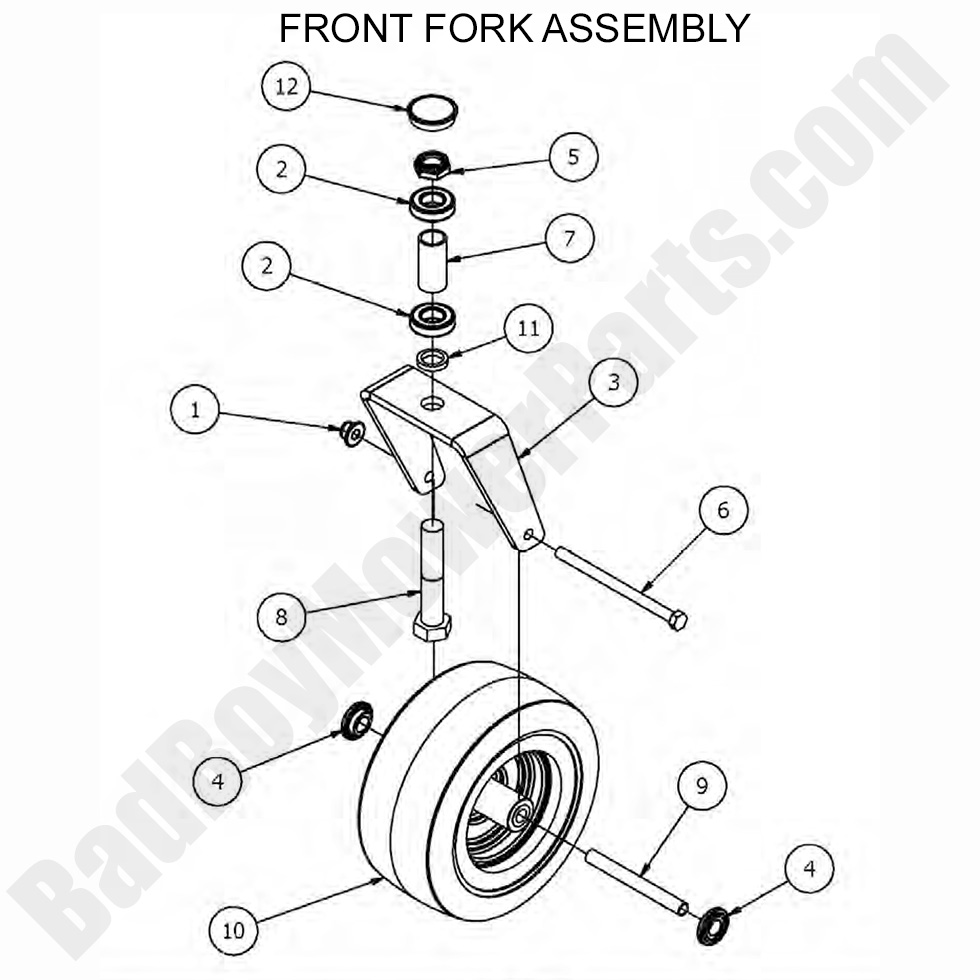

Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 013-8050-00 | 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon |
$2.99
|
||
2 | 010-1050-00 | 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details) |
$18.39
|
||
3 | 023-0002-00 | 023-0002-00 - 2017-2025 Walkbehind & MZ Front Fork |
$31.23
|
||
4 | 022-7009-00 | 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier |
$13.36
|
||
5 | 013-9004-00 | 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread |
$3.62
|
||
6 | 018-0035-00 | 018-0035-00 - 1/2-13 x 7 1/2 Hex Bolt |
$4.83
|
||
7 | 025-0003-00 | 025-0003-00 - Front Bearing Spacer |
$14.04
|
||
8 | 018-0005-00 | 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc |
$7.69
|
||
9 | 025-0008-00 | 025-0008-00 - Front Wheel Spanner - MZ |
$15.60
|
||
10 | 022-8049-00 | 022-8049-00 - 11x6.00-5 Front Assembly (One Tire and Rim Assy) |
$99.39
|
||
11 | 058-1000-00 | 058-1000-00 - MZ Bar Stop |
$6.41
|
||
12 | 014-2025-00 | 014-2025-00 - Caster Bearing Cover (See Models Used On For Details) |
$2.99
|
