2017 Walk Behind - Side Panel Assembly

2017 Walk Behind - Side Panel Assembly

The 2017 Walk Behind Side Panel Assembly protects essential mower components while enhancing aerodynamics and mower stability. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including durable side panels, mounting brackets, protective covers, and panel fasteners to keep your mower structurally intact. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for longevity. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct side panel components for easy installation. Routine maintenance prevents wear, improves structural integrity, and keeps debris from entering sensitive areas. We also stock Bad Boy Parts Online, making it easy to order necessary side panel parts. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Walk Behind Side Panel Assembly is now more budget-friendly. Order today to keep your mower protected and operating at peak efficiency.

Bad Boy Mower Parts Lookup

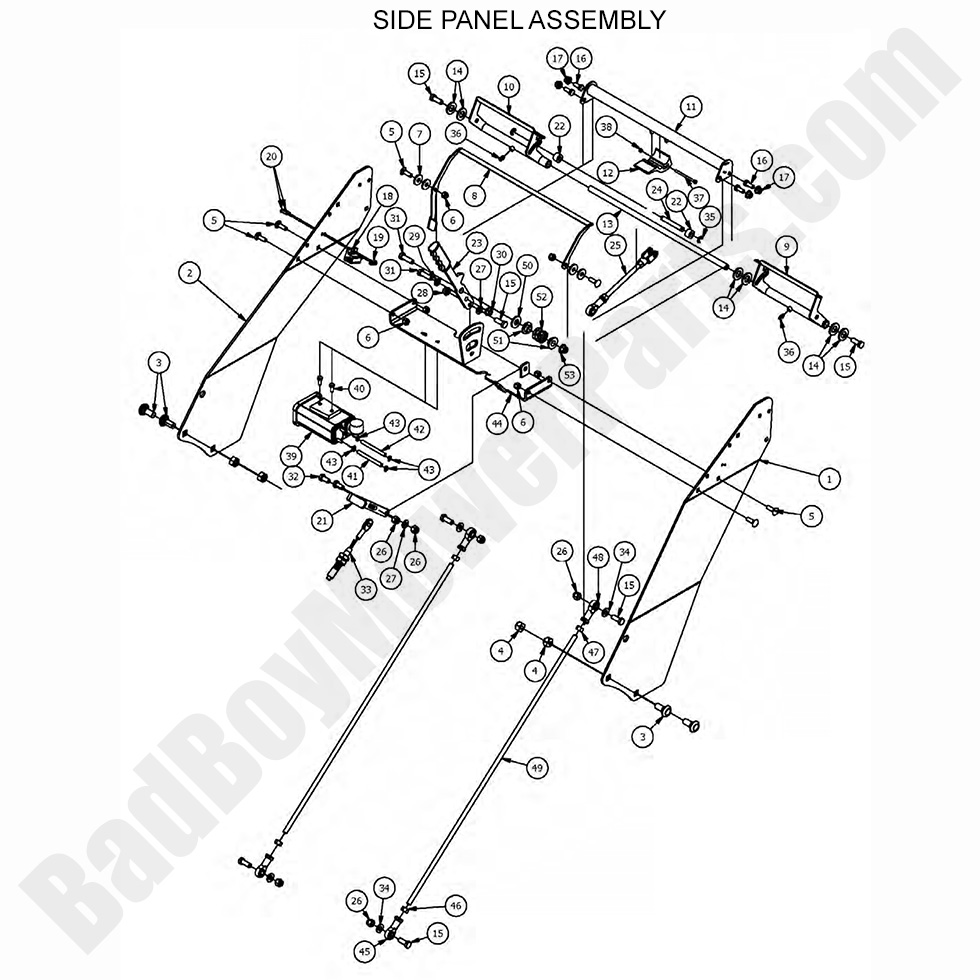

2017 Walk Behind - Side Panel Assembly
  Position Number SKU Product Title Price
3 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
4 013-6037-00 013-6037-00 - 1/2-13 Nylon Insert Locknut Zinc
$2.99
5 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
6 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
7 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99

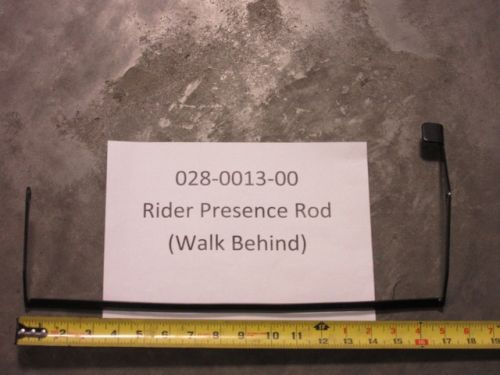

8 028-0013-00 028-0013-00 - 2017-2018 Walk Behind Rider Presence Rod
$47.03

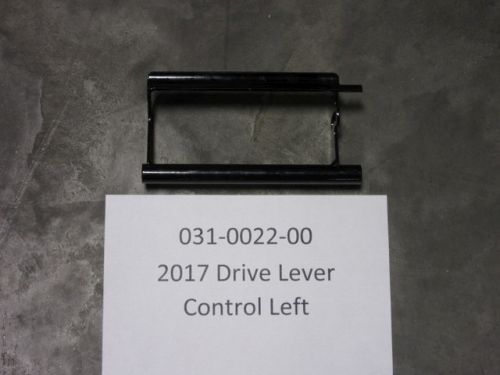

9 031-0022-00 031-0022-00 - 2017-2018 Walk Behind Drive Lever Control-Left
$32.05

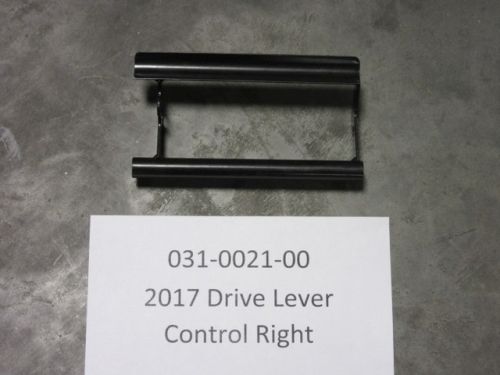

10 031-0021-00 031-0021-00 - 2017-2018 Walk Behind Drive Lever Control-Right
$32.05
11 069-2017-00 069-2017-00 - Walk Behind Control Handle Welded Assembly
$16.04

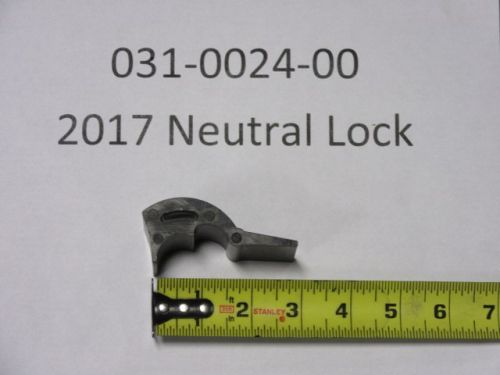

12 031-0024-00 031-0024-00 - 2017-2018 Walk Behind Neutral Lock
$21.35
13 028-0009-00 028-0009-00 - Walk Behind & Raider Control Pivot Rod
$31.17
14 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
15 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
16 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
17 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
18 077-5300-00 077-5300-00 - Deck Stop Switch
$9.89
19 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
20 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 069-2020-00 069-2020-00 - Walk Behind Brake Handle
$8.79
22 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
23 031-0036-00 031-0036-00 - Walk Behind Speed Control Lever
$10.99

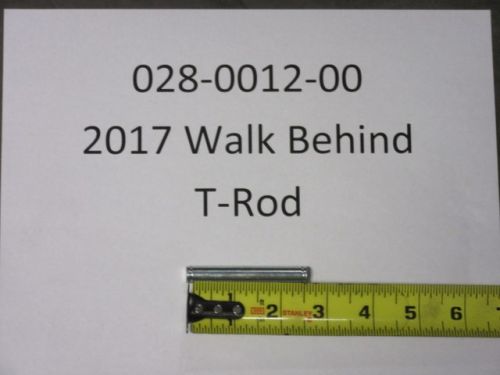

24 028-0012-00 028-0012-00 - 2017-2018 Walk Behind T-Rod
$23.49
25 035-0002-98 035-0002-98 - 2017-2024 Walk Behind Speed Control Rod Assembly
$38.47
26 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
27 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
28 013-0009-00 013-0009-00 - 3/8-16 Hex Flange Top Lock Nut
$2.99
29 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99

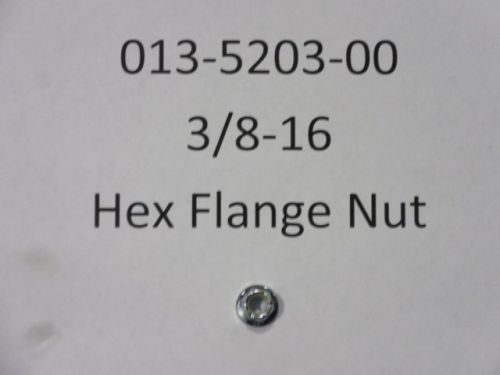

30 013-5203-00 013-5203-00 - 3/8-16 Hex Flange Nut
$2.99
31 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
32 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
33 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
34 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
36 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99

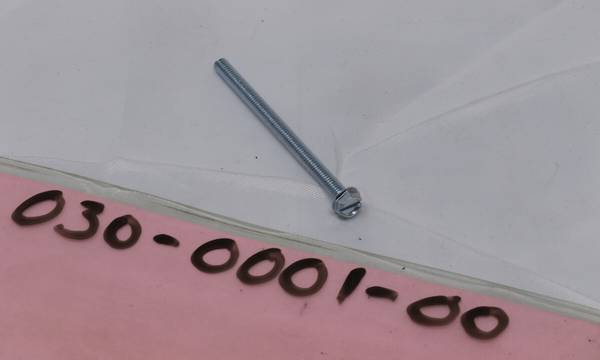

37 030-0001-00 030-0001-00 - 8-32 x 2 1/2 Hex Machine Screw
$2.99

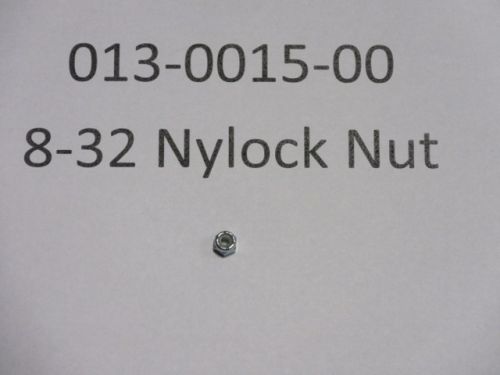

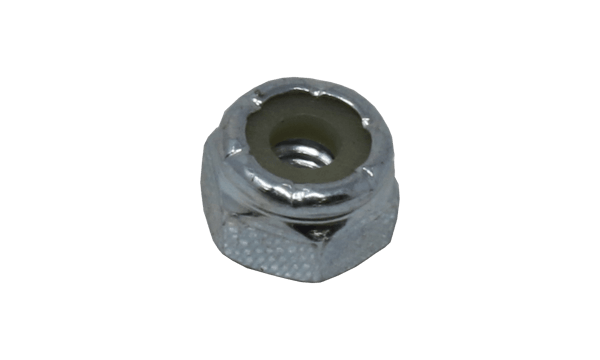

38 013-0015-00 013-0015-00 - 8-32 Nylock Nut
$2.99
39 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
40 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
41 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
43 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
44 201-1170-00 201-1170-00 - Obsolete - 2017 Walk Behind Cross Support Welded Assembly No Longer Available
Obsolete.
45 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
46 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
48 048-3001-00 048-3001-00 - Left Handed Spherical Rod End (obsolete)
use part #035-0007-98
$42.79
49 028-0010-00 028-0010-00 - 2017 Walk Behind Drive Linkage Bar
$21.35
50 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
51 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
52 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
53 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
