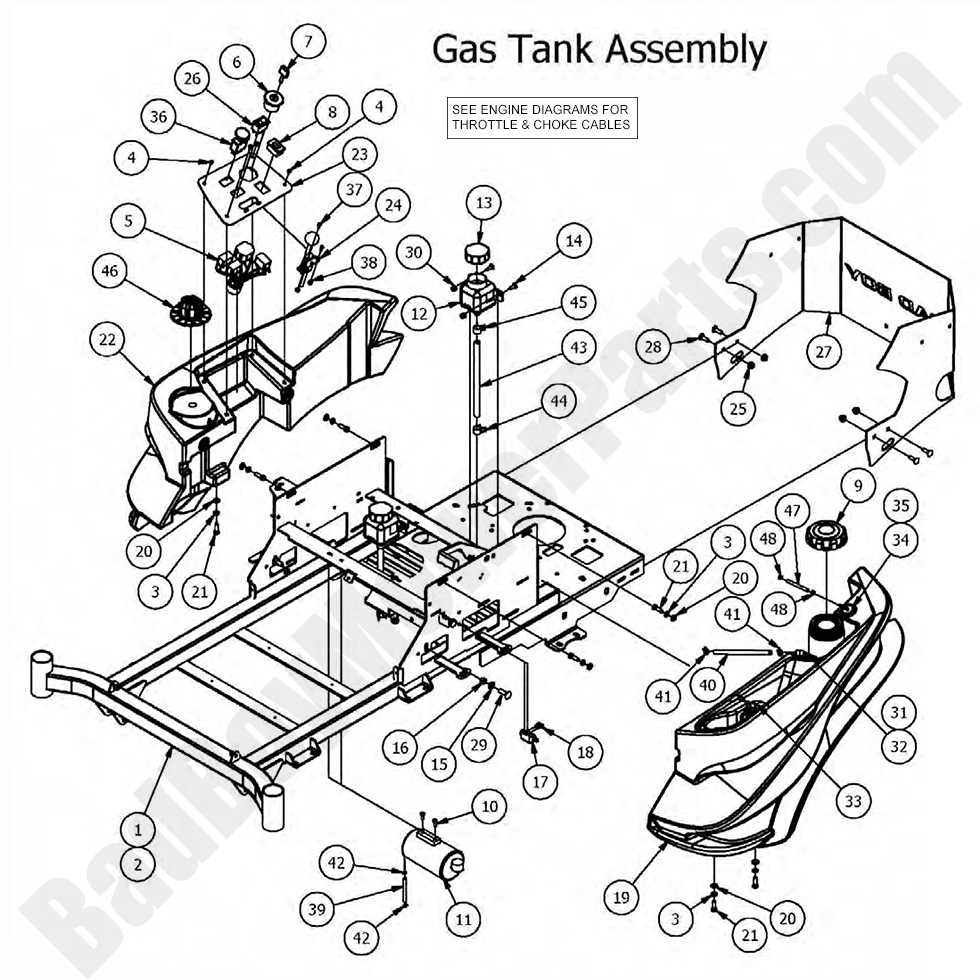

2017 ZT Elite - Fuel Tank & Console

2017 ZT Elite - Fuel Tank & Console

The 2017 ZT Elite Fuel Tank & Console play a crucial role in fuel storage and operational control. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including fuel tanks, fuel lines, console panels, ignition switches, and control levers to ensure smooth operation. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements designed for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can easily locate and order the correct fuel tank and console components for quick installation. Routine maintenance prevents fuel leaks, improves operational control, and extends the lifespan of your mower. We also provide Bad Boy Parts Online, making it simple to order essential fuel and console components. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 ZT Elite Fuel Tank & Console is now more cost-effective. Order today to ensure a seamless fueling process and reliable mower operation with long-lasting parts.

Bad Boy Mower Parts Lookup

2017 ZT Elite - Fuel Tank & Console
  Position Number SKU Product Title Price
1 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
2 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
3 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
4 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
5 086-3050-17 086-3050-17 - 2010-2018 CZT/ZT/Maverick/Comp. Outlaw & 2016-2018 MZ/MZ Magnum Complete Harness
$299.99
6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
7 042-9000-00 042-9000-00 - Ignition Key
$4.06
8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
9 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
10 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
11 067-0020-00 067-0020-00 - Carbon Canister
$62.40
12A 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
12 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
13 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
14 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
15 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
16 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
18 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
19 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
20 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
21 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
22 067-2070-50 067-2070-50 - Right Side Console
$228.99
23 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
25 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
26 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
27 026-0090-00 026-0090-00 -Rear Plate (See Models Used On For Details)
$219.99
28 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
29 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
30 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
31 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
32 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
33 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
35 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
36 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
37 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
38 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
39 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
40 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
41 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
42 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
43 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
44 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
45 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
46 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
47 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
48 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
