2017 ZT Elite Transaxle Assembly

Transaxle Assembly

The Bad Boy Mower Transaxle Assembly for the 2017 ZT Elite is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 ZT Elite models as well. Find all of your Bad Boy mowers 2017 ZT Elite parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 ZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 ZT Elite Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
2 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-5355-00 018-5355-00 - 5/16-18 X 6 GR 5 Hex Bolt Zinc
$2.99
5 025-0017-00 025-0017-00 - 2017-2024 Transaxle Spacer-ZT
$14.04
6 025-0070-00 025-0070-00 - 2017-2024 Transaxle Spacer
$6.41
7 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
8 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
9 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
10 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89

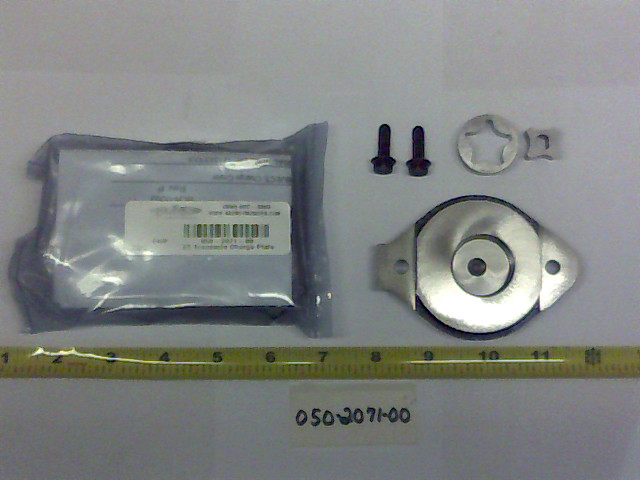

11 050-2071-00 050-2071-00 - ZT Transaxle Charge Plate
$90.94
12 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
13 018-3000-00 018-3000-00 - 3/8-16 X 2 GR 5 Hex Bolts Zinc
$2.99
14 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
16 050-2095-00 050-2095-00 - 2017-2021 Right ZT Elite Transaxle & 36" 2020-2021 Revolt (obsolete)
use part #050-2095-01
$781.09
17 050-2096-00 050-2096-00 - 2017-2021 Left ZT Elite Transaxle & 36" 2020-2021 Revolt (obsolete)
use part #050-2096-01
$781.09
18 064-3050-00 064-3050-00 - Brake Cable-18.50"
$51.47
19 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
20 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
21 022-2015-00 022-2015-00 - ZT Black Assy 22x11-10
$343.99

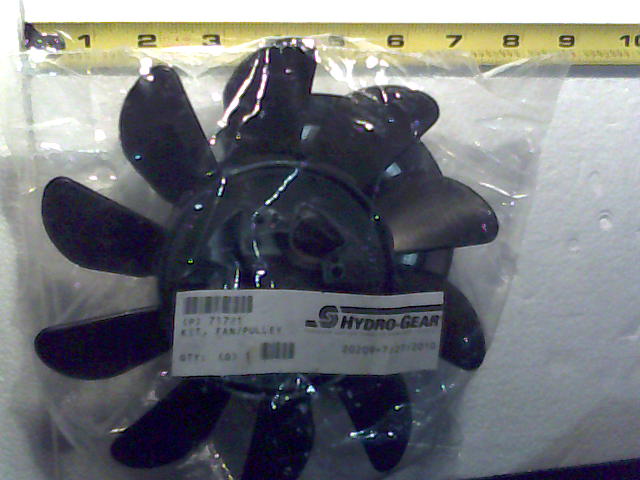

22 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
23 050-2076-00 050-2076-00 - ZT Transaxle Wheel Hub
$90.56
24 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
25 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
26 022-2015-50 022-2015-50 - ZT Wheel for 54" and 60" decks, fits 022-2015-00
$123.99
27 022-2020-00 022-2020-00 - ZT Tire Only 22x11-10 Car isle
$203.99
28 022-2018-00 022-2018-00 - ZT Black Assy 22x10-10 48" Deck
$343.99
29 022-2019-17 022-2019-17 - 48 ZT 10" Black Wheel fits the 022-2018-00
$99.50
30 022-2024-17 022-2024-17 - 22x10-10 Tire for the 48" ZT fits the 022-2018-00
$188.99
