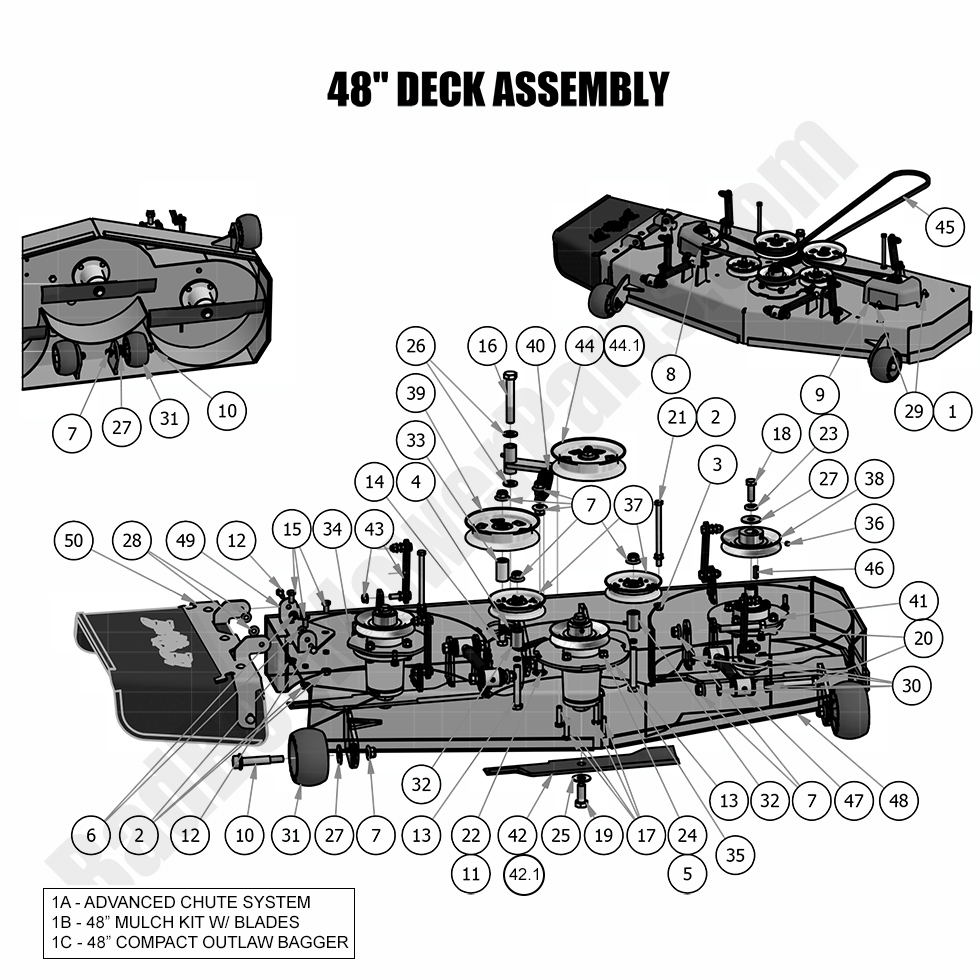

2018 Compact Outlaw - 48" Deck Assembly

2018 Compact Outlaw - 48" Deck Assembly

For larger lawns, the 48" deck assembly on the 2018 Compact Outlaw provides increased cutting width, improving mowing efficiency. At BadBoyMowerParts.com, we offer an extensive selection of Bad Boy Mower Parts for the 48" deck assembly. From deck spindles to pulleys and belts, we have everything you need for maintenance or replacement. Our detailed Bad Boy Mower Part diagrams make it easy to find the right parts for your mower’s deck. We provide high-quality Bad Boy Lawn Mower Parts, ensuring optimal performance and durability. Shopping Bad Boy Parts Online is quick and simple, and with Free Shipping On Orders Over $100, you can maintain your 2018 Compact Outlaw deck without spending a fortune.

Bad Boy Mower Parts Lookup

2018 Compact Outlaw - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 088-1810-00 088-1810-00 - 48 Compact Outlaw 2 Bagger Paddle (2017-2020 only)
$2499.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
16 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
21 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
22 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
28 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
29 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
30 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
31A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
31 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
32 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
33 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
34 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
35 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
36 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
37 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
38 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
39 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
40 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
41 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
42.1 038-4827-00 038-4827-00 - 48" Gator Blade for MZ only
$21.99
42 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
43 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
44.1 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
44 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
45 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
46 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
47 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
48 060-4817-00 060-4817-00 - 48" Deck Shell (See Models Used On For Details)
$1059.99
49 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
50 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
