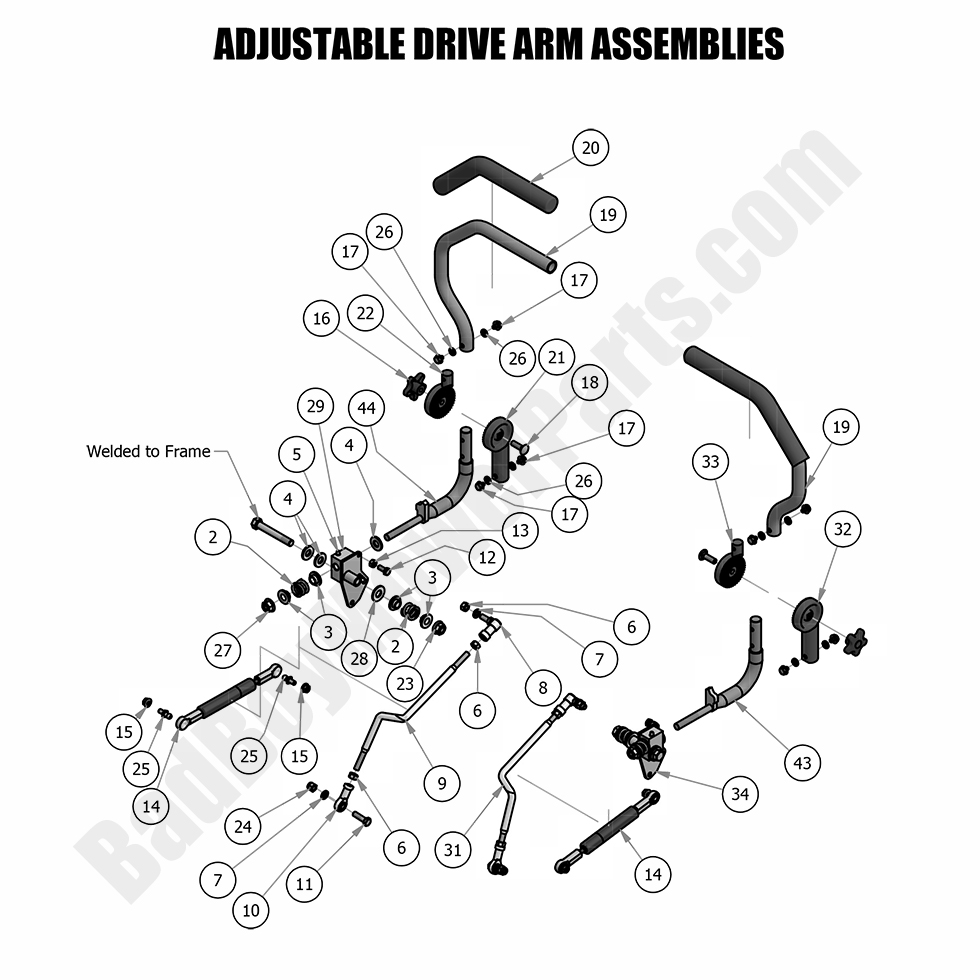

2018 Compact Outlaw - Adjustable Drive Arm Assembly

2018 Compact Outlaw - Adjustable Drive Arm Assembly

The adjustable drive arm assembly in the 2018 Compact Outlaw helps ensure precise control over the mower's movement. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts to replace or repair the adjustable drive arm. Whether you need a new arm or specific components like links or bushings, we have everything you need. Our Bad Boy Mower Part diagrams make it easy to locate the right part for your mower’s drive system. We offer only durable Bad Boy Lawn Mower Parts, ensuring your mower operates smoothly and efficiently. Shopping Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can maintain your 2018 Compact Outlaw at an affordable price

Bad Boy Mower Parts Lookup

2018 Compact Outlaw - Adjustable Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
2 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
7 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
8 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
9 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
10 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
11 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
12 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
13 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
14 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
15 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
16 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
17 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
18 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
19 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
19a 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
19b 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
20 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
21 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
22 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
23 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
24 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
25 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
26 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
27 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
28 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
29 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
31 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
32 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
33 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
34 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
43 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
44 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
