2018 Compact Outlaw - Engine - Kawasaki FX691

2018 Compact Outlaw - Engine - Kawasaki FX691

The Kawasaki FX691 engine in the 2018 Compact Outlaw is known for its power and reliability, but like any engine, it requires regular maintenance and occasional part replacements. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts to keep your Kawasaki FX691 engine running smoothly. From air filters and fuel pumps to carburetors and spark plugs, we have everything you need. Our Bad Boy Mower Part diagrams make it easy to find the exact engine components required for your model. We only stock top-tier Bad Boy Lawn Mower Parts to ensure durability and performance. Shopping Bad Boy Parts Online is fast and convenient, and with Free Shipping On Orders Over $100, you can maintain your Compact Outlaw with ease.

Bad Boy Mower Parts Lookup

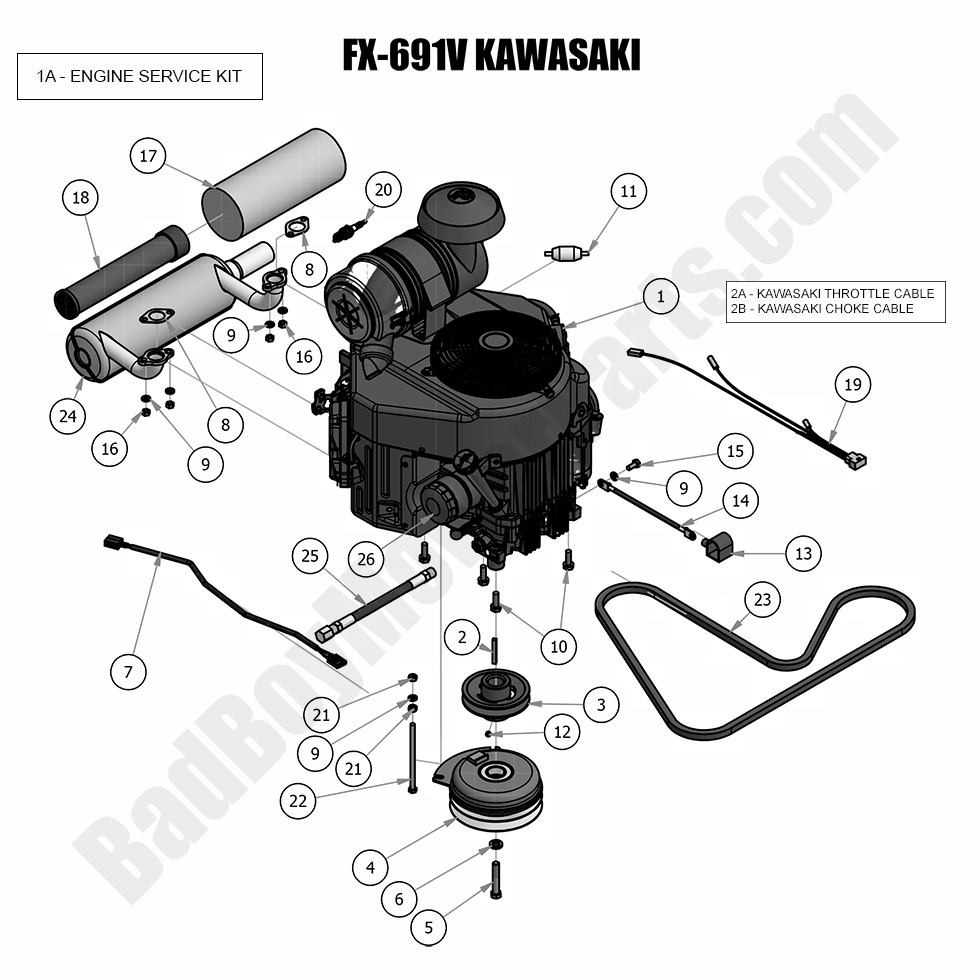

2018 Compact Outlaw - Engine - Kawasaki FX691
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15

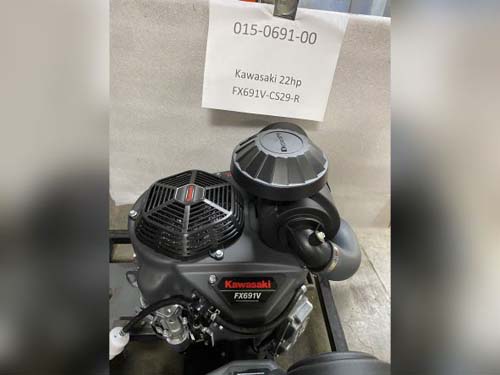

1 015-0691-00 015-0691-00 - FX691 Kawasaki Compact Outlaw
$2599.00
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
4 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
5 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
6 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
7 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
8 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
9 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
11 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
12 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
13 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
14 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
15 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
16 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
17 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
18 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65

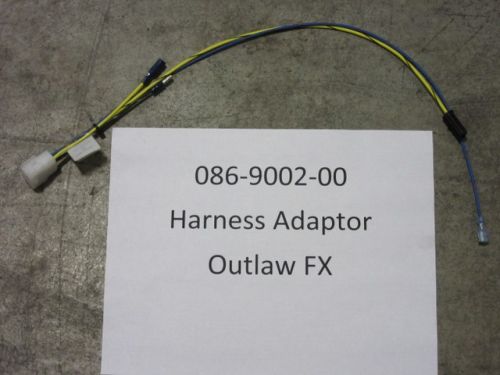

19 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
20 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
21 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
22 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
23 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
24 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
25 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
26 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
