2018 Compact Outlaw - Engine - Vanguard 810

2018 Compact Outlaw - Engine - Vanguard 810

The Vanguard 810 engine powering the 2018 Compact Outlaw delivers reliable performance for commercial and residential mowing. To ensure optimal operation, it's important to maintain and replace engine components as needed. At BadBoyMowerParts.com, we carry a full range of Bad Boy Mower Parts for the Vanguard 810 engine, including oil filters, ignition coils, fuel systems, and more. Our Bad Boy Mower Part diagrams simplify the process of finding the correct parts for your mower’s engine. With high-quality Bad Boy Lawn Mower Parts, you can extend the life of your engine and keep it performing at its best. Shopping Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can save while keeping your mower in peak condition.

Bad Boy Mower Parts Lookup

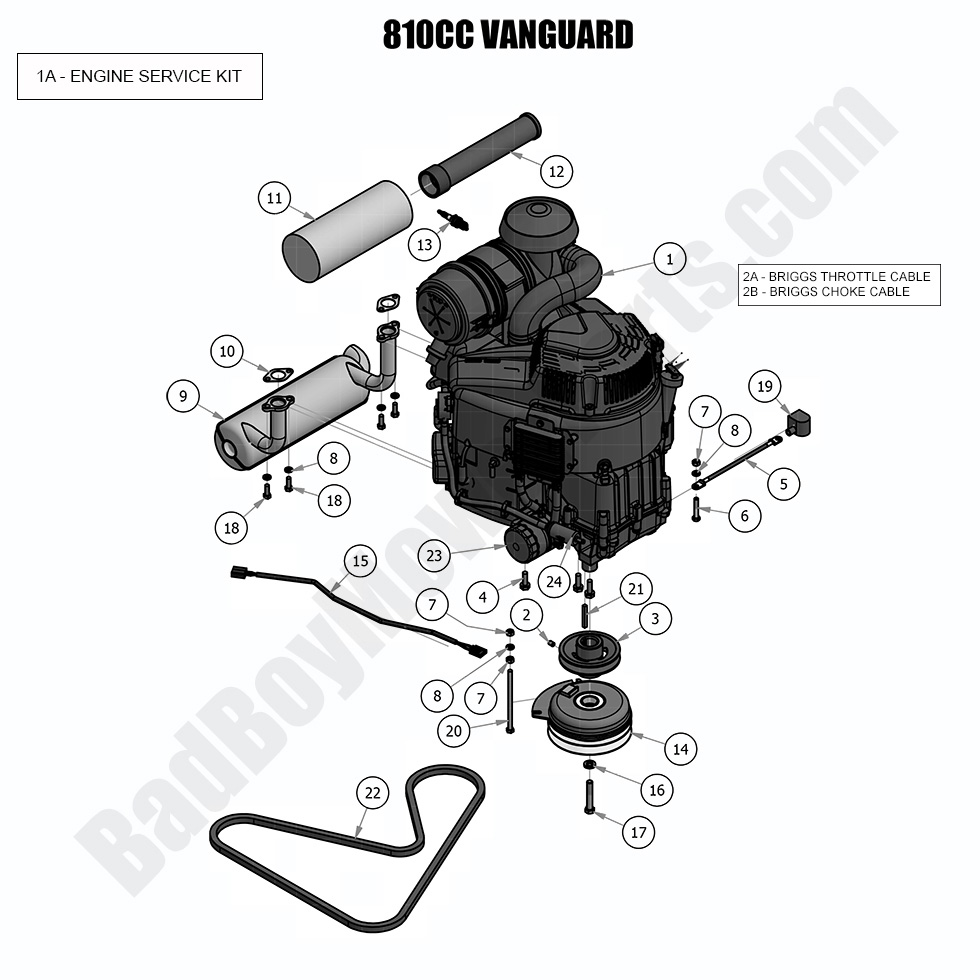

2018 Compact Outlaw - Engine - Vanguard 810
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1 015-0810-00 015-0810-00 - 810cc Vanguard Engine 26hp
$1999.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
4 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
5 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
6 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99
10 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
11 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
12 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
13 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
14 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
15 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
16 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
17 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99

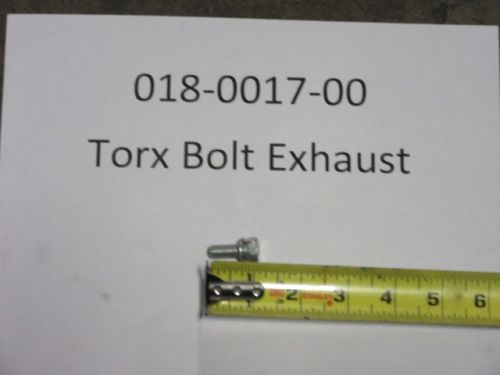

18 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
19 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
20 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
21 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
22 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
23 063-8018-00 063-8018-00 - Oil Filter
$21.39
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
