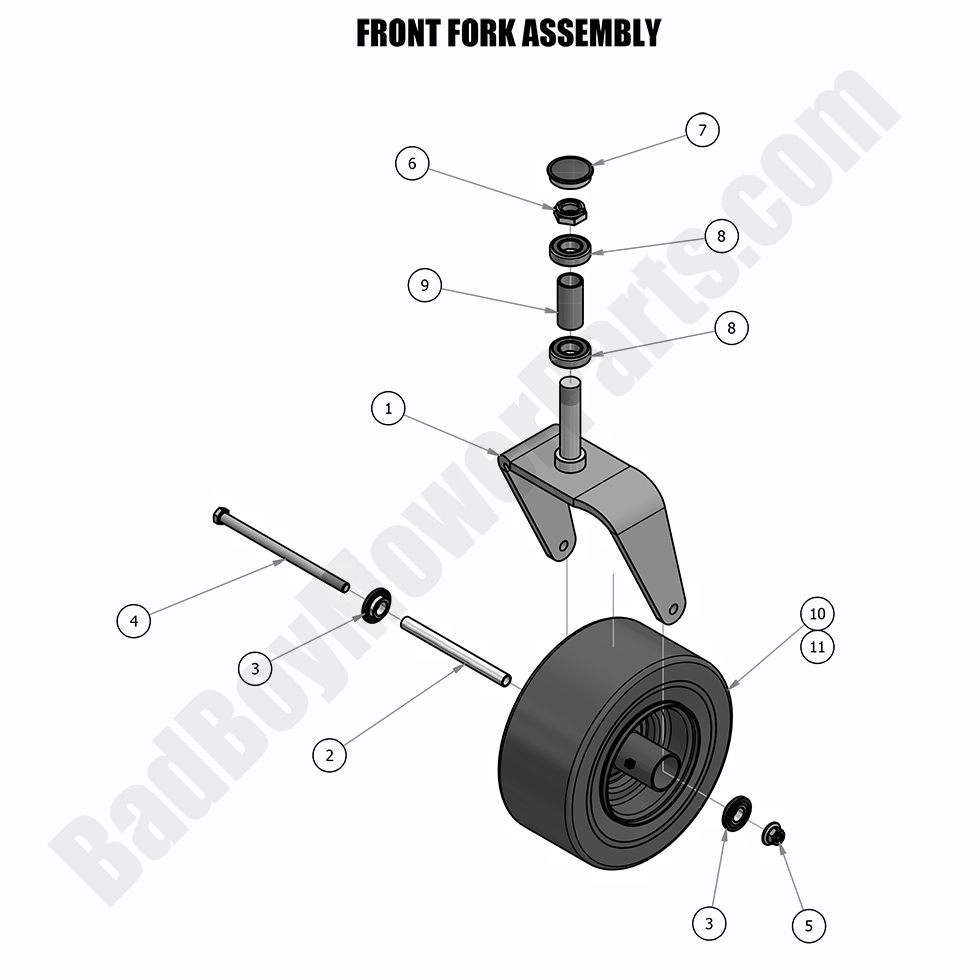

2018 Compact Outlaw - Front Fork Assembly

2018 Compact Outlaw - Front Fork Assembly

The front fork assembly in the 2018 Compact Outlaw plays a crucial role in ensuring smooth and stable movement over rough terrain. If your front fork assembly is worn or damaged, it can lead to handling issues and an uneven mowing experience. At BadBoyMowerParts.com, we offer an extensive selection of Bad Boy Mower Parts to replace or repair your front fork assembly. Whether you need new caster wheels, bushings, or the full assembly, our Bad Boy Mower Part diagrams help you find the right parts easily. We stock only high-quality Bad Boy Lawn Mower Parts for maximum durability and performance. Shopping Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can restore your mower’s handling while saving on shipping costs.

Bad Boy Mower Parts Lookup

2018 Compact Outlaw - Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
2 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
4 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
7 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
8 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$112.99
11 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
