2018 Compact Outlaw - Gas Tank Assembly

2018 Compact Outlaw - Gas Tank Assembly

The gas tank assembly on the 2018 Compact Outlaw is designed to store and supply fuel efficiently to the engine. If your gas tank is leaking or the fuel lines are clogged, replacing them is essential for optimal performance. At BadBoyMowerParts.com, we stock a complete selection of Bad Boy Mower Parts for your gas tank assembly, including replacement tanks, fuel caps, hoses, and filters. Our Bad Boy Mower Part diagrams make it easy to locate the correct parts for your mower. With our durable Bad Boy Lawn Mower Parts, you can ensure your fuel system functions properly. Shopping Bad Boy Parts Online is quick and hassle-free, and with Free Shipping On Orders Over $100, you can upgrade your fuel system while keeping costs down.

Bad Boy Mower Parts Lookup

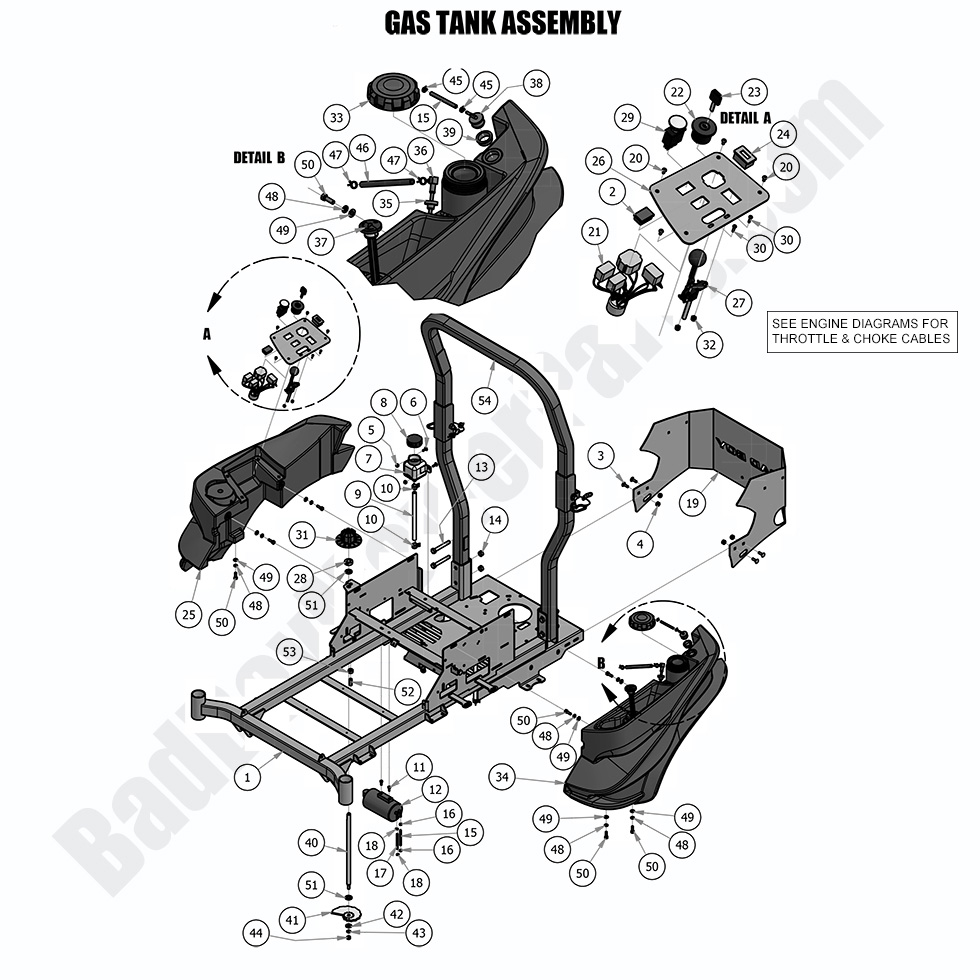

2018 Compact Outlaw - Gas Tank Assembly
  Position Number SKU Product Title Price
1 070-5500-18 070-5500-18 - 2018-2021 Compact Outlaw Frame
$1099.99
2 018-1040-00 018-1040-00 - Light Plug
$2.99
3 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
6 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
7 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
8 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
9 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
10 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
11 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
12 067-0020-00 067-0020-00 - Carbon Canister
$62.40
13 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
14 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
15 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
16 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
17 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
18 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
19 026-0090-00 026-0090-00 -Rear Plate (See Models Used On For Details)
$219.99
20 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
21 086-3050-17 086-3050-17 - 2010-2018 CZT/ZT/Maverick/Comp. Outlaw & 2016-2018 MZ/MZ Magnum Complete Harness
$299.99
22 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
23 042-9000-00 042-9000-00 - Ignition Key
$4.06
24 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
25 067-2070-50 067-2070-50 - Right Side Console
$228.99
26 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
28 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
29 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
30 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
31 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
32 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
33 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
34 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
35 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
36 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
37 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
38 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
40 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
41 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
42 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
43 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
44 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
45 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
46 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
47 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
48 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
49 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
50 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
51 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
52 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
53 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
54 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
