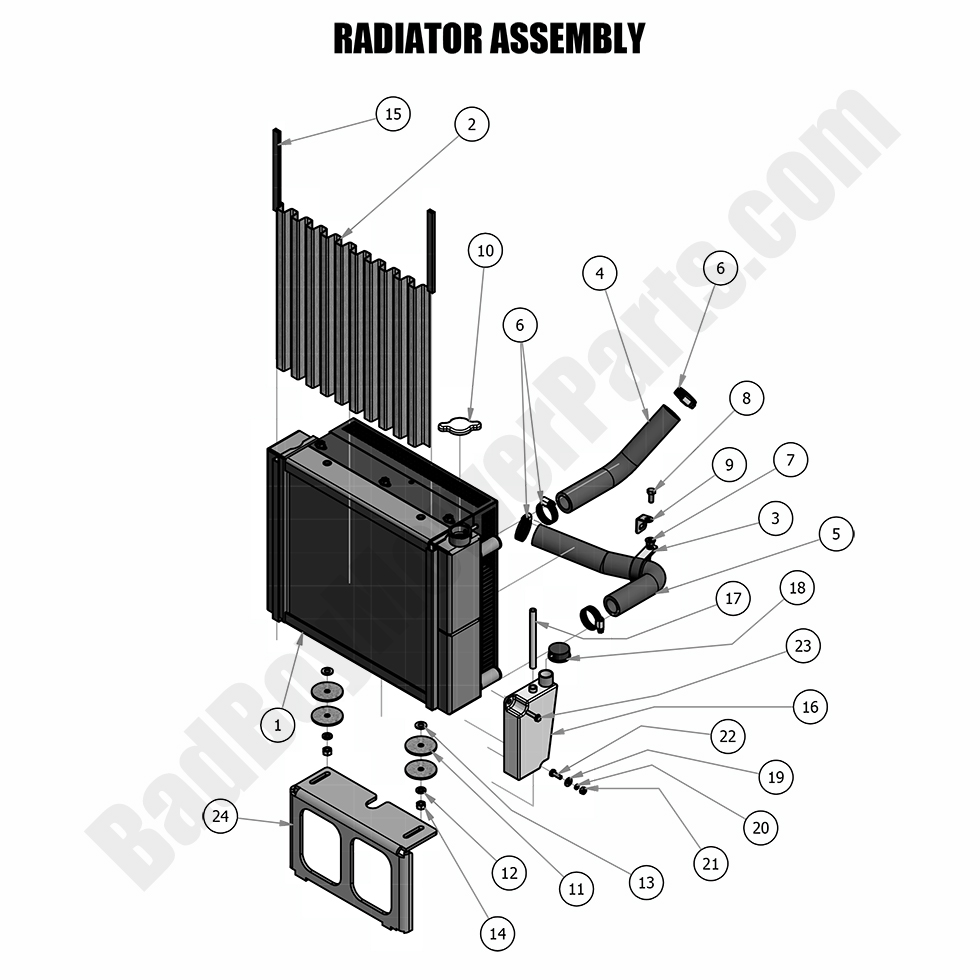

2018 Diesel - 1100cc - Radiator Assembly

2018 Diesel - 1100cc - Radiator Assembly

The radiator assembly in the 2018 Diesel - 1100cc plays a critical role in cooling the diesel engine and preventing overheating. If your mower’s radiator is clogged, leaking, or failing to cool properly, it’s important to replace it to avoid engine damage. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts, including high-quality radiators, hoses, and coolant reservoirs. Our Bad Boy Mower Part diagrams make it easy to find the right radiator assembly for your model. With durable Bad Boy Lawn Mower Parts, you can ensure reliable cooling performance. Shop Bad Boy Parts Online and get Free Shipping On Orders Over $100, helping you maintain engine temperature without extra costs.

Bad Boy Mower Parts Lookup

2018 Diesel - 1100cc - Radiator Assembly
  Position Number SKU Product Title Price
1 061-5000-00 061-5000-00 - Radiator - Diesel Models (See Models Used On For Details)
$999.99
2 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
3 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
4 051-3000-00 051-3000-00 - 2010-2020 Top Radiator Hose - Diesel
$22.03
5 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
6 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
10 015-0104-00 015-0104-00 - CAT Diesel Radiator Cap
$31.22
11 019-5050-00 019-5050-00 - 3/8 X 2-1/4 OD Fibre Washer
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 084-4015-00 084-4015-00 - Rubber Trim
$10.99
16 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89
17 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99
18 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
19 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
20 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
21 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
22 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
23 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
