2018 Diesel - 1100cc - Seat Frame

2018 Diesel - 1100cc - Seat Frame

The seat frame on the 2018 Diesel - 1100cc supports the operator’s seat and contributes to overall comfort and stability. If the seat frame is damaged or worn, it may need replacement for safety and support. At BadBoyMowerParts.com, we carry a complete inventory of Bad Boy Mower Parts to replace or upgrade your seat frame. Our Bad Boy Mower Part diagrams help you quickly identify the correct components for your model. We provide only top-tier Bad Boy Lawn Mower Parts to ensure long-lasting durability. Shopping Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can upgrade your seat frame without added shipping costs.

Bad Boy Mower Parts Lookup

2018 Diesel - 1100cc - Seat Frame
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 069-8054-00 069-8054-00 - Brake Handle Kit
$119.41
2 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
3 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
4 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
5 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
6 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
8 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
9 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
13 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
14 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
15 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
16 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
18 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
19 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
20 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
21 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
22A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
22 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
23 034-1000-00 034-1000-00 - Spring Cushion (See Models Used On For Detail)
$28.39
24 077-6000-00 077-6000-00 - Momentary Start Switch Preheat Button for Diesel
$21.39
25 014-6000-00 014-6000-00 - Start Switch Boot - Diesel
$6.59
26 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
27 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
28 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
29 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
30 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
31 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
32 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
33 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
34 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
35 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
36 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
37 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
38 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
39 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
40 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
41 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
42 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
43 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
44 014-2009-00 014-2009-00 - Cooler Cover (See Models Used On For Details)
$117.94
45 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
46 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
47 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
48 070-2005-00 070-2005-00 - Pigtail for a Grammer Seat (See Models Used On For Details)
$42.58
49 064-8081-00 064-8081-00 - Seat Cable
$15.60
50 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
51 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
53 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
54 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
58 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
60 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
61 071-4055-17 071-4055-17 - Black Grammer Seat w/Seatbelt Use w/seat with ROPS (obsolete)
use part #071-6065-22
$829.99

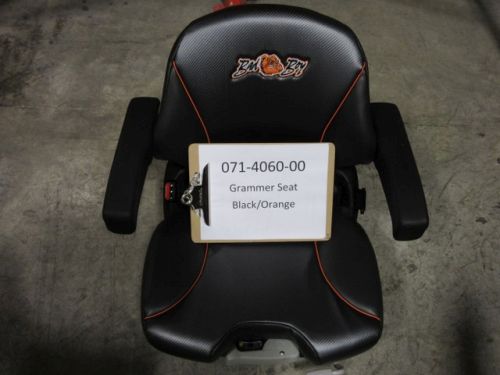

62 071-4060-00 071-4060-00 - Black/Orange Grammer Seat
$1060.21
63 071-4053-00 071-4053-00 - Seat Belt Kit-Grammer Seats (See Models Used On For Details)
$109.99

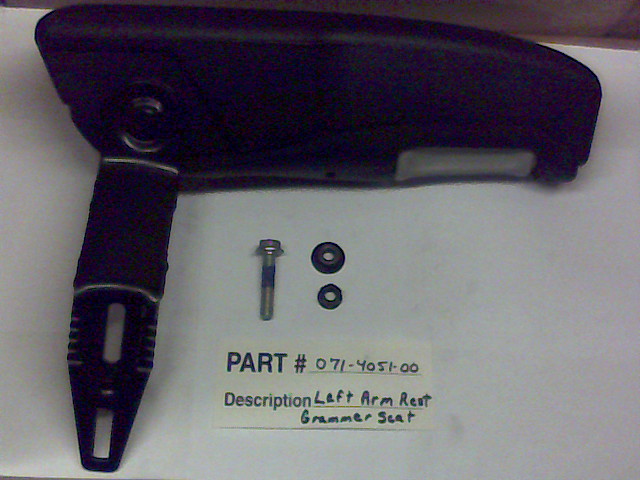

64 071-4051-00 071-4051-00 - Left Armrest Kit-Grammer Seat
$116.70
65 071-4052-00 071-4052-00 - Right Armrest Kit-Grammer Seat
$96.29

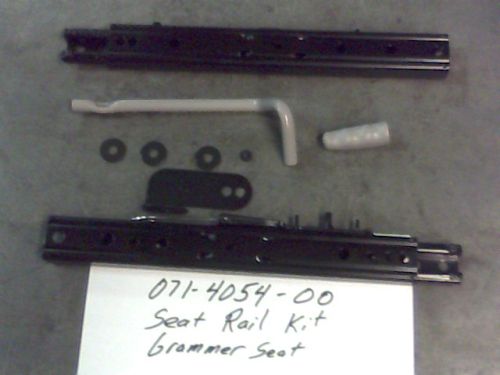

66 071-4054-00 071-4054-00 - Seat Rails for Grammer Seat(2)
$109.46

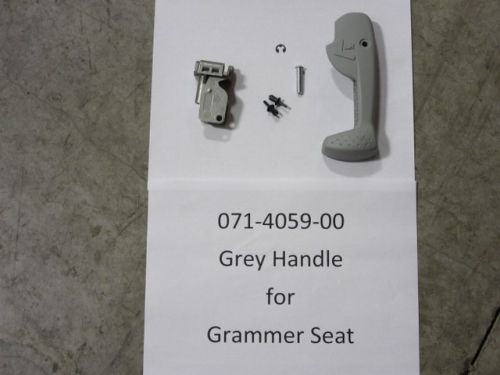

67 071-4059-00 071-4059-00 - Grey Handle for Grammer Seat
$60.98
68 071-4071-00 071-4071-00 - Black Seat Cushion for the 071-4055-17
$150.99
69 071-4072-00 071-4072-00 - Black Backrest Cushion for the 071-4055-17
$139.99

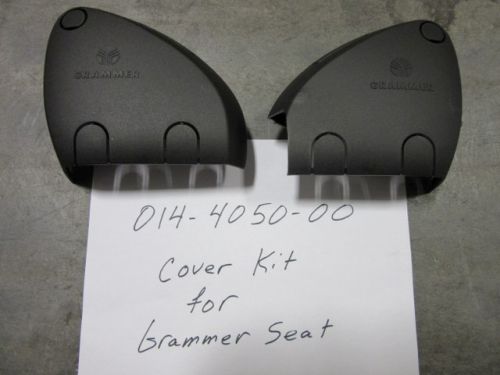

70 014-4050-00 014-4050-00 - Black Plastic Cover Kit forGrammer Seat (Both Sides)
$35.30
