2018 Diesel - 1100cc - Spindle Assembly

2018 Diesel - 1100cc - Spindle Assembly

The spindle assembly on the 2018 Diesel - 1100cc is crucial for blade rotation and a smooth, even cut. If your mower deck isn’t performing properly, worn or damaged spindles may be the cause. At BadBoyMowerParts.com, we carry a full selection of Bad Boy Mower Parts to replace or upgrade your spindles. Our Bad Boy Mower Part diagrams make it easy to find the right spindle assembly for your deck. We provide only high-quality Bad Boy Lawn Mower Parts to ensure durability and performance. When you shop Bad Boy Parts Online, you’ll also benefit from Free Shipping On Orders Over $100, making maintenance and repairs more affordable.

Bad Boy Mower Parts Lookup

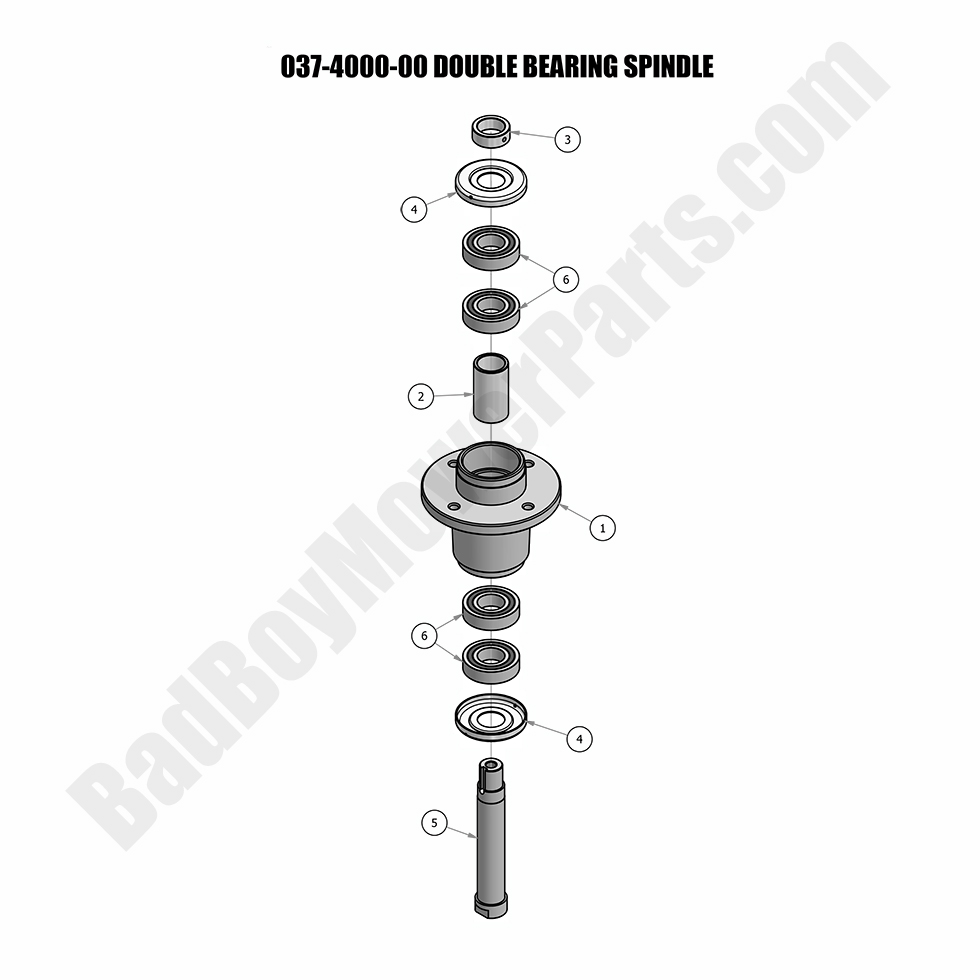

2018 Diesel - 1100cc - Spindle Assembly
  Position Number SKU Product Title Price
1.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
3 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
6 037-6029-00 037-6029-00 - Spindle Bearing (See Models Used On For Details)
$42.58
