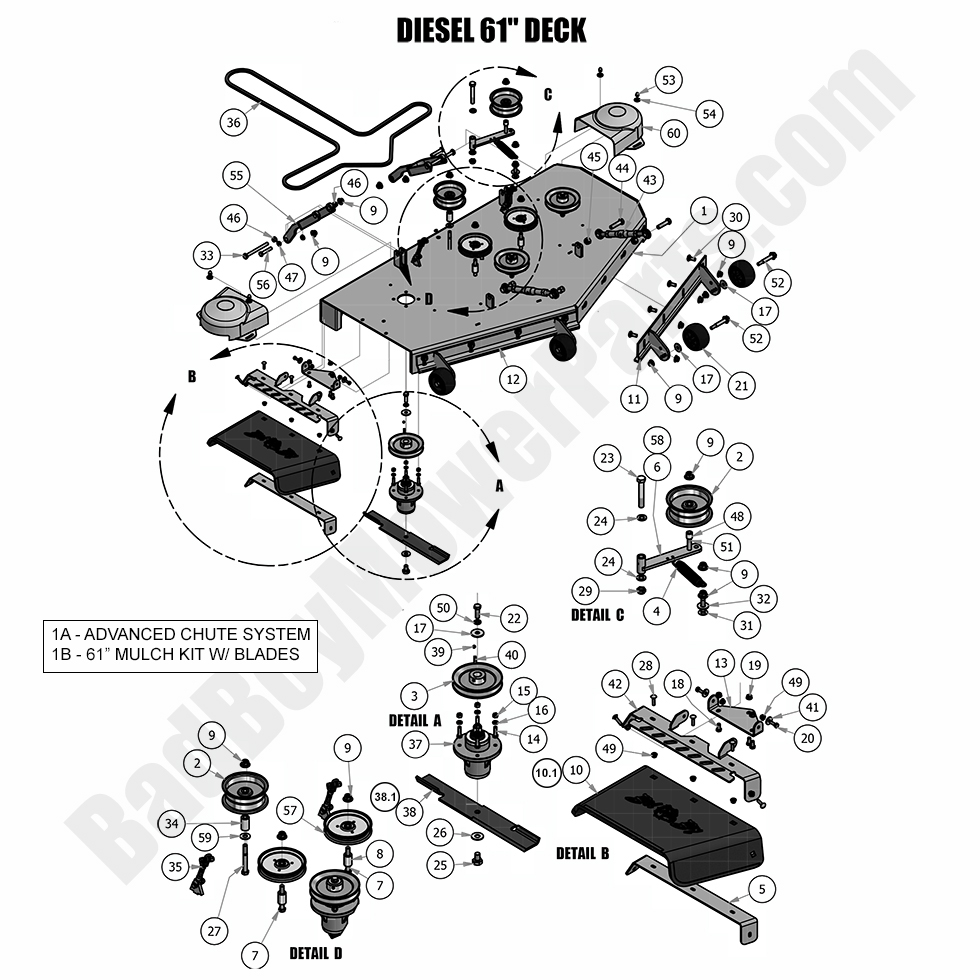

2018 Diesel - 1500cc - 61" Deck Assembly

2018 Diesel - 1500cc - 61" Deck Assembly

The 2018 Diesel - 1500cc 61" Deck Assembly is essential for a smooth, precise cut. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts to keep your deck operating efficiently. Whether you need spindles, pulleys, or belts, our Bad Boy Mower Part diagrams help identify the right components for seamless repairs. Finding Bad Boy Lawn Mower Parts specifically for your 61" deck is simple with our user-friendly website. Shopping for Bad Boy Parts Online ensures that you get the correct parts without hassle. A well-maintained 2018 Diesel - 1500cc 61" Deck Assembly delivers optimal cutting performance, improving efficiency and lawn quality. Our team is here to assist with any technical concerns or compatibility questions. Plus, with Free Shipping On Orders Over $100, you save on essential components. Trust BadBoyMowerParts.com for durable and reliable deck assembly parts to keep your mower in top shape

Bad Boy Mower Parts Lookup

2018 Diesel - 1500cc - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0261-50 210-0261-50 - 2017-2018 61" Mulch Kit w/Blades (obsolete)
use part #210-0361-00
$318.45
2 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
3 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
4 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
5 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
6 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
7 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
8 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
10.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
10 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
11 060-6220-00 060-6220-00 - 61 Adjustable Deck Front (Left Gate) (See Models Used On For Detail)
$103.99
12 060-6210-00 060-6210-00 - 61 Adjustable Deck Front (Right Gate) (See Models Used On For Detail)
$103.99
13 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
15 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
17 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
17 060-6130-00 060-6130-00 - 2012-2018 61" AOS Diesel (35hp, 1500CC) Deck Shell
$1199.99
18 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
19 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
20 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
21A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
21 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
22 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
23 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
26 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
27 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
28 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
29 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
30 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
31 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
32 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
33 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
34 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
35 047-4000-00 047-4000-00 - 4 - Link Adjustable Deck Hanger - Pup Models (obsolete)
use part #046-6048-98
$32.09
36 041-0236-00 041-0236-00 - B236 Deck Belt for 61" 35hp Diesel (2012-2020 Only)
$109.99
37 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
38.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
38 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
39 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
40 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
41 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
42 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
43 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
44 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
45 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
46 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
47 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
48 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
49 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
50 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
51 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
52 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
53 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
54 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
55 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
56 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
57 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
58 039-6945-98 039-6945-98 - Deck Idler Assy
$78.08
59 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
60 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
