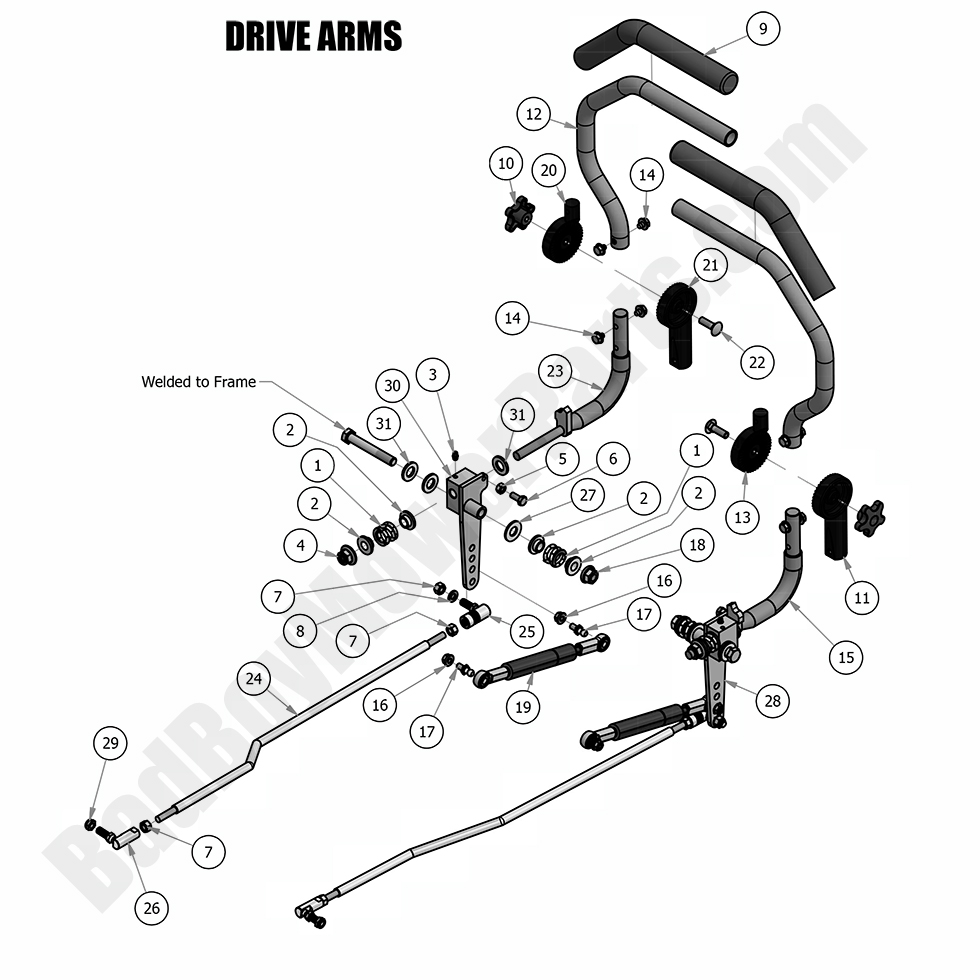

2018 Diesel - 1500cc - Drive Arms

2018 Diesel - 1500cc - Drive Arms

The 2018 Diesel - 1500cc Drive Arms play a crucial role in your mower’s maneuverability and performance. At BadBoyMowerParts.com, we provide durable Bad Boy Mower Parts to keep your drive arms functioning properly. Our Bad Boy Mower Part diagrams make it easy to find the right drive arm components for smooth operation. Using high-quality Bad Boy Lawn Mower Parts prevents excessive wear and ensures precision control. Shopping for Bad Boy Parts Online gives you access to genuine replacement parts designed specifically for your 2018 Diesel - 1500cc model. Whether you need bushings, bolts, or full arm replacements, we have the right parts available. Regular inspections and timely replacements help maintain your mower’s responsiveness. Our expert team is available to assist with any installation or troubleshooting questions. Plus, we offer Free Shipping On Orders Over $100, making essential repairs more affordable. Trust BadBoyMowerParts.com for all your drive arm needs.

Bad Boy Mower Parts Lookup

2018 Diesel - 1500cc - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
6 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
8 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
10 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
11 031-9015-70 031-9015-70 - Right Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
12 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
12a 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
12b 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
13 031-9016-70 031-9016-70 - Right Upper Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
14 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
15 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
17 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
18 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
19 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
20 031-9017-70 031-9017-70 - Left Upper Steering Arm Adjuster-Black (See Models Used On For Details)
$53.24
21 031-9014-70 031-9014-70 - Left Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
22 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
23 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
24 035-6050-00 035-6050-00 - 35HP Cat Diesel Steering Push Rod
$40.61
25 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
26 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
27 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
28 027-2017-00 027-2017-00 - Steering Block Assembly-Right (See Models Used On For Details)
$35.30
29 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
30 027-2018-00 027-2018-00 - Steering Block Assembly-Left (See Models Used On For Details)
$35.30
31 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
