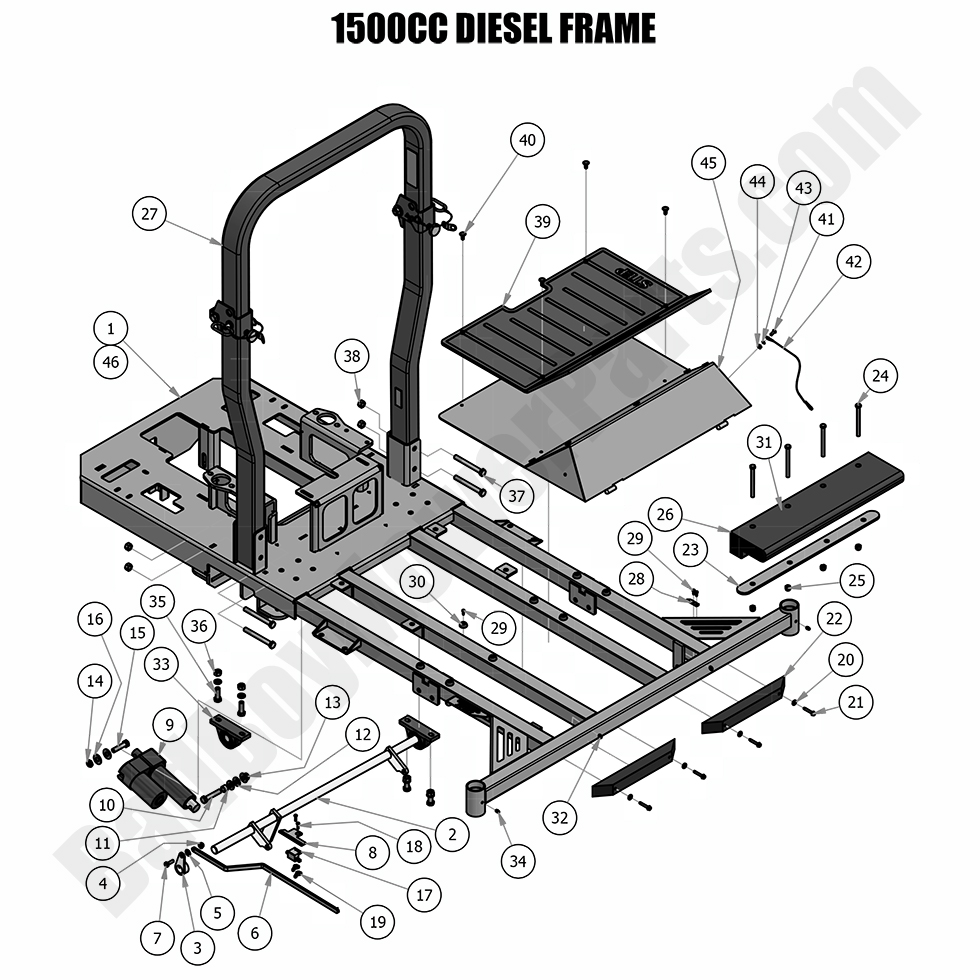

2018 Diesel - 1500cc - Frame

2018 Diesel - 1500cc - Frame

The 2018 Diesel - 1500cc Frame is the foundation of your mower, providing strength and durability. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts to keep your mower’s frame in top condition. Our detailed Bad Boy Mower Part diagrams help you locate structural components, ensuring proper repairs. Using genuine Bad Boy Lawn Mower Parts prevents long-term damage and extends your mower’s lifespan. Shopping for Bad Boy Parts Online ensures you receive compatible, high-strength parts designed for your 2018 Diesel - 1500cc. From brackets and supports to complete frame assemblies, we provide everything needed for structural integrity. Regular inspections help identify cracks or weak points before they become serious problems. Our expert team can assist with recommendations and installation tips. Plus, we offer Free Shipping On Orders Over $100, making maintenance more affordable. Keep your mower strong and reliable with frame parts from BadBoyMowerParts.com

Bad Boy Mower Parts Lookup

2018 Diesel - 1500cc - Frame
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5550-00 070-5550-00 - 2012-2020 Diesel 4 cyl 72 inch Frame
$1399.99
2 028-7920-00 028-7920-00 - Actuator Bar (See Models Used On For Detail)
$116.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
6 028-5203-00 028-5203-00 - Height Indicator (See Models Used On For Detail)
$28.39
7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
8 039-2008-00 039-2008-00 - Deck Stop Bracket 2008
$11.34
9 035-7033-00 035-7033-00 - Actuator
$408.75
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
14 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
15 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
16 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
17 077-5300-00 077-5300-00 - Deck Stop Switch
$9.89
18 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
19 013-2000-00 013-2000-00 - 10-24 Wing Nut
$2.99
20 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
21 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
22 029-7037-00 029-7037-00 - 14" Bumper
$42.79
23 028-1000-00 028-1000-00 - Diesel Weight Bar Bracket (See Models Used On For Details)
$14.97
24 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
25 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
26 088-2000-00 088-2000-00 - 58 lb Diesel Weight
$229.99
27 089-0003-00 089-0003-00 - 2016-2020 Diesel 2x3 Folding ROPS
$765.00
28 058-2000-00 058-2000-00 - 2006-Present Floor Panel Stop
$7.34
29 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
30 029-4010-00 029-4010-00 - Button Bumper
$2.99
31 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
32 019-2050-00 019-2050-00 - Brass Washer for Weld-on Hinge
$2.99
33 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
34 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
35 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
36 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
37 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
38 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
39 081-2007-00 081-2007-00 - Floor Mat - Diesel Models (See Models Used On For Details)
$66.76
40 040-6090-00 040-6090-00 - Ratchet Fastener - Floorboard (obsolete)
use part #040-6080-00
$2.99
41 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
42 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
43 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
44 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
45 079-6000-00 079-6000-00 - 2007-2020 Floor Panel (See Models Used On For Details)
$145.95
46 070-5520-00 070-5520-00 - 2007-2020 Diesel 4cyl Frame Suspension
$2099.99
