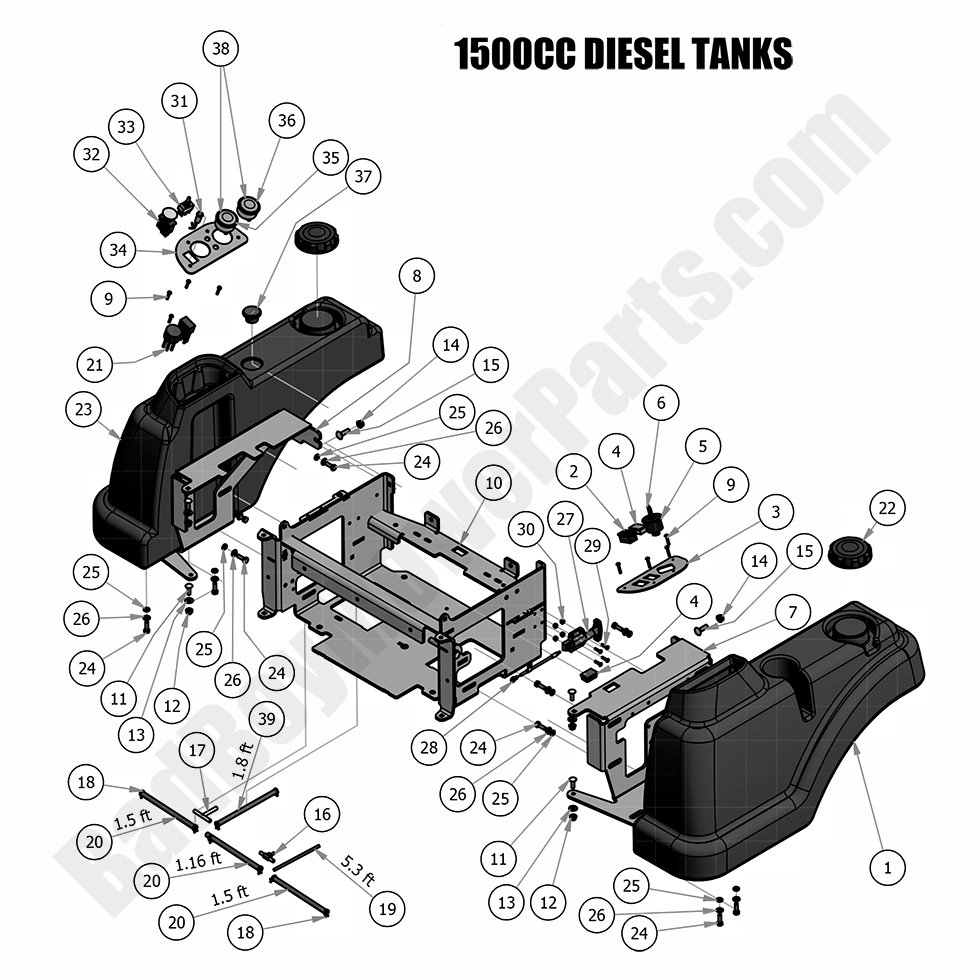

2018 Diesel - 1500cc - Fuel Tanks

2018 Diesel - 1500cc - Fuel Tanks

The 2018 Diesel - 1500cc Fuel Tanks are essential for reliable performance and extended run times. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts to keep your fuel system in peak condition. Our Bad Boy Mower Part diagrams make it easy to identify the correct fuel tank components, ensuring a perfect fit. Using genuine Bad Boy Lawn Mower Parts prevents leaks, contamination, and fuel inefficiency. Shopping for Bad Boy Parts Online ensures you get the exact fuel tank needed for your 2018 Diesel - 1500cc without delays. Whether replacing a damaged tank or upgrading to a larger capacity, we have the right solutions. Proper maintenance, including checking for cracks or leaks, helps extend the life of your fuel system. Our knowledgeable team is available for technical support and installation advice. Plus, enjoy Free Shipping On Orders Over $100, making replacements more affordable. Trust BadBoyMowerParts.com for fuel tank replacements.

Bad Boy Mower Parts Lookup

2018 Diesel - 1500cc - Fuel Tanks
  Position Number SKU Product Title Price
1 067-3000-00 067-3000-00 - Diesel/AOS Fuel Tank - Left
$509.99
2 083-4014-00 083-4014-00 - Diesel Hourmeter
$62.40
3 079-3402-00 079-3402-00 - Left Diesel Instrument Panel (See Models Used On For Details)
$22.71
4 018-1040-00 018-1040-00 - Light Plug
$2.99
5 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
6 042-9000-00 042-9000-00 - Ignition Key
$4.06
7 031-2010-00 031-2010-00 - 72 Tank Supports- Left
$59.91
8 031-2011-00 031-2011-00 - 72 Tank Support- Right (See Models Used On For Details)
$59.91
9 018-2015-00 018-2015-00 - 10-32 x 1 Button Head Bolt
$2.99
10 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
11 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
12 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
13 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
14 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
17 073-8068-00 073-8068-00 - Fuel Line T
$9.70
18 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
19 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
20 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
21 086-0035-00 086-0035-00 - Harness-28/35 Diesel w/Plastic Tank
$463.10
22 066-8090-00 066-8090-00 - Diesel Fuel Cap-3.5 inch Neck
$39.86
23 067-3001-00 067-3001-00 - Diesel/AOS Fuel Tank - Right
$214.99
24 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
25 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
26 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
27 039-2016-00 039-2016-00 - T Handle Seat Release (See Models Used On For Details)
$28.32
28 064-0002-00 064-0002-00 - T-Handle Seat Release Cable
$23.53
29 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
30 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
31 089-1000-00 089-1000-00 - Oil Light
$12.63
32 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
33 078-8077-00 078-8077-00 - Joystick - Deck Lift
$42.79
34 079-3405-00 079-3405-00 - Right Diesel Control Panel (See Models Used On For Details)
$17.11
35 086-7001-00 086-7001-00 - 2" Water Temperature Gauge (See Models Used On For Details)
$100.71
36 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge (See Models Used On For Details)
$100.71
37 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
38 086-7002-00 086-7002-00 - Pigtail-2" Faria Gauge-2012
$28.32
39 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
