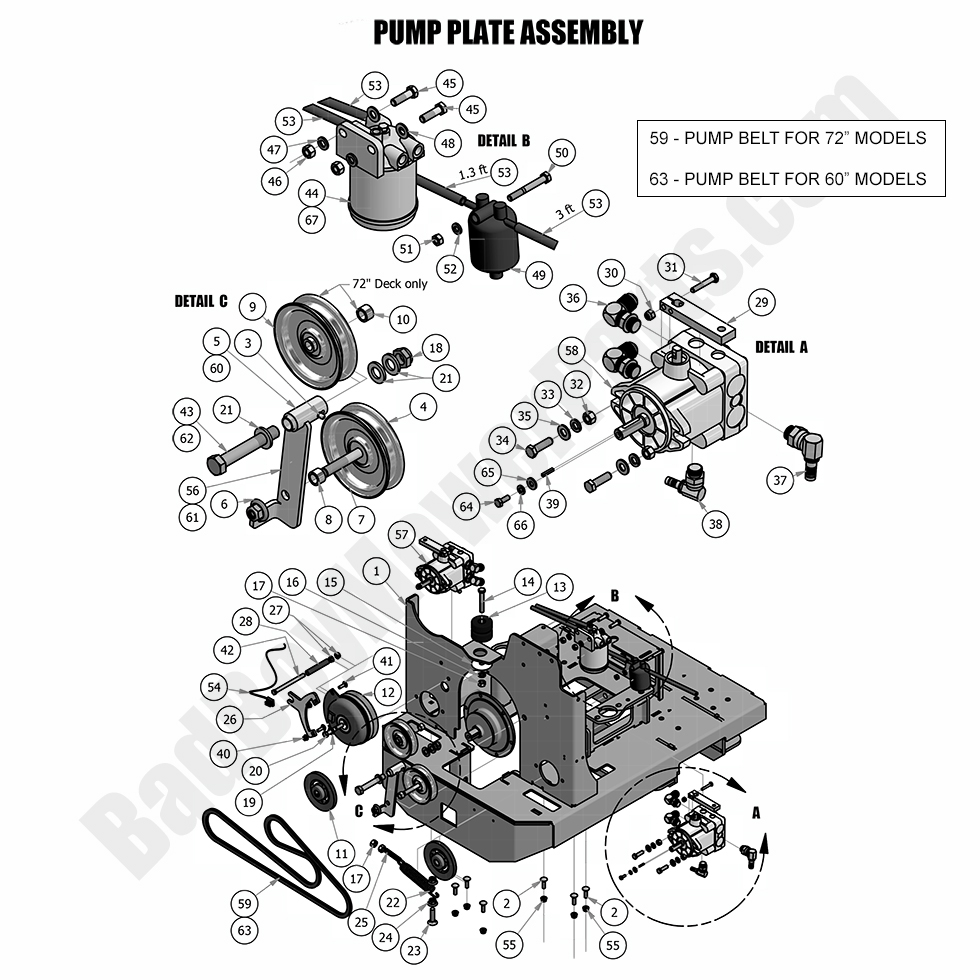

2018 Diesel - 1500cc - Pump Plate Assembly

2018 Diesel - 1500cc - Pump Plate Assembly

The 2018 Diesel - 1500cc Pump Plate Assembly is a crucial component for your mower’s hydraulic system. At BadBoyMowerParts.com, we carry a full selection of Bad Boy Mower Parts designed to keep your mower’s pump system functioning properly. Our Bad Boy Mower Part diagrams make it easy to find the exact parts needed for repairs. Using high-quality Bad Boy Lawn Mower Parts ensures durability and prevents performance issues. Shopping for Bad Boy Parts Online allows you to quickly find and order the correct pump plate assembly for your 2018 Diesel - 1500cc. Routine maintenance and timely replacements help prevent costly repairs and downtime. Our expert team is available to assist with installation questions and troubleshooting. Plus, we offer Free Shipping On Orders Over $100, making it easier to maintain your hydraulic system. Trust BadBoyMowerParts.com for all your pump plate assembly needs

Bad Boy Mower Parts Lookup

2018 Diesel - 1500cc - Pump Plate Assembly
  Position Number SKU Product Title Price
2 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
3 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
5 039-5950-00 039-5950-00 - Pump Idler Bracket 60 Diesel
$32.65
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
8 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
9 033-4050-00 033-4050-00 - 5" V Idler 35hp Diesel
$37.79
10 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
11 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
12 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch
$399.00
13 032-4000-00 032-4000-00 - Rubber for Rear Diesel Motor Mount
$76.53
15 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
16 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
17 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
19 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
20 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
21 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
22 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
23 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
25 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
26 057-5910-10 057-5910-10 - 2010-2020 Diesel PTO Engager Holder
$22.71
27 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
28 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
29 031-5923-00 031-5923-00 - Pump Arm
$30.07
30 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
31 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 Hex Bolt
$2.99
32 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
33 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
34 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
35 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
36 024-2080-00 024-2080-00 - 90 Degree Adaptor-Diesel Models (See Models Used On For Details)
$9.67
37 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
38 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
39 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
40 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
41 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
42 018-7055-00 018-7055-00 - 3/8-16 x 5 Hex Bolt -
$2.99
43 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
44 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
45 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
49 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$150.99
50 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
51 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
52 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
53 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
54 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
55 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
56 039-5946-98 039-5946-98 - Pump Idler Bracket Assy Diesel
$56.77
57 050-5308-00 050-5308-00 - Left Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
58 050-5407-00 050-5407-00 - Right Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
59 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
60 039-5945-00 039-5945-00 - Diesel Pump Idler 72 (35HP)
$32.65
61 039-5945-98 039-5945-98 - Pump Idler 72" (35HP) Assy (See Models Used On For Details)
$56.77
62 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
63 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
64 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
65 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
66 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
67 063-2011-01 063-2011-01 - Perkins Fuel Filter
$26.96
