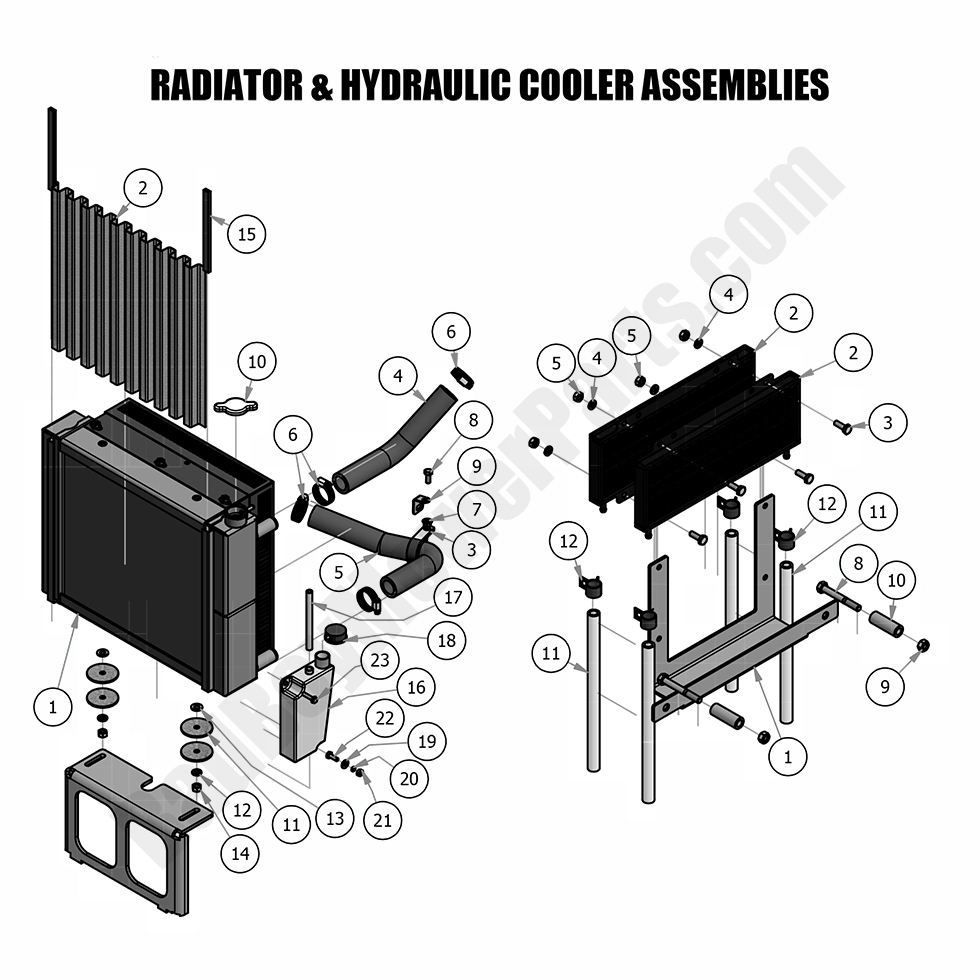

2018 Diesel - 1500cc - Radiator and Hydraulic Cooler

2018 Diesel - 1500cc - Radiator and Hydraulic Cooler

The 2018 Diesel - 1500cc Radiator and Hydraulic Cooler are essential for maintaining optimal engine temperature and hydraulic efficiency. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts to keep your cooling system running smoothly. Our Bad Boy Mower Part diagrams make it easy to find the correct radiator and cooler components for your mower. Using genuine Bad Boy Lawn Mower Parts prevents overheating and ensures your hydraulic system operates at peak performance. Shopping for Bad Boy Parts Online gives you quick access to durable replacement parts designed specifically for your 2018 Diesel - 1500cc. Regular maintenance, such as cleaning debris from the radiator and checking for leaks, extends the life of your mower. Our expert team is available to assist with any compatibility concerns or installation questions. Plus, take advantage of Free Shipping On Orders Over $100, making essential repairs more affordable. Trust BadBoyMowerParts.com for all your cooling system needs.

Bad Boy Mower Parts Lookup

2018 Diesel - 1500cc - Radiator and Hydraulic Cooler
  Position Number SKU Product Title Price
1 061-5000-00 061-5000-00 - Radiator - Diesel Models (See Models Used On For Details)
$999.99
2 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
3 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
4 051-3000-00 051-3000-00 - 2010-2020 Top Radiator Hose - Diesel
$22.03
5 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
6 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
10 015-0104-00 015-0104-00 - CAT Diesel Radiator Cap
$31.22
11 019-5050-00 019-5050-00 - 3/8 X 2-1/4 OD Fibre Washer
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 084-4015-00 084-4015-00 - Rubber Trim
$10.99
16 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89
17 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99
18 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
19 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
20 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
21 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
22 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
23 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
