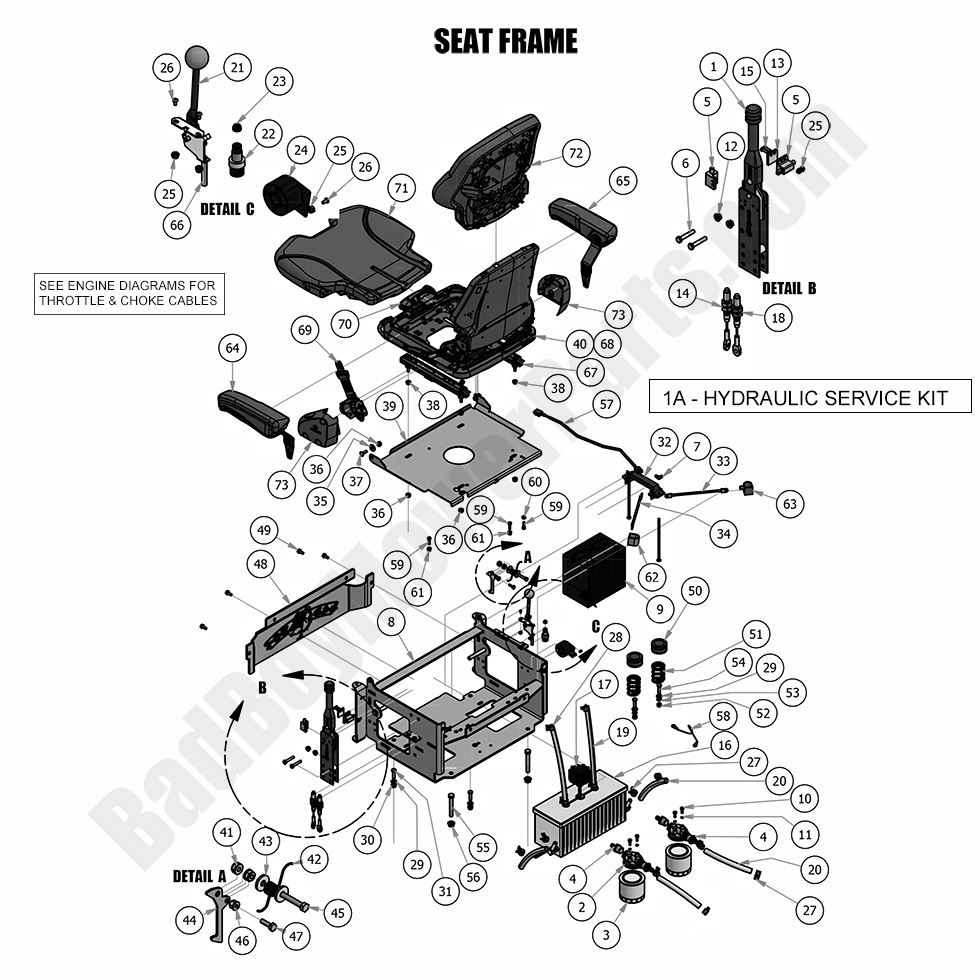

2018 Diesel - 1500cc - Seat Frame

2018 Diesel - 1500cc - Seat Frame

A sturdy 2018 Diesel - 1500cc Seat Frame is essential for operator comfort and mower stability. At BadBoyMowerParts.com, we provide durable Bad Boy Mower Parts to ensure your seat frame remains secure and reliable. Our Bad Boy Mower Part diagrams help you identify the correct components for repairs or replacements. Using high-quality Bad Boy Lawn Mower Parts prevents unnecessary wear and ensures long-lasting durability. Shopping for Bad Boy Parts Online allows you to find seat frame parts designed specifically for your 2018 Diesel - 1500cc, ensuring a perfect fit. A properly maintained seat frame enhances comfort, reducing fatigue during long mowing sessions. Our expert team is available to answer any installation questions and provide support. Plus, we offer Free Shipping On Orders Over $100, making seat frame replacements more affordable. Trust BadBoyMowerParts.com to keep your seat frame strong and comfortable for every mowing job.

Bad Boy Mower Parts Lookup

2018 Diesel - 1500cc - Seat Frame
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 069-8054-00 069-8054-00 - Brake Handle Kit
$119.41
2 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
3 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
4 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
5 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
6 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
7 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
8 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
12 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
13 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
14 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
15 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
17 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
18 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
19 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
20 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
21A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
21 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
22 077-6000-00 077-6000-00 - Momentary Start Switch Preheat Button for Diesel
$21.39
23 014-6000-00 014-6000-00 - Start Switch Boot - Diesel
$6.59
24 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
25 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
26 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
27 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
28 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
29 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
30 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
31 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
32 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
33 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
34 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
35 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
36 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
37 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
39 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
40 071-4055-17 071-4055-17 - Black Grammer Seat w/Seatbelt Use w/seat with ROPS (obsolete)
use part #071-6065-22
$829.99
42 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
44 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
45 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
46 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
47 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
48 014-2009-00 014-2009-00 - Cooler Cover (See Models Used On For Details)
$117.94
49 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
50 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
51 034-8045-00 034-8045-00 - Seat Spring
$20.49
52 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
53 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
54 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
55 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
56 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
57 070-2005-00 070-2005-00 - Pigtail for a Grammer Seat (See Models Used On For Details)
$42.58
58 064-8081-00 064-8081-00 - Seat Cable
$15.60
59 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
60 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
62 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
63 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
64 071-4051-00 071-4051-00 - Left Armrest Kit-Grammer Seat
$116.70
65 071-4052-00 071-4052-00 - Right Armrest Kit-Grammer Seat
$96.29
67 071-4054-00 071-4054-00 - Seat Rails for Grammer Seat(2)
$109.46
68 071-4060-00 071-4060-00 - Black/Orange Grammer Seat
$1060.21
69 071-4053-00 071-4053-00 - Seat Belt Kit-Grammer Seats (See Models Used On For Details)
$109.99
70 071-4059-00 071-4059-00 - Grey Handle for Grammer Seat
$60.98
71 071-4071-00 071-4071-00 - Black Seat Cushion for the 071-4055-17
$150.99
72 071-4072-00 071-4072-00 - Black Backrest Cushion for the 071-4055-17
$139.99
73 014-4050-00 014-4050-00 - Black Plastic Cover Kit forGrammer Seat (Both Sides)
$35.30
