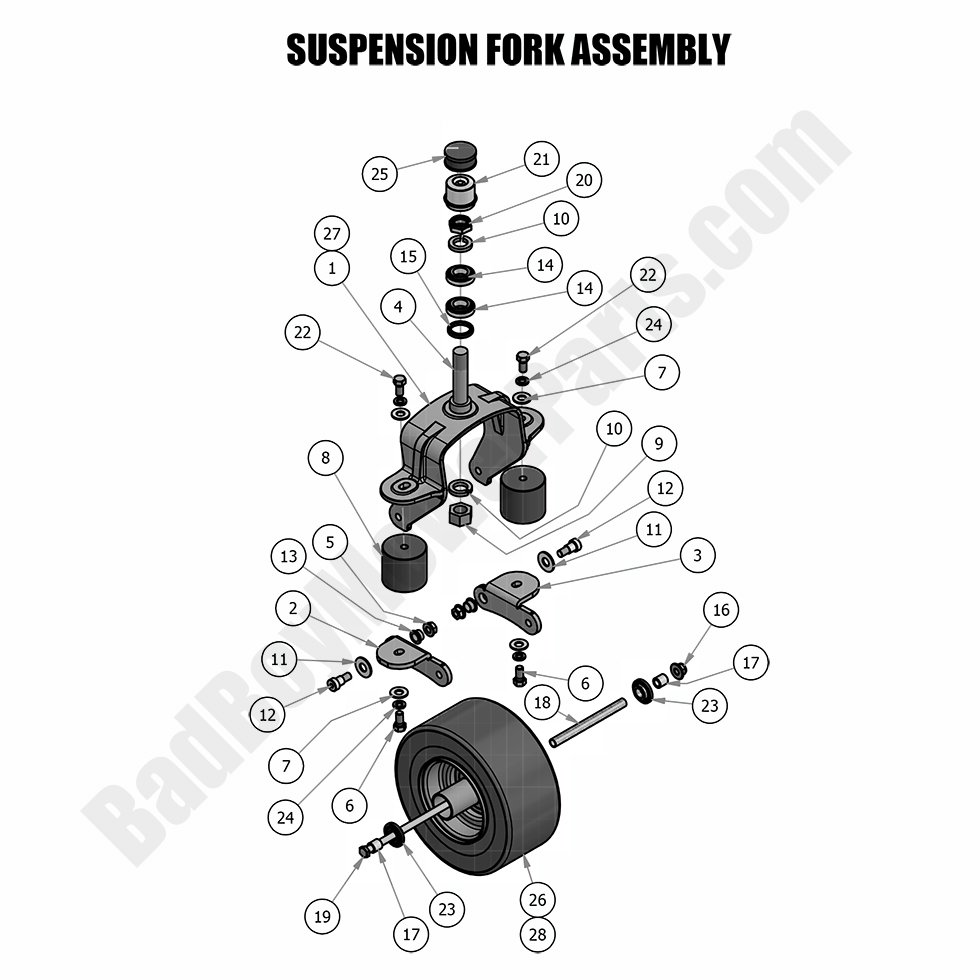

2018 Diesel - 1500cc - Suspension Fork Assembly

2018 Diesel - 1500cc - Suspension Fork Assembly

The 2018 Diesel - 1500cc Suspension Fork Assembly provides essential stability and smooth handling while mowing. At BadBoyMowerParts.com, we offer top-quality Bad Boy Mower Parts to keep your suspension system performing optimally. Our Bad Boy Mower Part diagrams make identifying the correct suspension fork components simple. Using genuine Bad Boy Lawn Mower Parts prevents excessive wear, improving ride comfort and control. Shopping for Bad Boy Parts Online ensures you get durable suspension forks designed for your 2018 Diesel - 1500cc, guaranteeing a perfect fit. Regular inspections and timely replacements help maintain your mower’s smooth operation, reducing shocks and vibrations. We offer Free Shipping On Orders Over $100, making maintenance more affordable. Keep your ride stable and comfortable with high-quality suspension fork assemblies from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Diesel - 1500cc - Suspension Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2020 Diesel Suspension Fork Top/Side Combo
$263.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
8 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
9 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
10 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
11 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
12 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
13 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
14A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
14 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
15A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
15 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
18 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
19 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
20 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
21 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
22 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
23 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
24 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
25 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
26 022-1050-00 022-1050-00 - 13 x 6.50-6 No-Flat Tire and Wheel Assembly
$177.99
27 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
