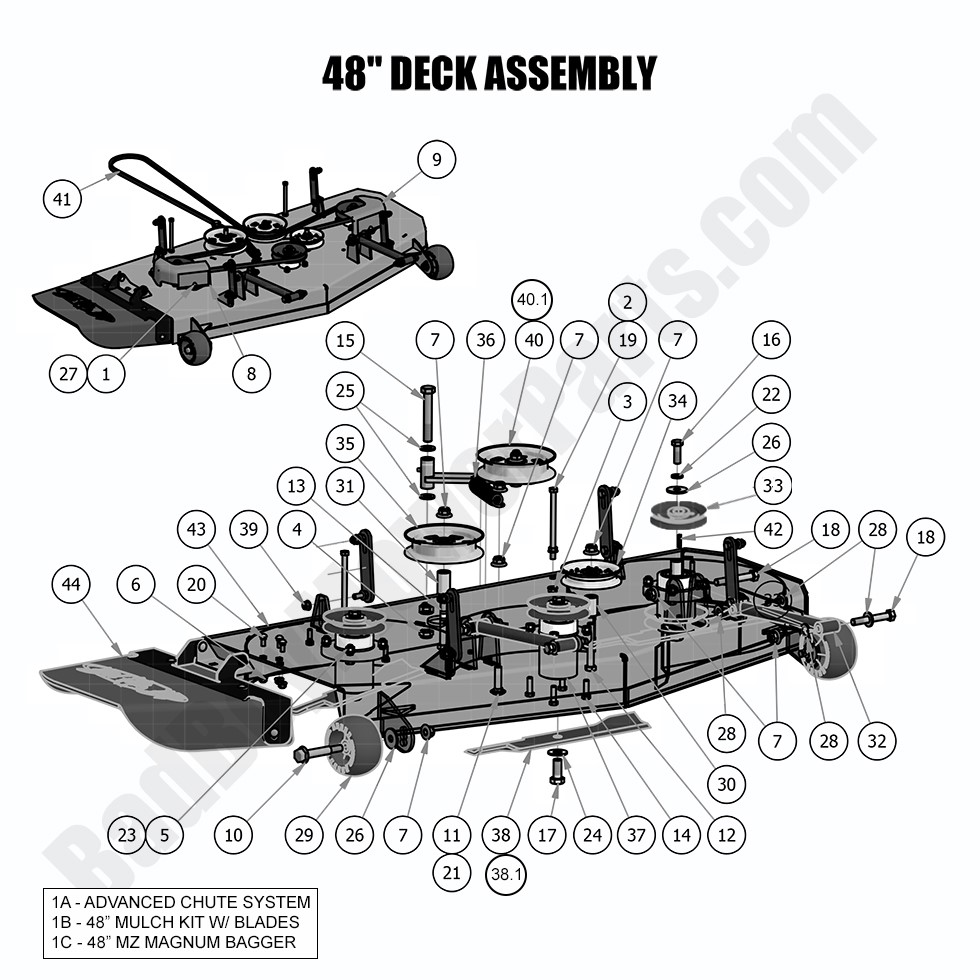

2018 MZ - 48" Deck Assembly

2018 MZ - 48" Deck Assembly

At BadBoyMowerParts.com, we offer high-quality 2018 MZ 48" Deck Assembly components that are essential for efficient and precise mowing. Our Bad Boy Mower Parts catalog features everything you need to keep your deck in optimal condition, including spindles, blades, and belts. The Bad Boy Mower Part Diagrams on our website help you identify the parts specific to your 48" deck, making it easy to select the right components. Whether you need a replacement part or are conducting maintenance, we have the Bad Boy Lawn Mower Parts to meet your needs. Shopping Bad Boy Parts Online is quick and convenient, and you’ll get your parts delivered directly to your door. Plus, enjoy Free Shipping On Orders Over $100, which helps save on delivery costs. Keep your 48" deck in peak condition with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 MZ - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1B 210-0148-50 210-0148-50 - 2017- 2025 MZ 48" Mulch Kit w/ Blades
$318.45
1C 088-1813-00 088-1813-00 - 48" MZ 2 Bagger (Fits 2017 - 2025 Models Only)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
19 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
20 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
21 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
24 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
25 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
28 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
29A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
29 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
30 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
31 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
32 028-0004-00 028-0004-00 - 2017-2021 ZT/MZ/MZ Magnum Deck Locator (obsolete)
use part #028-0004-22
$46.84
33 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
34 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
35 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
36 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
37 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
38.1 038-4827-00 038-4827-00 - 48" Gator Blade for MZ only
$21.99
38 038-4826-00 038-4826-00 - 48" High Lift Fusion Blade-MZ
$22.99
39 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
40.1 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
40 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
41 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
42 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
43 060-2448-00 060-2448-00 - 2017-2022 48" MZ Magnum Deck Shell Only
$839.99
44 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
