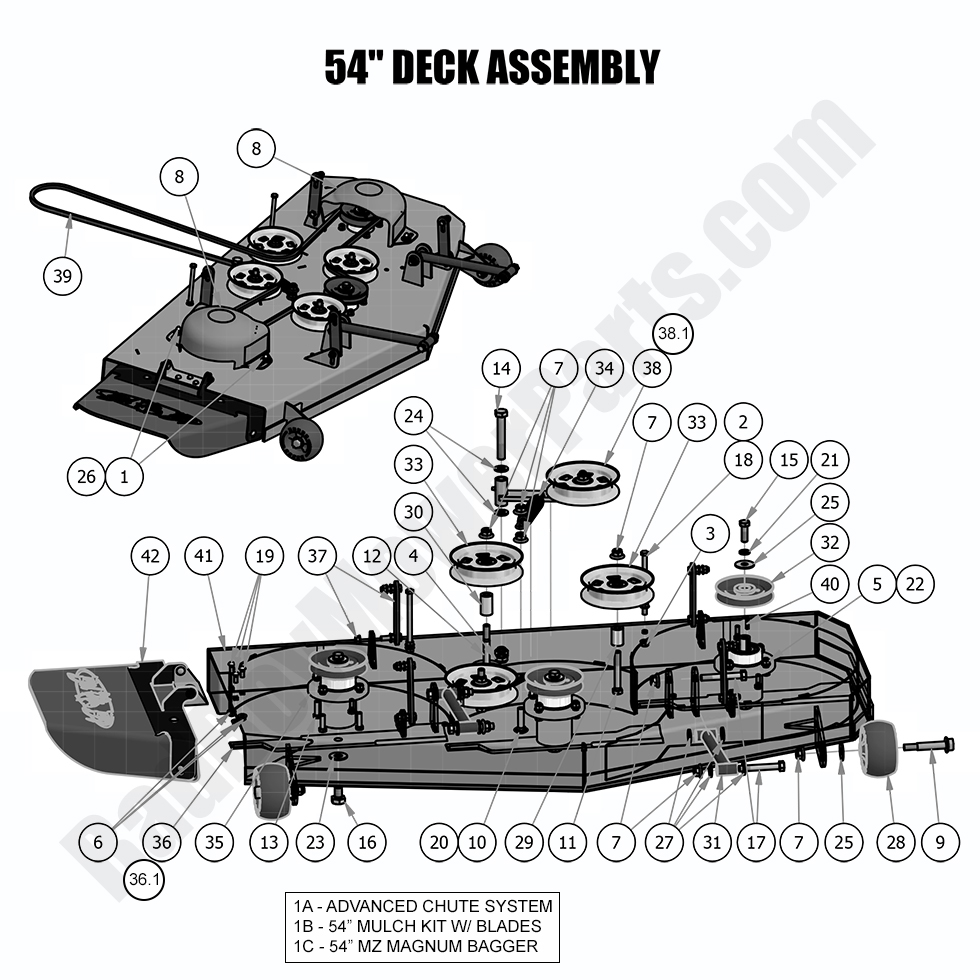

2018 MZ - 54" Deck Assembly

2018 MZ - 54" Deck Assembly

For your 2018 MZ 54" Deck Assembly, BadBoyMowerParts.com provides all the Bad Boy Mower Parts you need to keep your mower running smoothly. From deck spindles to blades, we have everything to maintain or repair your deck. Our Bad Boy Mower Part Diagrams allow you to easily identify the right parts for your deck. In addition to deck components, we also offer a wide range of Bad Boy Lawn Mower Parts to help with other repairs on your mower. Shopping Bad Boy Parts Online is fast and simple, and with Free Shipping On Orders Over $100, you can save on your purchase. Browse our selection and get the parts you need to keep your 54" deck in top shape.

Bad Boy Mower Parts Lookup

2018 MZ - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1B 210-0154-50 210-0154-50 - 2017-2025 54" MZ & 54" Avenger Mulch Kit w/Blades
$318.45
1C 088-1818-00 088-1818-00 - 54" MZ Magnum & 54" Avenger Bagger (See Models Used On For Details)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
14 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
18 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
19 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
20 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
23 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
26 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
27 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
28A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
28 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
29 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
30 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
31 028-0004-00 028-0004-00 - 2017-2021 ZT/MZ/MZ Magnum Deck Locator (obsolete)
use part #028-0004-22
$46.84
32 033-4890-00 033-4890-00 - Deck Pulley 2013-2025 54" MZ Magnum, 2020-2025 54" ZT Avenger
$31.17
33 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
34 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
35 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
36.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
36 038-0005-00 038-0005-00 - 54" MZ High Lift Fusion Blade
$22.99
37 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
38.1 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
38 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
39 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
40 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
41 060-2417-00 060-2417-00 - 2017-2022 54" MZ Magnum Deck Shell Only
$999.99
42 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
