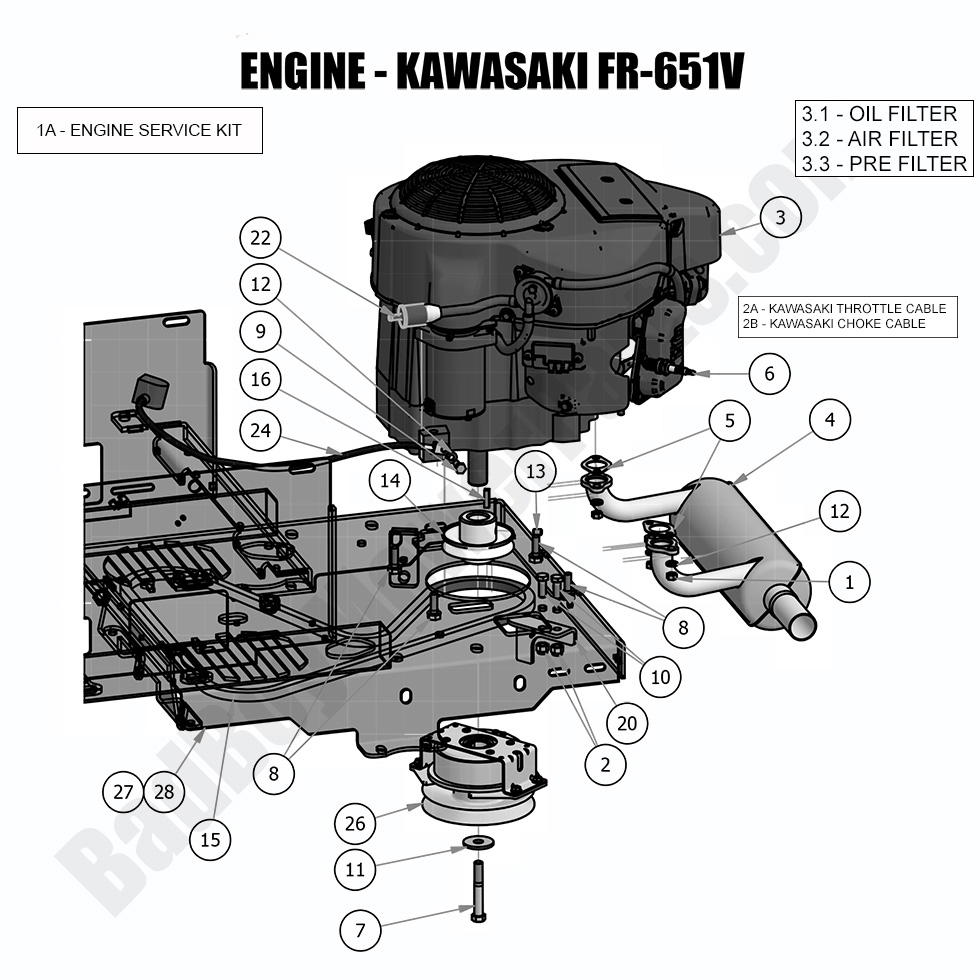

2018 MZ - Engine - Kawasaki FR651

2018 MZ - Engine - Kawasaki FR651

The 2018 MZ Engine - Kawasaki FR651 is a powerful and reliable engine, and BadBoyMowerParts.com offers all the Bad Boy Mower Parts needed to keep it running smoothly. Whether you're looking for replacement air filters, spark plugs, or carburetors, we have the high-quality parts that will ensure your engine performs at its best. Our Bad Boy Mower Part Diagrams make it easy to identify and order the right engine components. In addition to engine parts, we also offer a wide selection of Bad Boy Lawn Mower Parts for the rest of your mower. Shopping Bad Boy Parts Online is convenient and quick, with Free Shipping On Orders Over $100, saving you both time and money. Keep your 2018 MZ Engine - Kawasaki FR651 in optimal condition with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 MZ - Engine - Kawasaki FR651
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
3.1 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
3.2 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
3.3 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
3 015-0022-00 015-0022-00 - FR651V-S00-S Kawasaki Engine
$2389.06
4 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
5 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
6 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
7 018-0007-00 018-0007-00 - 7/16-20 x 3 Hex C/S GR 8
$2.99
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
10 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
11 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
12 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
14 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
14 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
15 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
16 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
20 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
22 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
24 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
26 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
27 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
28 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
