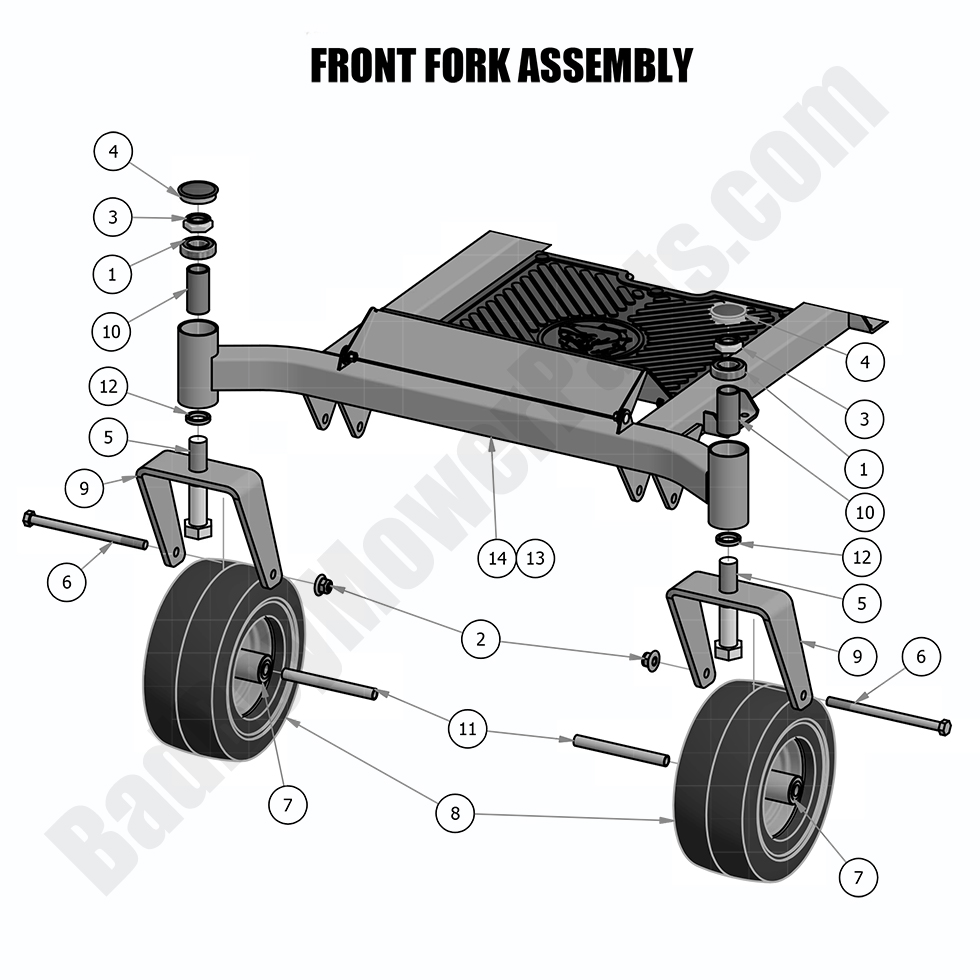

2018 MZ - Front Fork Assembly

2018 MZ - Front Fork Assembly

The 2018 MZ Front Fork Assembly plays an important role in the stability and maneuverability of your mower, and BadBoyMowerParts.com carries all the Bad Boy Mower Parts you need for replacement or repair. Our detailed Bad Boy Mower Part Diagrams help you identify the right parts to ensure your front fork assembly is properly maintained. Whether you're replacing the forks, bearings, or mounting hardware, we have everything required to keep your mower operating smoothly. We carry a wide range of Bad Boy Lawn Mower Parts for all components of your mower, and shopping Bad Boy Parts Online is easy and convenient. With Free Shipping On Orders Over $100, you can save on shipping costs while getting the best parts for your 2018 MZ Front Fork Assembly.

Bad Boy Mower Parts Lookup

2018 MZ - Front Fork Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
4 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
5 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69

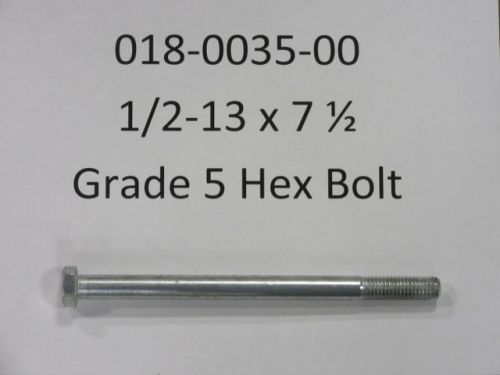

6 018-0035-00 018-0035-00 - 1/2-13 x 7 1/2 Hex Bolt
$4.83

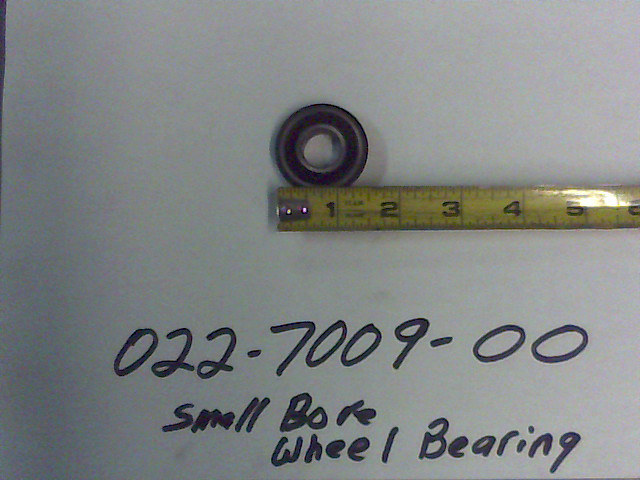

7 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
8 022-8049-00 022-8049-00 - 11x6.00-5 Front Assembly (One Tire and Rim Assy)
$99.39
9 023-0002-00 023-0002-00 - 2017-2025 Walkbehind & MZ Front Fork
$31.23
10 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04

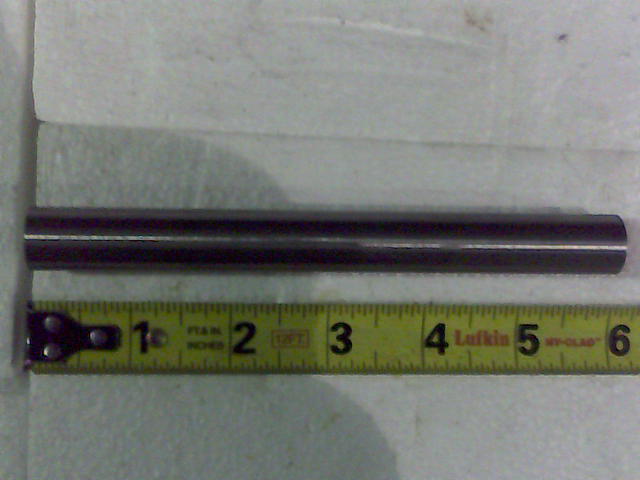

11 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
12 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41

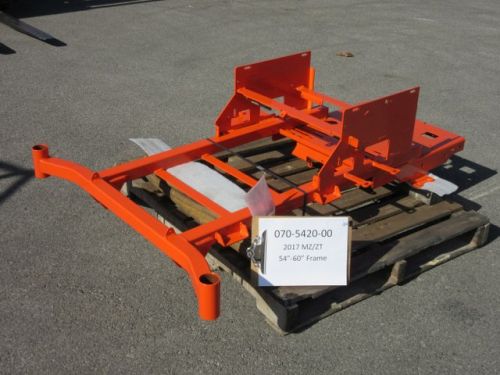

13 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
14 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
