2018 MZ - Fuel Tank & Electronics

2018 MZ - Fuel Tank & Electronics

When it comes to maintaining your 2018 MZ Fuel Tank & Electronics, BadBoyMowerParts.com has you covered with the Bad Boy Mower Parts you need. From the fuel tank to wiring, switches, and electronic components, we offer everything necessary for proper maintenance and repair. Our Bad Boy Mower Part Diagrams make it simple to identify the parts you need for your fuel system and electronics. Additionally, we offer a full selection of Bad Boy Lawn Mower Parts to ensure your mower remains in peak condition. Shopping Bad Boy Parts Online is fast and secure, and with Free Shipping On Orders Over $100, you can get the parts you need without paying extra for delivery.

Bad Boy Mower Parts Lookup

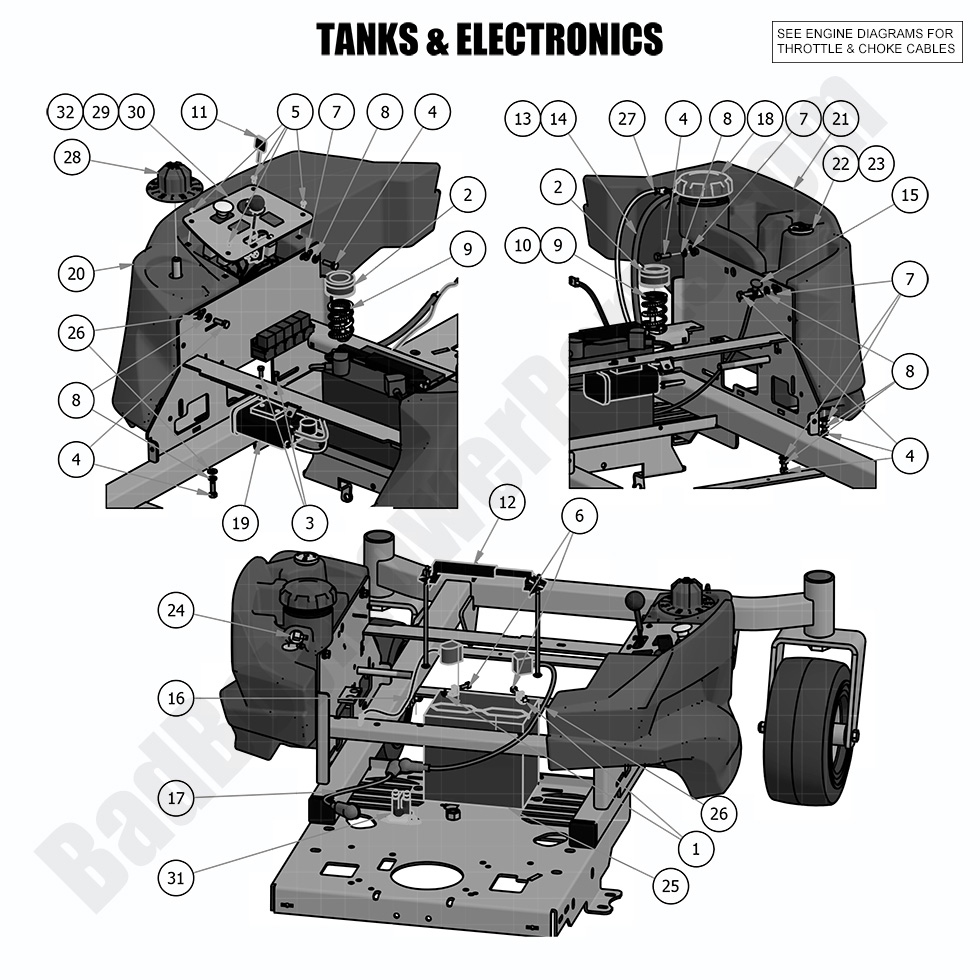

2018 MZ - Fuel Tank & Electronics
  Position Number SKU Product Title Price
1 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
2 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
3 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
4 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
5 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
6 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09

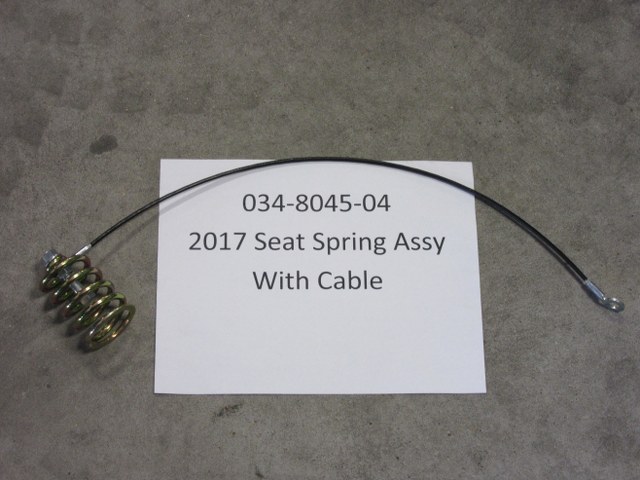

10 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09
11 042-9000-00 042-9000-00 - Ignition Key
$4.06
12 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49

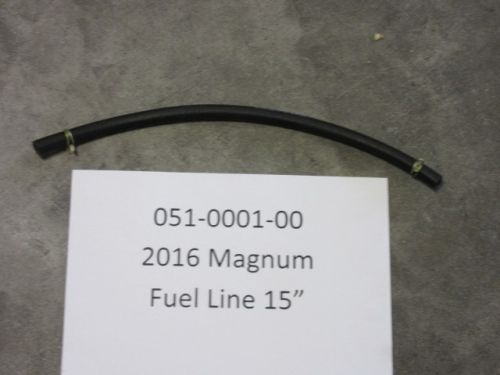

13 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
14 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
16 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
17 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
18 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
19 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
20 067-2080-50 067-2080-50 - Right Side Console (See Models Used On For Details)
$228.99
21 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
22 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
23 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
24 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
26 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
27 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
28 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
29 079-3460-01 079-3460-01 - 2017 - 2021 MZ Magnum Control Panel Assy.
$105.93
30 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
31 108-0001-00 108-0001-00 - Solenoid
$29.41
32 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
