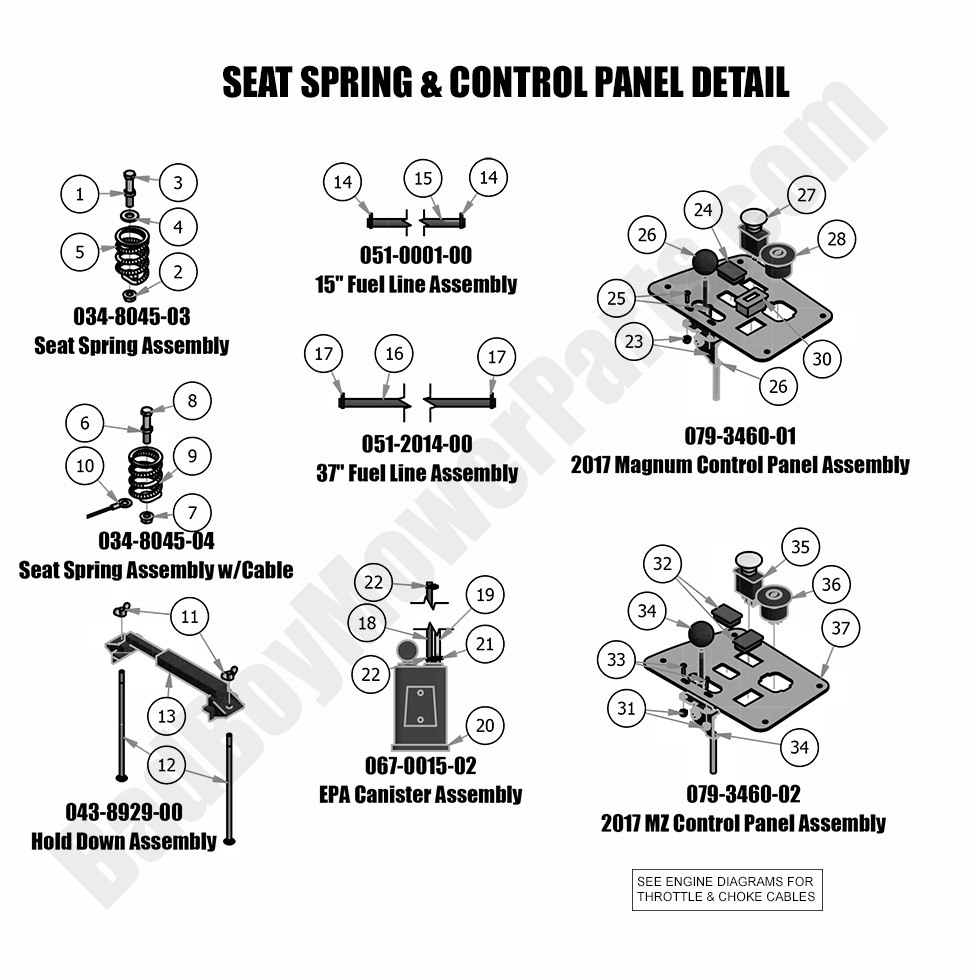

2018 MZ - Seat Spring & Control Detail

2018 MZ - Seat Spring & Control Detail

The 2018 MZ Seat Spring & Control Detail plays a crucial role in ride comfort and mower operation. BadBoyMowerParts.com offers all the Bad Boy Mower Parts necessary for maintaining or replacing your seat springs and control components. Whether you need new springs, bolts, or control levers, our selection ensures your mower stays comfortable and responsive. Our Bad Boy Mower Part Diagrams make it easy to find the correct parts for your seat assembly. Along with seat components, we stock a wide range of Bad Boy Lawn Mower Parts to keep your mower operating at its best. Shopping Bad Boy Parts Online is quick and hassle-free, and with Free Shipping On Orders Over $100, you can get the parts you need without extra cost. Keep your 2018 MZ Seat Spring & Control Detail in top shape with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 MZ - Seat Spring & Control Detail
  Position Number SKU Product Title Price
1.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
4 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
5 034-8045-00 034-8045-00 - Seat Spring
$20.49
6.0 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09
10 064-8081-00 064-8081-00 - Seat Cable
$15.60
11.0 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
11 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
12 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
14.0 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
14 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
15 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
16.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
16 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
18.0 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
18 051-2023-01 051-2023-01 - 3/16 Vinyl 53" EPA Line
$9.67
19 051-2027-01 051-2027-01 - 3/16 Clear 44" EPA Line
$7.25
20 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
21 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
22 072-8075-00 072-8075-00 - 8.6 Mm Hose Clamp
$3.62
23.0 079-3460-01 079-3460-01 - 2017 - 2021 MZ Magnum Control Panel Assy.
$105.93
23 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
24 018-1040-00 018-1040-00 - Light Plug
$2.99
25 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
27 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
28 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
30 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
31.0 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
37 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
