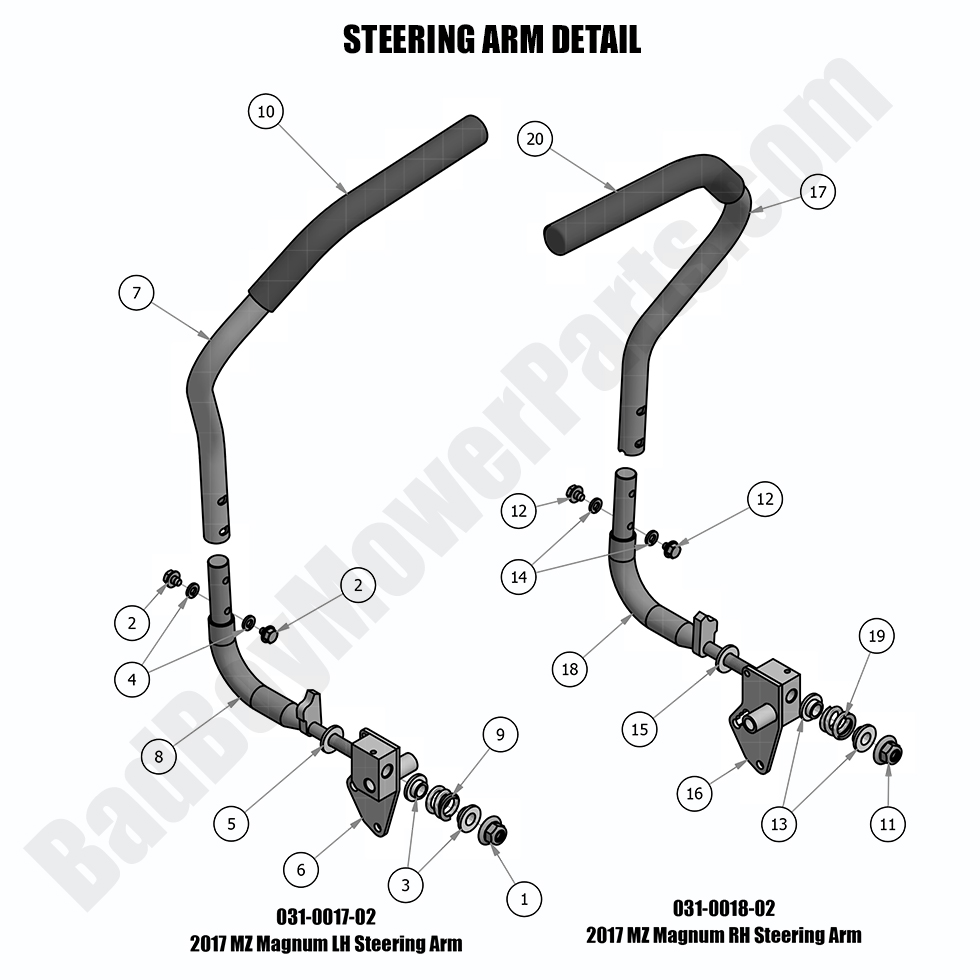

2018 MZ - Steering Arm Detail

2018 MZ - Steering Arm Detail

When it comes to maintaining your 2018 MZ Steering Arm Detail, BadBoyMowerParts.com has the Bad Boy Mower Parts required for repairs and replacements. Whether your steering arm is worn out or you need new bushings and bolts, we have high-quality parts that will restore your mower’s performance. Our Bad Boy Mower Part Diagrams make it easy to locate and order the right parts for your steering system. We also stock a full range of Bad Boy Lawn Mower Parts to ensure your mower operates smoothly. Shopping Bad Boy Parts Online is fast and simple, and with Free Shipping On Orders Over $100, you can save money while keeping your mower in top shape. Upgrade or replace your 2018 MZ Steering Arm Detail with reliable parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 MZ - Steering Arm Detail
  Position Number SKU Product Title Price
1.0 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1.1 031-0017-02 031-0017-02 - 2018-2023 MZ Magnum Left Steering Arm
$144.59
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
6 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
7 031-8850-70 031-8850-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$93.64
8 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
9 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
10 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
11.0 031-0018-02 031-0018-02 - 2018-2023 MZ Magnum Right Steering Arm
$144.59
16 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
17 031-8851-70 031-8851-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$93.64
