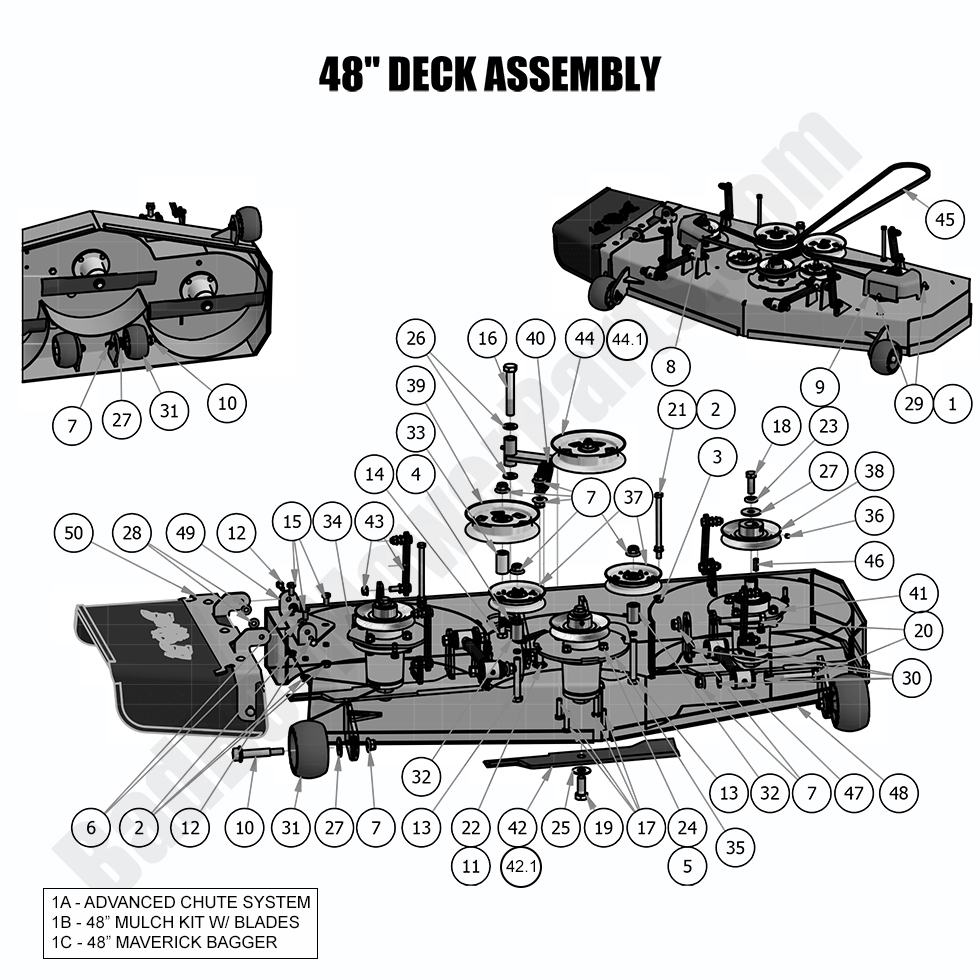

2018 Maverick - 48" Deck Assembly

2018 Maverick - 48" Deck Assembly

The 2018 Maverick 48" Deck Assembly is a key part of your mower's cutting performance, and finding the right parts for it is crucial. With Bad Boy Mower Parts diagrams available, locating each component of the deck assembly is easy and precise. We offer a complete range of Bad Boy Lawn Mower Parts to replace worn-out blades, belts, pulleys, and more, all specifically designed for the 48" deck. For convenience, shop for all your deck parts Bad Boy Parts Online, and enjoy the ease of shopping from home. At BadBoyMowerParts.com, we are proud to offer Free Shipping On Orders Over $100, making it even easier to keep your mower in excellent condition. Ensure your 48" deck continues to cut grass evenly and efficiently by trusting our top-quality parts.

Bad Boy Mower Parts Lookup

2018 Maverick - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
16 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
21 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
22 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
28 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
29 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
30 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
31A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
31 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
32 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
33 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
34 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
35 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
36 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
37 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
38 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
39 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
40 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
41 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
42.1 038-4827-00 038-4827-00 - 48" Gator Blade for MZ only
$21.99
42 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
43 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
44.1 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
44 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
45 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
46 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
47 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
48 060-4817-00 060-4817-00 - 48" Deck Shell (See Models Used On For Details)
$1059.99
49 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
50 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
