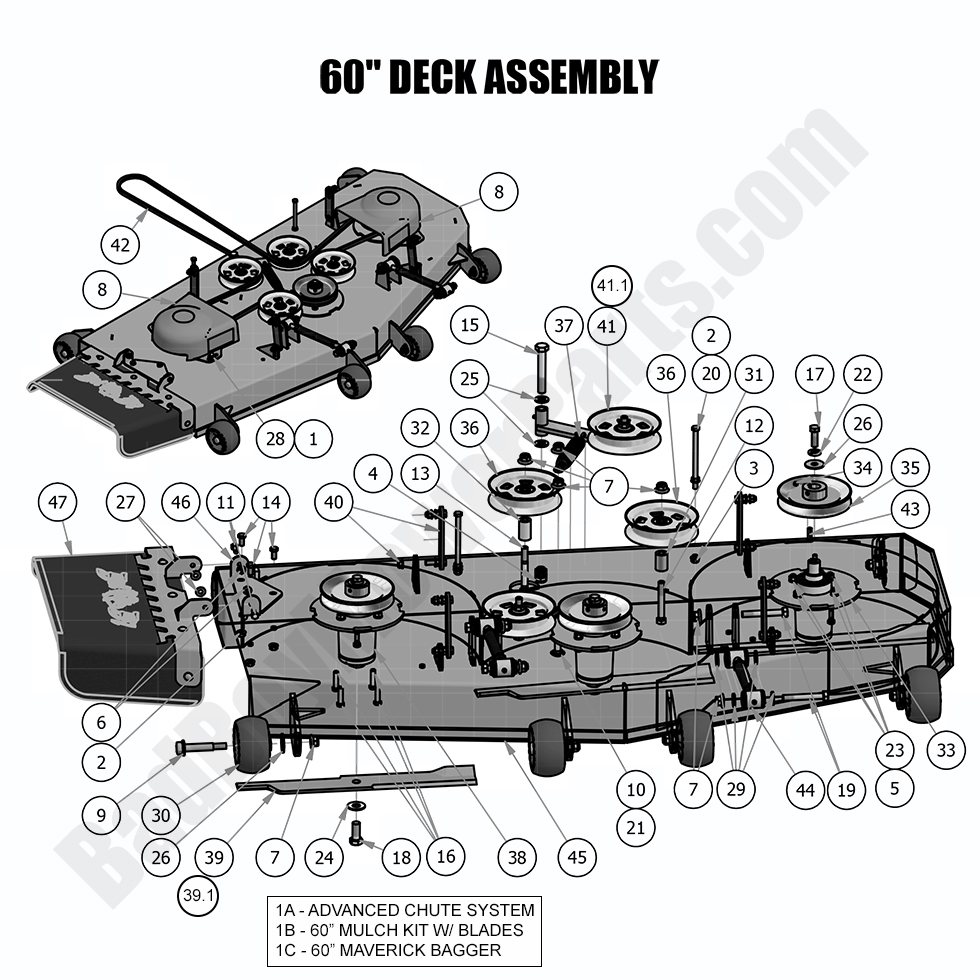

2018 Maverick - 60" Deck Assembly

2018 Maverick - 60" Deck Assembly

For the 2018 Maverick 60" Deck Assembly, having the right parts is essential for maintaining the performance and durability of your mower. At Bad Boy Mower Parts, we offer high-quality components that are specifically designed for your mower's deck. From the blades to the deck shell, all of our Bad Boy Lawn Mower Parts are built for long-lasting performance. By utilizing our Bad Boy Mower Part diagrams, you can easily find the correct parts and avoid costly mistakes. You can order all your necessary parts Bad Boy Parts Online, making the process quick and easy. Plus, with Free Shipping On Orders Over $100, we ensure that your parts are delivered directly to your door, so you can keep your 2018 Maverick running smoothly all season long.

Bad Boy Mower Parts Lookup

2018 Maverick - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0260-50 210-0260-50 - 2017-2025 60" Mulch Kit w/Blades (Not for MZ or Avenger)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
20 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
21 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
24 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
25 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
28 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
29 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
30A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
30 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
31 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
32 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
33 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
35 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
36 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
37 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
38 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
39.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
39 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
40 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
41.1 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
41 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
42 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
43 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
44 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
45 060-6017-00 060-6017-00 - 60" Deck Shell 2017-2022 ZT & 2018-2022 Maverick
$1399.99
46 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
47 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
