2018 Maverick - Engine - Kohler ZT740

2018 Maverick - Engine - Kohler ZT740

The Kohler ZT740 engine in your 2018 Maverick is designed for reliable power, but like any engine, it needs regular maintenance to keep it running smoothly. At Bad Boy Mower Parts, we offer a full range of Bad Boy Lawn Mower Parts specifically for the Kohler ZT740. From air filters to fuel pumps, our Bad Boy Mower Parts selection has you covered. Using our Bad Boy Mower Part diagrams, you can easily locate and identify the parts you need for the engine. Purchase your Bad Boy Parts Online from the comfort of your home, and don’t forget, we offer Free Shipping On Orders Over $100. Keep your 2018 Maverick performing at its best by shopping for the right parts at BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

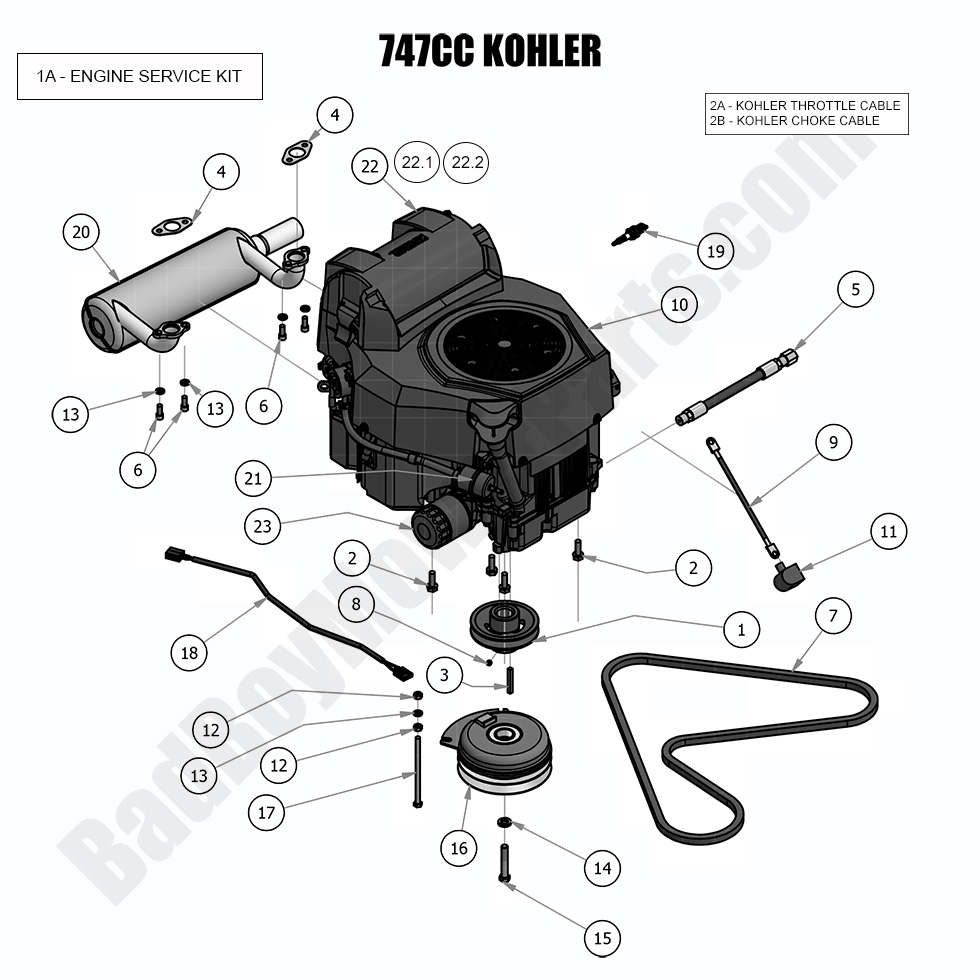

2018 Maverick - Engine - Kohler ZT740
  Position Number SKU Product Title Price
1A 063-2000-07 063-2000-07 - Kohler Confidant (ZT740) Engine Service Kit
$102.57
1 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
3 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
4 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
5 015-5401-00 015-5401-00 - Kohler/Briggs Oil Drain Valve
$35.48
6 018-8067-00 018-8067-00 - 5/16-18 X 3/4 SOCKET C/S
$2.99
7 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
8 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
9 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
10 015-2030-00 015-2030-00 - 25hp Kohler- ZT740-3048
$2799.00
11 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
12 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
13 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
14 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
15 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
16 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
17 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
18 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
19 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
20 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
21 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
22.1 063-5006-00 063-5006-00 - Kohler ZT740 Precleaner
$9.47
22.2 015-9080-00 015-9080-00 - Air Cleaner Cover - Kohler Confidant Only
$85.59
22 063-5005-00 063-5005-00 - Air Filter for Kohler ZT740
$50.28
23 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
