2018 Maverick - Gas Tank Assembly

2018 Maverick - Gas Tank Assembly

A properly functioning 2018 Maverick Gas Tank Assembly is crucial for your mower's performance, and BadBoyMowerParts.com is here to provide the best replacement parts for your needs. We offer a variety of gas tank assemblies specifically designed for your 2018 Maverick model, ensuring that your mower operates at full capacity. With our detailed Bad Boy Mower Part Diagrams, finding the correct gas tank and associated components is a breeze. As your go-to source for Bad Boy Mower Parts, we offer high-quality solutions for every part of your mower. Our catalog also features a broad selection of Bad Boy Lawn Mower Parts to keep your equipment in prime working condition. Plus, you can enjoy Free Shipping On Orders Over $100, making it more affordable to get your mower back in top shape. Visit BadBoyMowerParts.com today for all your gas tank assembly needs and more.

Bad Boy Mower Parts Lookup

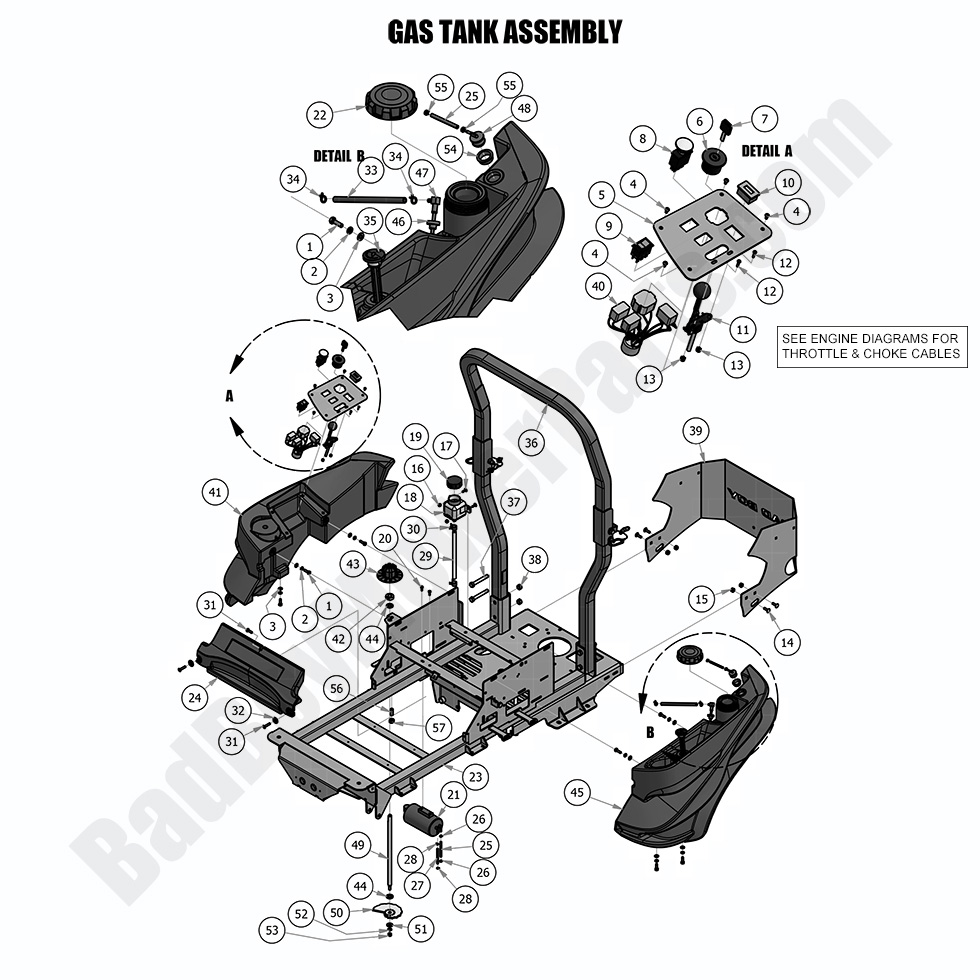

2018 Maverick - Gas Tank Assembly
  Position Number SKU Product Title Price
1 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
2 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
3 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
4 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99

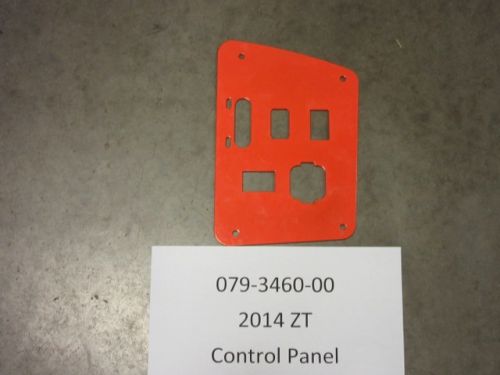

5 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
7 042-9000-00 042-9000-00 - Ignition Key
$4.06
8 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
9 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
10 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
12 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
13 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
14 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
16 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
17 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
18A 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
18 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
19 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
20 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
21 067-0020-00 067-0020-00 - Carbon Canister
$62.40
22 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
23 070-5490-00 070-5490-00 - 2016 Maverick Frame
$1099.99

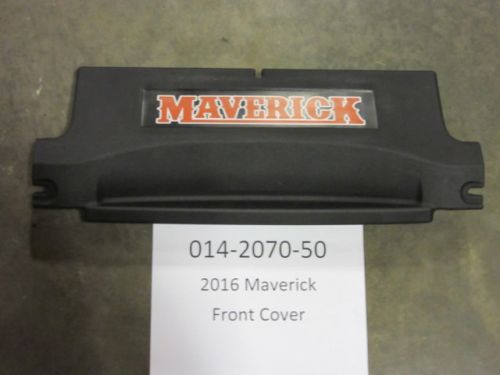

24 014-2070-50 014-2070-50 - Maverick Front Cover-Plastic
$58.80
25 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99

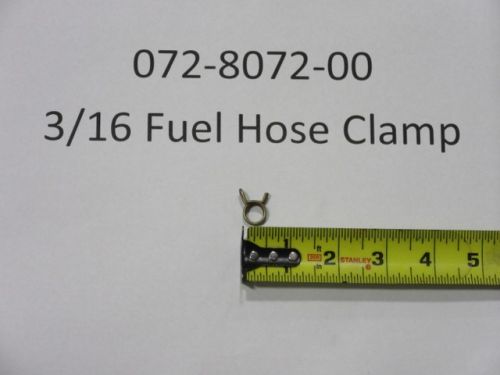

26 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
27 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
28 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99

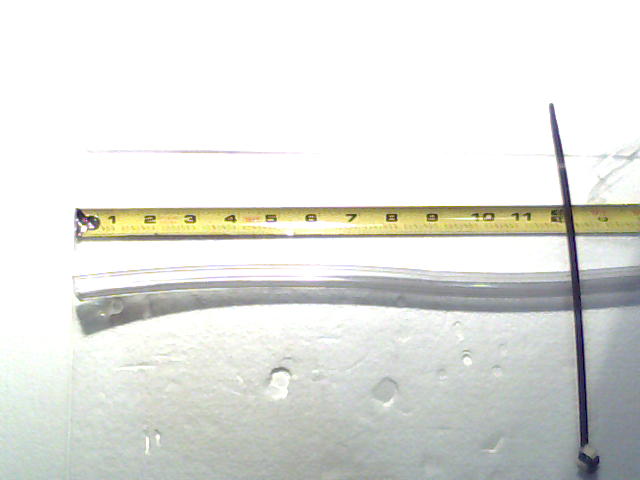

29 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
30 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99

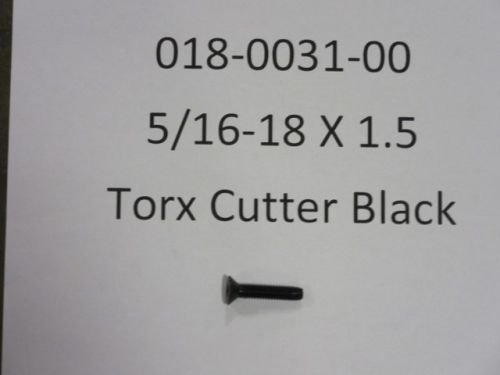

31 018-0031-00 018-0031-00 - 5/16-18 x 1.5 Torx Cutter-Blk
$4.39

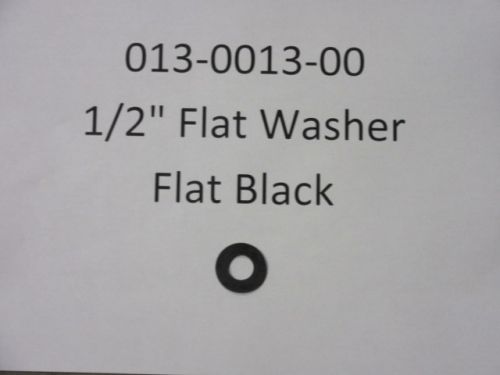

32 013-0013-00 013-0013-00 - 1/2 Flat Washer-Flat Black
$2.99
33 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
34 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
35 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00

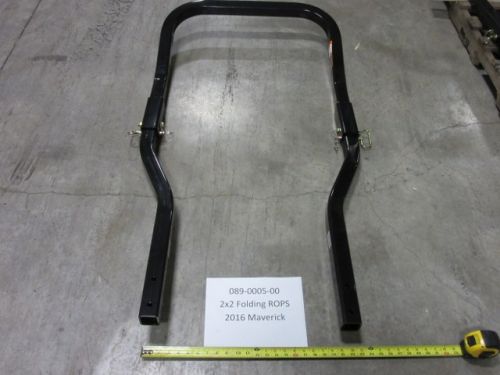

36 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
37 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
38 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99

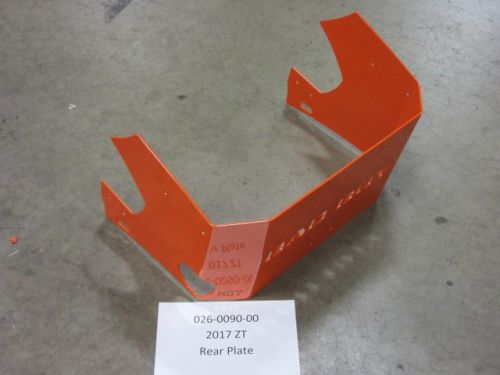

39 026-0090-00 026-0090-00 -Rear Plate (See Models Used On For Details)
$219.99
40 086-3050-17 086-3050-17 - 2010-2018 CZT/ZT/Maverick/Comp. Outlaw & 2016-2018 MZ/MZ Magnum Complete Harness
$299.99
41 067-2070-50 067-2070-50 - Right Side Console
$228.99
42 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
43 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
44 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
45 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
46 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
47 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
48 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
49 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
50 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
51 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
52 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
53 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
55 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
56 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
57 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
