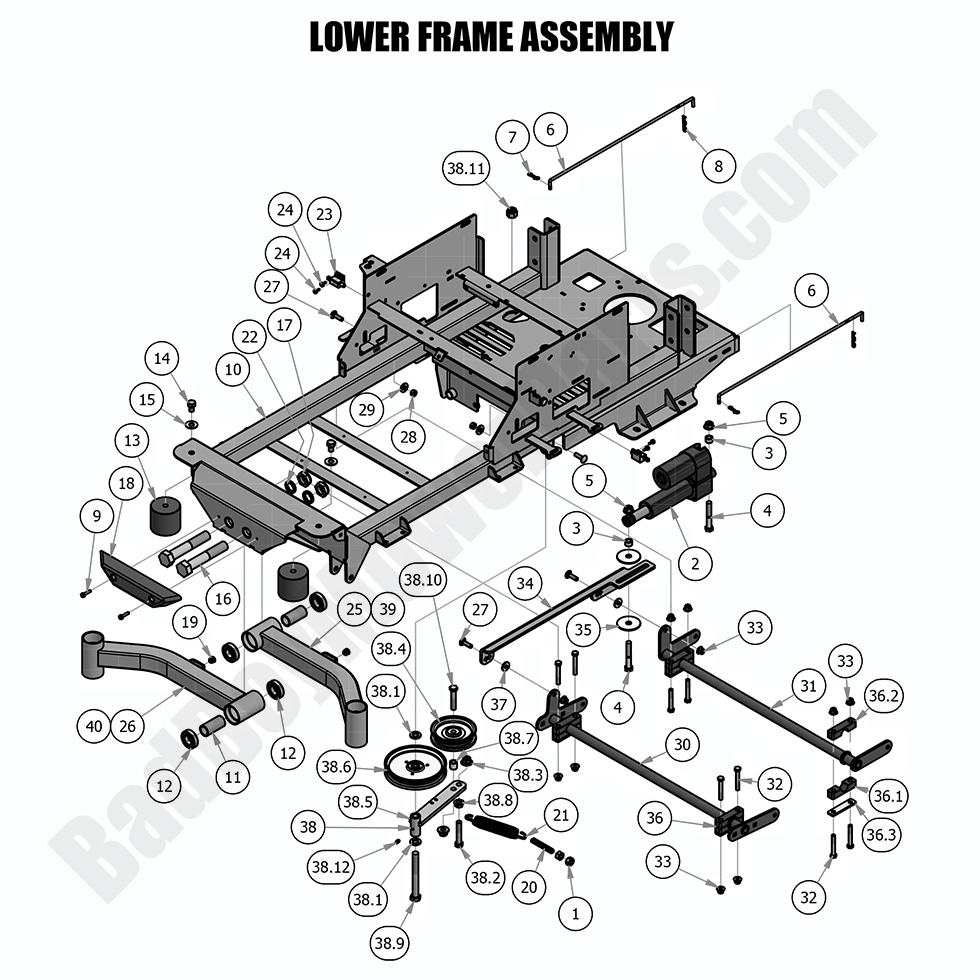

2018 Maverick - Lower Frame Assembly

2018 Maverick - Lower Frame Assembly

For a reliable 2018 Maverick Lower Frame Assembly, visit BadBoyMowerParts.com. Our extensive selection includes everything you need to maintain or replace the lower frame assembly for your 2018 Maverick mower. Whether you need a new frame or specific components like brackets, bolts, or welds, we provide high-quality Bad Boy Mower Parts designed for optimal performance. Our easy-to-read Bad Boy Mower Part Diagrams make locating the correct parts simple, so you can quickly get your mower back to working condition. At BadBoyMowerParts.com, we specialize in all Bad Boy Lawn Mower Parts, ensuring that you find what you need to keep your equipment running smoothly. We also offer Free Shipping On Orders Over $100, providing a convenient and cost-effective way to shop for mower parts online. Whether you’re fixing a small issue or replacing major components, you’ll find everything you need at BadBoyMowerParts.com for your 2018 Maverick Lower Frame Assembly.

Bad Boy Mower Parts Lookup

2018 Maverick - Lower Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
2 035-7033-00 035-7033-00 - Actuator
$408.75
3 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
7 044-2004-00 044-2004-00 - Bow Pin
$2.99
8 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
9 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
10 070-5490-18 070-5490-18 - 2018-2020 Maverick Frame
$1099.99
11 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
12 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
13 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
14 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
15 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
16 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
17 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
18 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
19 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
20 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
21 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
22 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
23 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
24 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
25 250-2800-00 250-2800-00 - 2018-2020 Maverick Front Arm Weldment-LH (obsolete)
use part #250-1801-21
$106.99
26 250-2850-00 250-2850-00 - 2018 Maverick Front Arm Weldment-RH
$70.57
27 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
28 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
29 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
30 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
31 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
32 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
33 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
34 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
35 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
36.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
36.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
36.2 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
36.3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
37 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
38.0 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
38.1 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
38.4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
38.5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
38.6 033-8000-00 033-8000-00 - 5 3/4 Pump Idler Pulley-5/8 Bore 2016-2025 Maverick
$35.48
38.7 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
38.8 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
38.9 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
38.10 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
38.11 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
38.12 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
39 250-2700-00 250-2700-00 - Suspension Arm LH No Longer Available
Obsolete.
