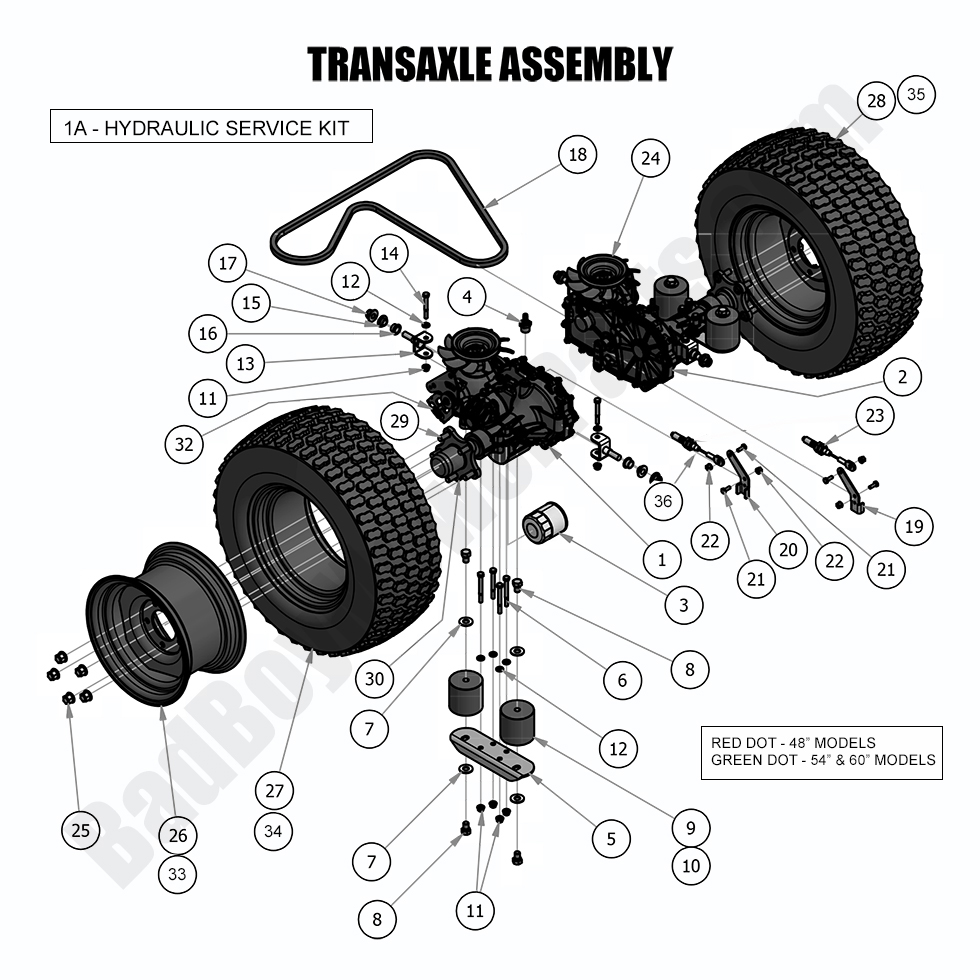

2018 Maverick - Transaxle Assembly

2018 Maverick - Transaxle Assembly

The 2018 Maverick Transaxle Assembly is an essential part of your mower’s drivetrain, and BadBoyMowerParts.com offers top-quality replacements for all your transaxle needs. Whether you need a full assembly or individual parts like gears, seals, or shafts, our website provides easy access to the exact Bad Boy Mower Parts you need. With our detailed Bad Boy Mower Part Diagrams, you can quickly identify the components that need to be replaced or serviced. As a trusted supplier of Bad Boy Lawn Mower Parts, we guarantee that our parts are durable and designed to meet the performance standards of your 2018 Maverick. Additionally, we offer Free Shipping On Orders Over $100, making it easy and affordable to get your mower back in working order. Visit BadBoyMowerParts.com today to find all your transaxle components and more for your 2018 Maverick.

Bad Boy Mower Parts Lookup

2018 Maverick - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 050-0075-00 050-0075-00 - 3200 Transaxle-EZT - Left (obsolete)
use part #050-0075-02
$799.99
2 050-0080-00 050-0080-00 - 3200 Transaxle-EZT-Right (obsolete)
use part #050-0080-02
$999.99
3 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
4 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
5 039-1306-00 039-1306-00 - EZT Rear Susp Transaxle Mount
$15.60
6 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
7 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
8 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
9 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
10 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
13 039-0001-00 039-0001-00 - Rear Transaxle Pivot Bracket
$15.60
14 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
15 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
16 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
19 039-1321-00 039-1321-00 - Brake Arm Ext Bracket Right Side
$8.01
20 039-1320-00 039-1320-00 - Brake Arm Extension Bracket [Maverick LH]
$6.04
21 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
22 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
23 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
24 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
25 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
26 022-5466-00 022-5466-00 - 12" Black Wheel-2016 & Up Maverick
$136.99
27 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$182.99

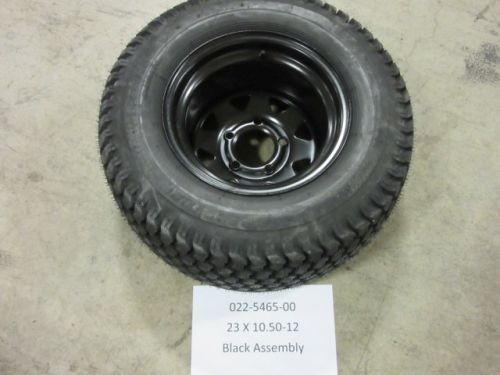

28 022-5465-00 022-5465-00 - 23 x 10.50 -12 Black Assy
$319.99
29 050-2077-00 050-2077-00 - 5 Bolt Hub Kit (See Models Used On For Details)
$102.71
30 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
32 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
33 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
34 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$236.99
35 022-3010-00 022-3010-00 - 23x8.50-12 Tire Assembly-Black
$247.99
36 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
