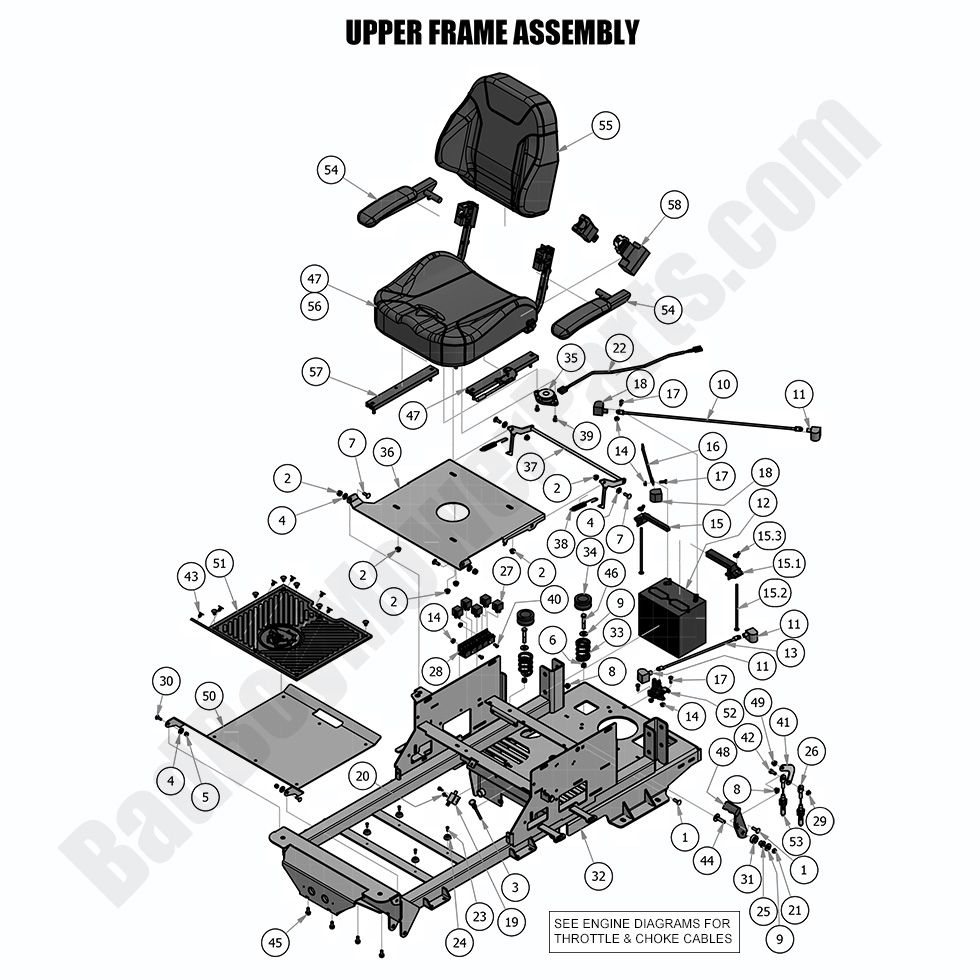

2018 Maverick - Upper Frame Assembly

2018 Maverick - Upper Frame Assembly

If you need a 2018 Maverick Upper Frame Assembly, BadBoyMowerParts.com is your go-to source for high-quality replacements. The upper frame is a crucial part of your mower’s structure, and we carry a range of parts designed to restore its integrity. From the frame itself to the necessary reinforcement components, we have what you need. Our site features Bad Boy Mower Part Diagrams that help you easily identify the parts that need replacement. We’re committed to providing only the best Bad Boy Mower Parts that are built to last. You can also find a wide selection of Bad Boy Lawn Mower Parts to ensure that every part of your mower is working optimally. Plus, when you order from us, you’ll enjoy Free Shipping On Orders Over $100, saving you money on your purchases. Visit BadBoyMowerParts.com to shop for your 2018 Maverick Upper Frame Assembly and keep your mower running strong.

Bad Boy Mower Parts Lookup

2018 Maverick - Upper Frame Assembly
  Position Number SKU Product Title Price
1 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
5 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
6 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
7 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
8 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
11 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
13 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
14 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
15.1 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
15.2 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
15.3 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
16 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
17 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
18 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
19 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
20 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
21 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
22 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
23 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
24 029-4010-00 029-4010-00 - Button Bumper
$2.99
25 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
26 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
27 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
28 086-3050-17 086-3050-17 - 2010-2018 CZT/ZT/Maverick/Comp. Outlaw & 2016-2018 MZ/MZ Magnum Complete Harness
$299.99
29 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
30 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
31 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
32 070-5490-18 070-5490-18 - 2018-2020 Maverick Frame
$1099.99
33 034-8045-00 034-8045-00 - Seat Spring
$20.49
34 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
35 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
36 026-1016-00 026-1016-00 - Seat Plate
$102.11
37 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
38 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
39 030-7041-00 030-7041-00 - 1/4-20x1/2 HWH Bolt Slot Type
$2.99
40 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
41 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72
42 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
43 040-6090-00 040-6090-00 - Ratchet Fastener - Floorboard (obsolete)
use part #040-6080-00
$2.99
44 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
45 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
46 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
47 071-5080-17 071-5080-17 - 2017-2018 Maverick Seat (obsolete)
use part #071-5080-18
$599.99
48 069-1050-00 069-1050-00 - Brake Handle Cam Over (See Models Used On For Details)
$18.45
48a 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
49 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
50 079-3470-18 079-3470-18 - Floor Panel 2018-2024 Maverick, 2021-2024 ZT Elite
$106.99
51 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48
52 108-0001-00 108-0001-00 - Solenoid
$29.41
53 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
54 071-2054-00 071-2054-00 - Arm Rest Kit (See Models Used On For Details) (obsolete)
use part #071-2119-00
$139.99
55 071-2052-00 071-2052-00 - Back Cover For 071-5080-17
$132.68
56 071-2053-00 071-2053-00 - Maverick Seat Cover 071-5080-17
$149.99
57 071-5015-00 071-5015-00 - Seat Rails
$93.69
58 071-5083-00 071-5083-00 - Seat Belt (See Models Used On For Details)
$106.14
