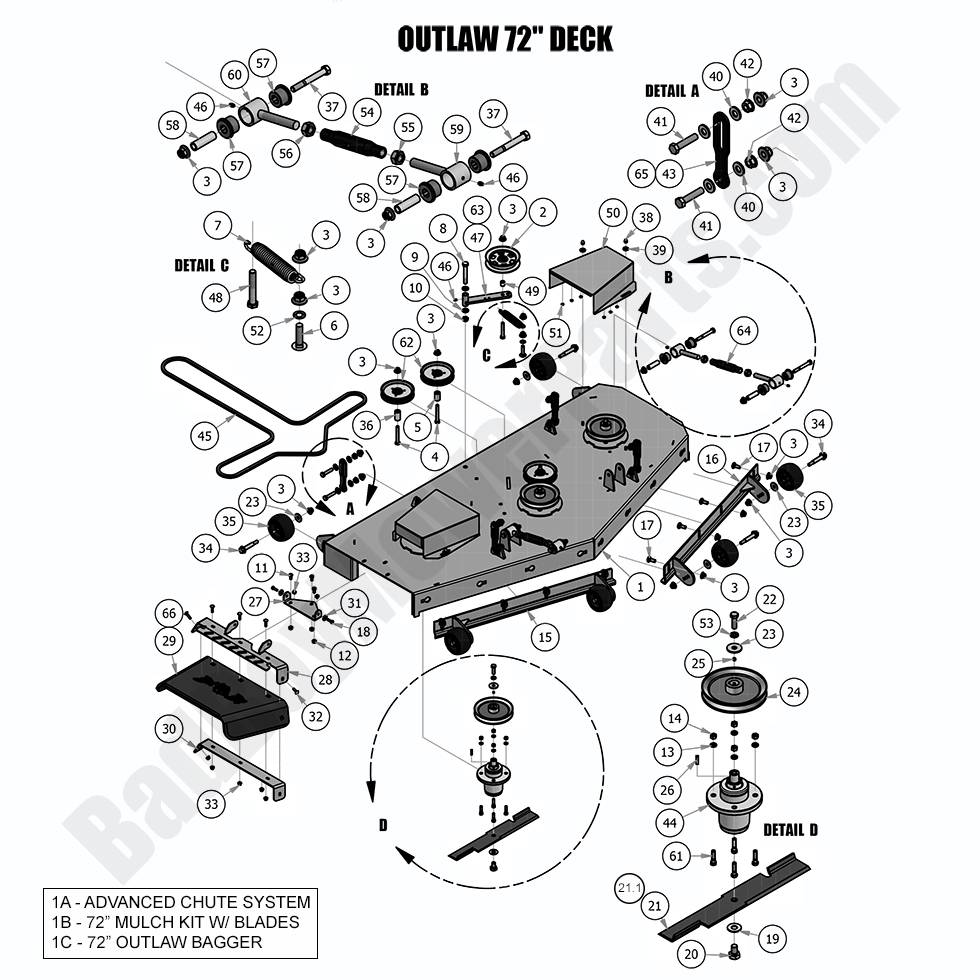

2018 Outlaw & Outlaw Extreme - 72" Deck Assembly

2018 Outlaw & Outlaw Extreme - 72" Deck Assembly

The 2018 Outlaw & Outlaw Extreme 72" Deck Assembly provides superior cutting power for large areas, but keeping it in top shape requires reliable Bad Boy Mower Parts from BadBoyMowerParts.com. Whether you need new spindles, pulleys, blades, or deck belts, our inventory has everything required for maintenance and repairs. With our Bad Boy Mower Part Diagrams, locating the right parts is easy and stress-free. In addition to deck components, we offer a complete selection of Bad Boy Lawn Mower Parts to maintain the overall performance of your mower. Shopping Bad Boy Parts Online ensures a hassle-free experience, and with Free Shipping On Orders Over $100, you save money while keeping your deck in great shape. Extend the life of your 2018 Outlaw & Outlaw Extreme 72" Deck Assembly with premium parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Outlaw & Outlaw Extreme - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0272-50 210-0272-50 - 2017-2020 72" Mulch Kit Assembly w/Blades (See Models Used On)
$318.45
1 060-7250-00 060-7250-00 - 2015-2018 72" Outlaw/XP Deck Shell
$1199.99
2 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
5 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
6 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
7 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
8 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
11 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
12 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
13 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 060-7211-00 060-7211-00 - 72" Deck Adjustable Front (Right Gate) (See Models Used On For Detail)
$103.99
16 060-7210-00 060-7210-00 - 72" Deck Adjustable Front (Left Gate) (See Models Used On For Detail)
$103.99
17 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
18 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
19 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
20 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
21.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
21 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
22 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
25 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
26 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
27 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
28 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
29 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
30 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
31 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
32 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
33 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
34 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
35A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
35 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
36 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
37 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
38 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
39 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
40 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
41 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
42 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
43 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
44 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
45 041-0202-00 041-0202-00 - B202 Deck Belt for 72" (See Models Used On for Details)
$109.40
46 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
47 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
48 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
49 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
50 014-7204-00 014-7204-00 - 72" Spindle Cover (See Models Used On For Details)
$42.58
51 058-6000-00 058-6000-00 - Black, Round Stick-On Rubber
$2.99
52 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
54 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
55 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
56 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
57 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
58 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
59 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
60 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
61 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
62 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
63 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
64 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
65 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
66 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
