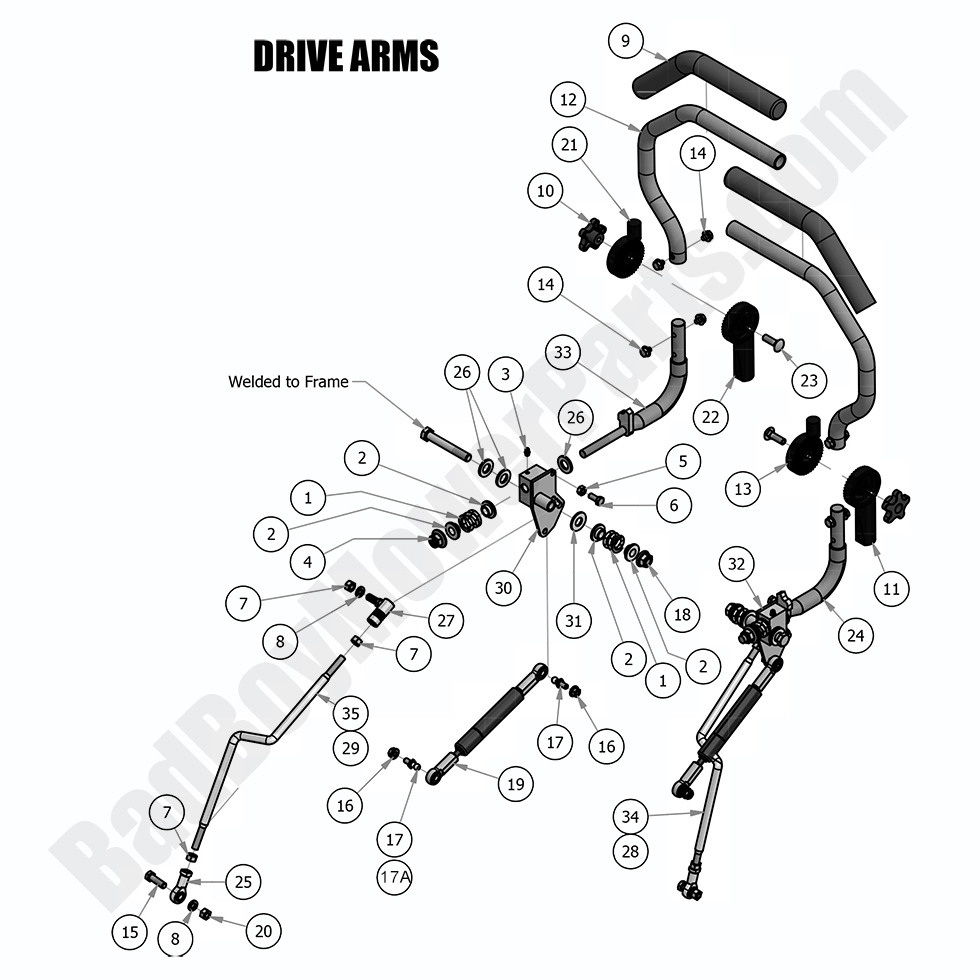

2018 Outlaw & Outlaw Extreme - Drive Arms

2018 Outlaw & Outlaw Extreme - Drive Arms

For smooth steering and maneuverability, the 2018 Outlaw & Outlaw Extreme Drive Arms must be kept in excellent condition. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including replacement drive arms, bushings, and control linkages, to ensure top performance. Our Bad Boy Mower Part Diagrams simplify finding the right components for your mower. In addition to drive arm components, we stock a vast range of Bad Boy Lawn Mower Parts to keep your mower running smoothly. Shopping Bad Boy Parts Online is effortless, and with Free Shipping On Orders Over $100, you can save while getting the parts you need. Maintain your 2018 Outlaw & Outlaw Extreme Drive Arms with durable replacements from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Outlaw & Outlaw Extreme - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
6 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
8 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
10 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
11 031-9015-70 031-9015-70 - Right Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
12 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
12a 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
12b 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
13 031-9016-70 031-9016-70 - Right Upper Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
14 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
15 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
17A 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
17 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
18 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
19 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
20 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
21 031-9017-70 031-9017-70 - Left Upper Steering Arm Adjuster-Black (See Models Used On For Details)
$53.24
22 031-9014-70 031-9014-70 - Left Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
23 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
24 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
25 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
28 035-2110-00 035-2110-00 - 2013-2014, 2018 Outlaw/Extreme Push Rod-Right
$36.08
29 035-2100-00 035-2100-00 - 2013-2014, 2018 Outlaw/Extreme Push Rod-Left
$36.08
30 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
31 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
32 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
33 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
34 035-0075-00 035-0075-00 - 2015-2018 Outlaw/Outlaw Extreme Right Push Rod
$26.70
35 035-0050-00 035-0050-00 - 2015-2018 Outlaw/Outlaw Extreme Left Push Rod
$35.43
